Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | DC3-200 |
Product Description
Introduction:

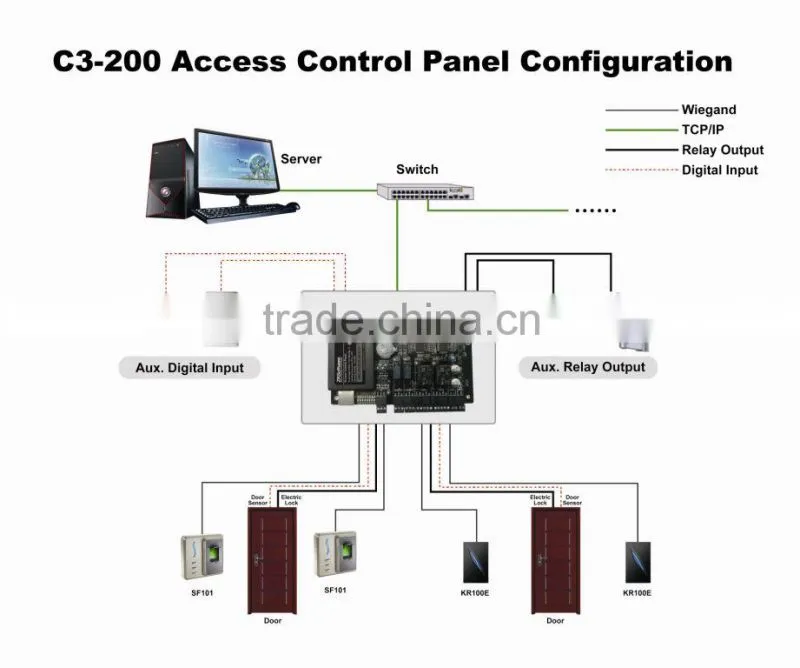

Our access control DC3-100/200/400 are built on flexible, open technology to provide management, real-time monitoring , and control of your access control system—all from a browser, with no additional software to install. Our secure Web-hosted infrastructure and centralized online administration reduce your IT costs and allow you to easily manage all of your access points in a single location. C3-200’s versatile design features take care of present and future needs with ease and efficiency. It is one of the most rugged and reliable controllers on the market, with a multitude of built-in features. The DC3-200 can communicate at 38.4 Kbps via RS-485 configuration or Ethernet TCP/IP networks. It can store up to 30,000 cardholders. SDK (Software Development Kit) is available for the customer to integrate the controller into existing access control software or to develop new software.
Features:
- There are over-current protection, over-voltage protection, reversal protection for the power supply and all the input and output terminal.
- Multiple hardware protection measure
- Integration with Other Security Systems
- C3-200 can be integrated with other security systems such as CCTV, fire alarm, BAS(building automation system) and other systems to configure total security system.
- Supports different wiegand reader
- The controller support different wiegand format, and can connect to different reader, including ID card reader and M1 card reader
- Input/Output Ports to Control Doors
- Connect with variety of sensors, alarms, exit buttons, electric lock and other devices.
- Variety of Communication Function
- Using either serial or TCP/IP communication, it provides reliable network system
- B/S structure software
- It is easy to manage the system by browser from client PC. There is no need to install software on each client.
- Normal open after first punch card can be setup
- Real-time Monitoring of Door status
- Using the management software, it allows real-time monitoring and control of door opening and closing of the whole system.
- Simple Access Control System Configuration
- Interlock function
- Link different doors with special logic that one door is Open, others should be closed.
- Multi-card operation
- This function is used to manage visitors or to manage some special high secure place. The doors are opened when appointed number registered cards are read together.
- Anti-Passback
- Duress Mode
- SDK available
- The system integrator can use the SDK to integrate the hardware into their existing access control software system or to develop a new software.
Specification:
Model | DC3-200 |
CPU | 32bit MIPS CPU |
RAM | 32M bits |
Flash Memory | 256M bits |
Card Capacity | 30,000 |
Event Buffer | 100,000 |
Power / Current | DC 9.6V-14.4V, Rated Max.1A |
Wiegand Reader Port | 4ea (26bit Wiegand, 8bit Burst for PIN) |
Communication | RS485, TCP/IP |
Baud Rate | 38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable) |
Input Port |
6ea (Exit Button#1, Exit Button#2, Door Sensor#1, Door Sensor#2, Aux#1, Aux#2) |
Output Port | 2ea (2 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC) |
2ea (2 Aux FORM-C Relay Output, SPDT 2A@30VDC) | |
LED Indicator | Yes, LED indication for communication, power, status and punch card |
Operating Temperature | 0°to +55°C |
Operating Humidity | 10% to 80% relative humidity non-condensing |
Dimension (H*W*D)mm | 160(W)*106(H)(single board ) 345(W)*275(H)*70(D)(with power supply and metal box) |
Certification | CE, FCC |
