TCP/IP IE Webserver 4 Door Access Controller
Product Introduction:
The Access Control Panel provide the solution for powerful combinations of access control and alarm monitoring within off-line networks. The user-friendly Access software programs the system within a few minutes, from a non-dedicated PC. Access Software provides numerous access control and alarm monitoring features: expiry date for clubs, automatic activation, interlock between two doors, time zones, supervision, anti-passback, activity reports... Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code... Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.
Parameter index:
| Product Parameter | Parameter Description |
| PCB board size | 160mm long * 106mm wide |
| Case Size | 273mm * 228mm * 65mm |
| Power Supply | 12VDC 4-7A |
| Circuit board power consumption | less than 100mA |
| Reader Input Format | Wiegand 26 |
| Means of communication | TCP/IP 10M/100M self adaptive, Webserver |
| Function Description | can control two doors, enter via card swiping and exit via card swipping or button |
| Quantity of reader | 4pcs |
| Control gate output relay | 4pair |
| Open delay time | 1-600 seconds adjustable |
| Maximum number of connections | No limite |
| Operating temperature | -40 to 70 degrees Celsius |
| Run Humidity | 10-90% RH, non-condensing |
| Weight | 2.1kg |
| Signal output communication format and baud rate | Support LAN,Intranet, fix Ipinternet WAN |
| User registration card quantity | 20,000 cards Permissions, WEBServer Supported |
| Record the number of offline storage | 100,000 records |
| Power failure protection measures | high-speed flash memory design, and never lose data |
| Max distance between reader to the controller | 100 meters, suggest within 80 meters |
| Max distance for the bus line | Depends on network cover area |
| Max distance between controller to the PC | No limite |

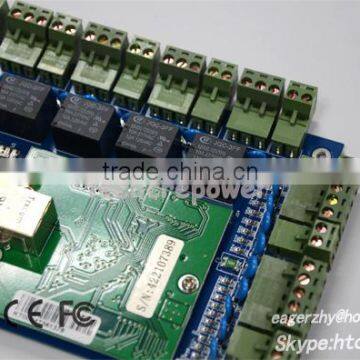

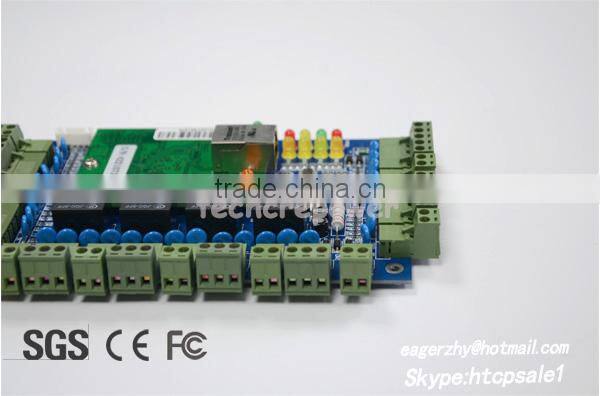

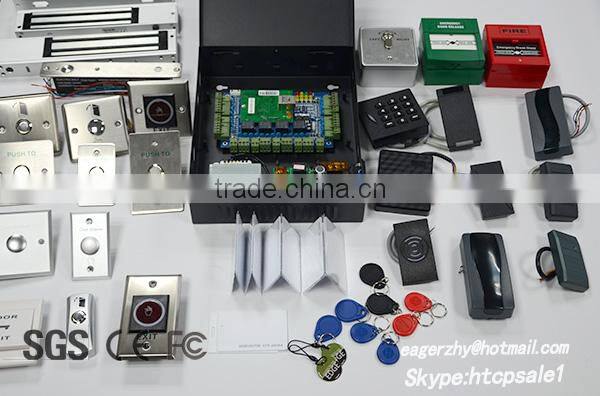

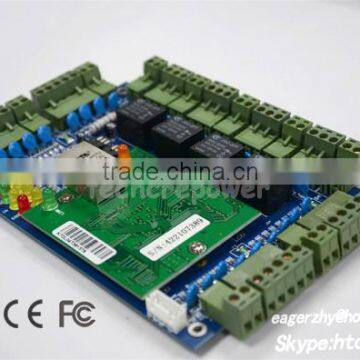

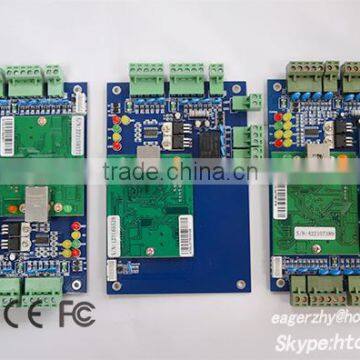

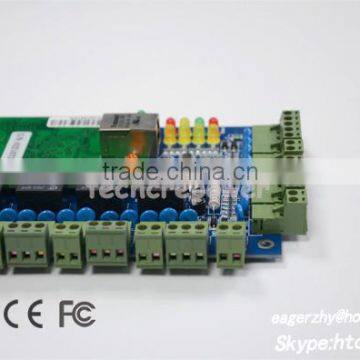

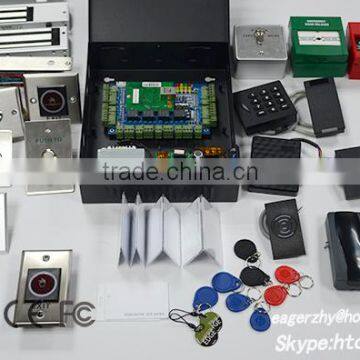

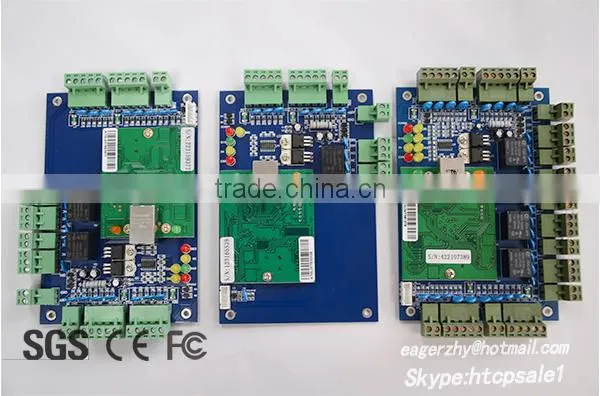

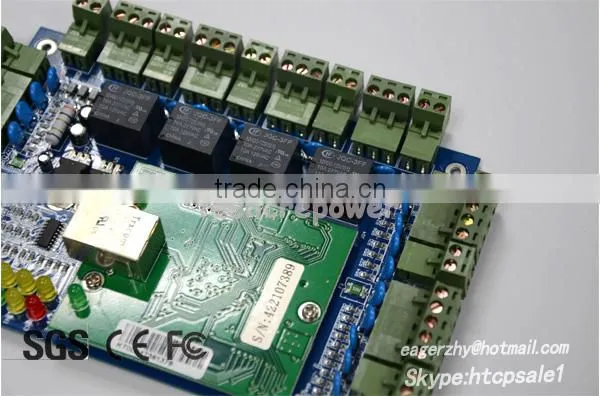

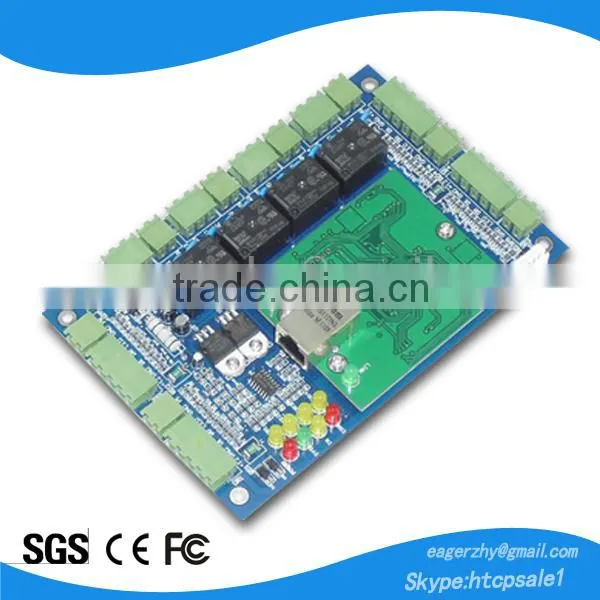

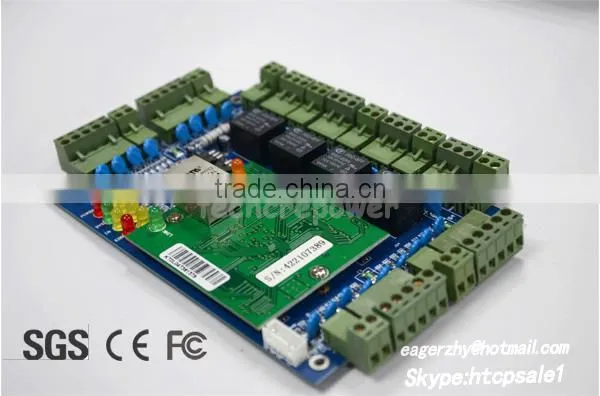

Product Photo

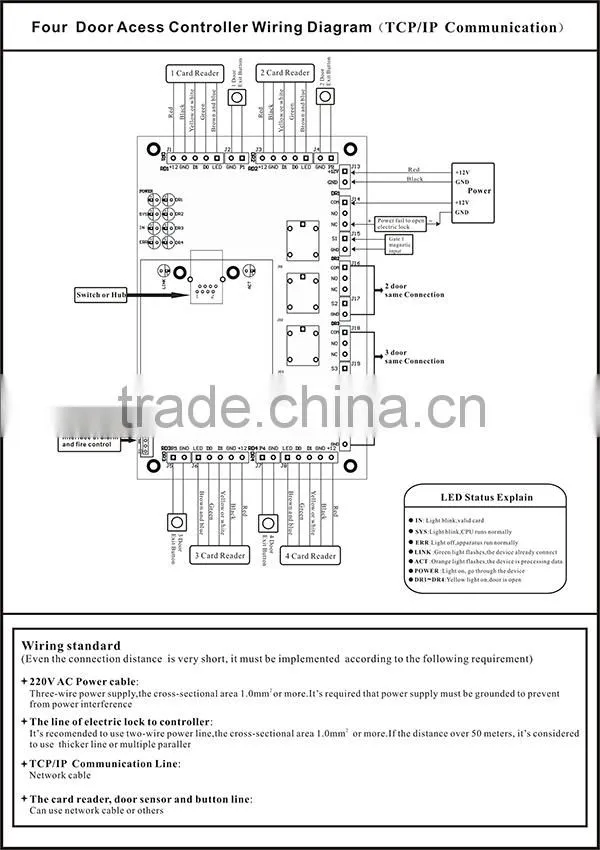

Solution Wiring Diagram
Product Certification
Our Factory
Our Advantage
1. Original High Quality Products:
All of our products are Original High Quality Products, We have strict quality control system, they are 100% tested before factory,
we don’t sell products with only low prices.
2. Professional Technical Team:
We can offer comprehensive solution for your projects.
We can offer detailed pre-sales requirements analysis and guide.
We can offer professional remotely technical support for problems.
3. Flexible Customization: We can customize software, firmware for customers requirements.
4. OEM,ODM service: We can design and produce machines with your own logo.
5. Good Service: We treat clients as good friend.
6. Special offers: We have special offers for long-term cooperation clients.
Payment Terms
1. Paypal or Escrow for small sample orders
2. T/T (Telegraphic Transfer) or Western Union / Moneygram
3. L/C(Letter of Credit) for high value orders
4. Cash for face to face business
Shippment Method
1. International Express(DHL, TNT, Fedex, UPS, EMS, Aramex), take about 3-7 days
2. International Airline, take about 5-15 days differently.
3. International Sea Shipping, slow but cheap for heavy goods, take about 10-50 days differently.
4. by POST , slow but cheap for small package, take 10-60 days.
Product Warranty
We provide 1~2 years warranty from the date of delivery but lifetime technical support.
Contact us
Thanks for your visiting! If you are interested in our products or have any question, pls contact us online or
click " send " the inquiry, we will reply you promptly!
