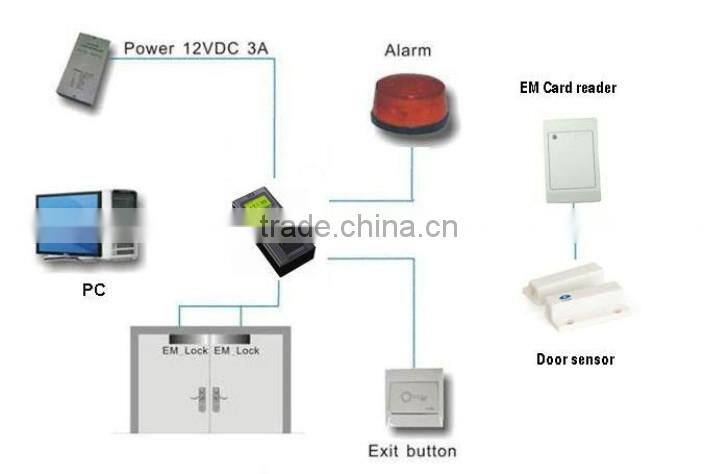

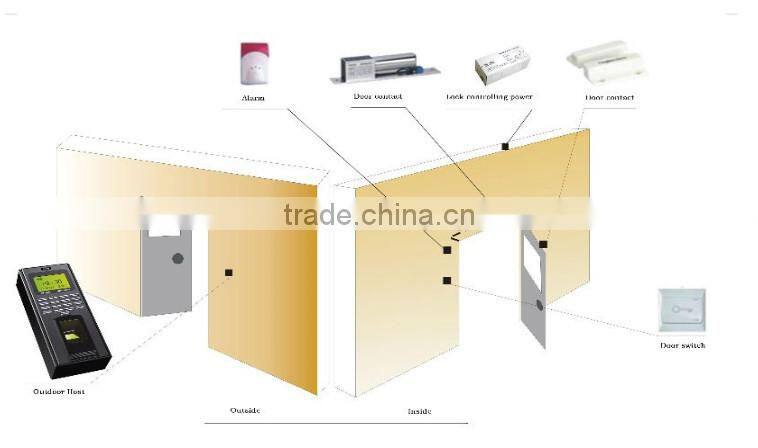

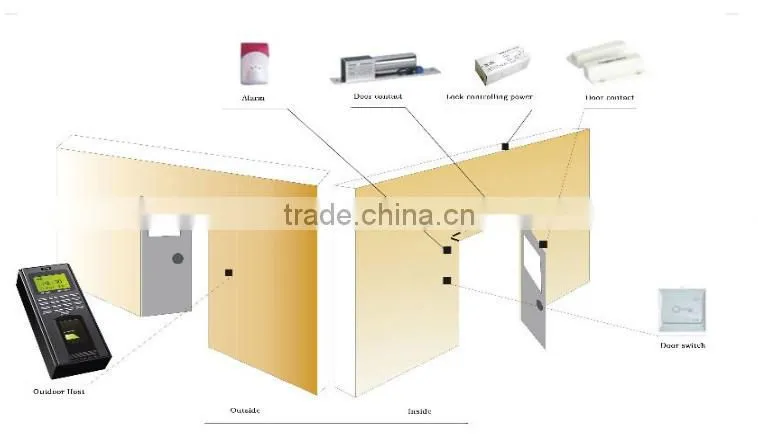

MF-- 830 Fingerprint access control combines function of access control and time and attendance management, it provides safe access control function as well as convenient time attendance management. Fingerprint access control consists of fingerprint access control terminal, electronic lock controller, electronic lock, door sensor, alarm bugle, button, door bell, power, PC machine and the access control management software.
The access control is mainly responsible for user's fingerprint registration and daily identification of entry in and out. As function of access control, it is no need for using key; It can open the door by pressing registration finger.
As function of combining access control and time attendance, it is also can fulfilled by registration finger identification.The function of access control system is set the configuration of the terminal and backup the data of equipment, download time and attendance recorder. It summaries data and generates various kind of statistical report as well as enquiry of in and out record log according to time and attendances rule which setted by administrator. As a result, it can fulfill the function of access control, time attendance.
There are mainly two communication modes between the access control terminal and access control management system, namely, RS485, TCP/IP.
| Product name | MF830 Fingerprint access control |
| Type | MF830 |
| CPU | ARM7 |
| Algorithm | High speed HSA8.0 |
| Fingerprint sensor | Optical |
| Effective collecting area | 16 x 14 mm (6.30 x 5.51 inch) |
| Fingerprint plane acceptance angle | >±45°C |
| Fingerprint capacity | 2000 pieces |
| Logs capacity | 50000 pieces |
| Admin log capacity | 1000 pieces |
| Query logs functions | Yes |
| Verify mode | Fingerprint,Password,Fingerprint+Password,Card(external reader) |
| False reject rate(FRR) | ≤0.01% |
| False accept rate(FAR) | ≤0.0001% |
| Identification time | ≤1S |
| Identification speed | 5000----30000 piece/s |
| Than on the way | 1:N |
| Work on the way | Offline / With machine |
| Voice | High-Definition humanity voice |
| LCD | 128 x 64 big blue background with white characters |
| Language display on LCD | Multilingual |
| Name display on LCD | Yes |
| LED Indicator | Power and status LED light |
| Keypad | 16 Tact switch key presses /a bell switch |
| Communication | RS485 |
| TCP/IP Communication | Yes |
| Real time monitoring | Yes |
| Software support | A1 Access Control Management System |
| Bell interface | Yes |
| Ring | Timing |
| Buzzer | Yes |
| Anti demolition | Yes |
| Alarm | Yes |
| Intimidation alarm function | Yes |
| Access control function | Yes |
| Wiegand interface | Supports standard input and output WG26/WG34 |
| User time zone | Time zone 32 group |
| User time group | Time group 32 group |
| User time section | Time section 32 group |
| The user is valid | Yes |
| Power supply | 12V DC |
| Power | <9W |
| Current | <350mA |
| Quiescent current | 150mA |
| Static strength | <15KV |
| Operational temperature range | 0°C----+45°C |
| Operational humidity range | 20%----60% |
| Storage ambient temperature range | —10°C----+65°C |
| Humidity range storage environment | 20%----80% |
| Machine dimension LxWxH | 180 x 80 x 45 mm (7.08 x 3.15 x 1.77 inch) |
