Home > Transportation > Elevator & Funicular Car > Passenger Elevator > Small Machine Room Energy Saving VVVF Passenger Elevator Residential Lift

Small Machine Room Energy Saving VVVF Passenger Elevator Residential Lift

Name: Small Machine Room Energy Saving VVVF Passenger Elevator Residential Lift
Brand: INTENTEC
SKU: 119045007
Availability: InStock

Small Machine Room Energy Saving VVVF Passenger Elevator Residential Lift thumbnail-1

Small Machine Room Energy Saving VVVF Passenger Elevator Residential Lift photo-1

US$ 10,000 - 15,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Liaoning, China

Brand Name:

INTENTEC

Model Number:

IFP-007

Contact Supplier Request Quote Chat Now

Shenyang Amte Import & Export LLC

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Liaoning, China

Brand Name INTENTEC

Model Number IFP-007

Usage Residential Elevators

Drive Type AC

Elevator Type Passenger Elevators

Small Machine Room energy Saving VVVF Passenger Elevator residential lift

Product Description

Name	Small Machine Room energy Saving VVVF Passenger Elevator residential lift
Capacity	320-1600
Feature	small machine room elevator
Function	residential lift elevator
Package	wooden case
Delivery	within 45 days
Payment	30% T/T Deposit in advance,the balance paid against the B/L copy

Small Home Elevator residential lift Elevator with low cost VVVF control

No.	Rated Load(KG)	Rated Speed (m/min)	Travel Height (mm)	Overhead Height (mm)	Pit Depth(mm)	Maximum number of stops	Maximum floor to floor distance(mm)
1	450	60	Travel≤max. 60	4200	1400	16	2700
2	550-700	60	Travel≤max. 60	4200	1400	16
3		90	Travel≤max. 100	4450	1600	32
4		105	Travel≤max. 100	4600	1700	32
5	750-1050	60	Travel≤max. 60	4200	1400	16
6		90	Travel≤max. 100	4450	1600	32
7		105	Travel≤max. 100	4600	1700	32
8		120	Travel≤max. 140	5100	2050	40
9		150	Travel≤max. 140	5300	2300	40
10	1150-1350	60	Travel≤max. 60	4200	1400	16
11		90	Travel≤max. 100	4450	1600	32
12		105	Travel≤max. 100	4600	1700	32
13		120	Travel≤max. 140	5100	2050	40
14		150	Travel≤max. 140	5300	2300	40
15	1600	60	Travel≤max. 60	4850	1750	16
16		90	Travel≤max. 100	5050	1850	32
17		105	Travel≤max. 100	5100	1950	32
18		120	Travel≤max. 140	5200	2250	40
19		150	Travel≤max. 140	5300	2600	40

Advantages

1.ENERGY CONSERVATION

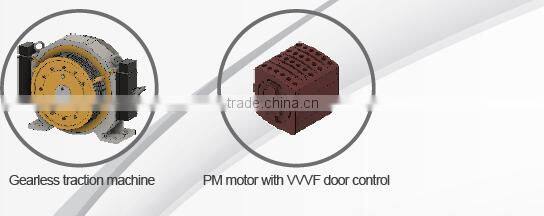

The gear-less traction machine with Permanent Magnet-type synchronous motor(PM motor) conserves energy by improving power efficiency. The PM motor is also used in the drive unit for car doors and a direct drive method is employed to realize improved energy efficiency and smoother door opening and closing motions.

2. ENERGY SAVING FEATURES

Automatic dimming of indication light be used in Small Machine Room energy Saving VVVF Passenger Elevator residential lift

Automatic turn-off of car lighting and fan

Hall and car buttons using LED light be used in Small Machine Room energy Saving VVVF Passenger Elevator residential lift

Regenerative system(Optional) be used in Small Machine Room energy Saving VVVF Passenger Elevator residential lift

Energy saving operation control(Duplex or group control only)

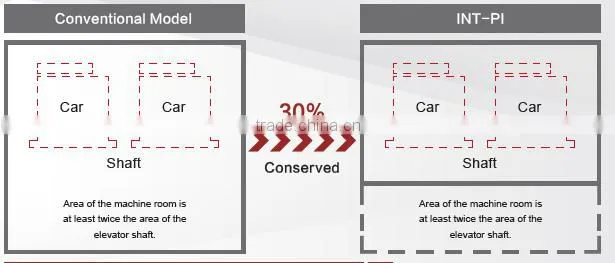

3.SPACE SAVING DESIGN

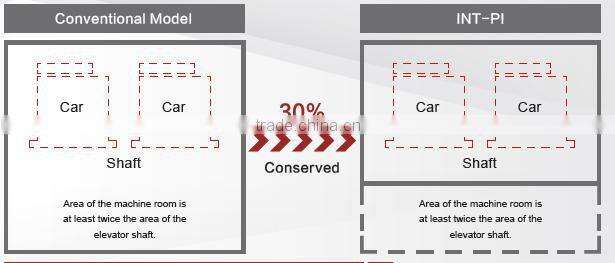

The INT-PI be used in residential elevator lift elevator requires a smaller machine room size through the use of slimmer traction machine, control panel and machine room equipment. This allows flexibility in building design through maximizing the usage of building space.

4. THE HUMAN INTERFACE

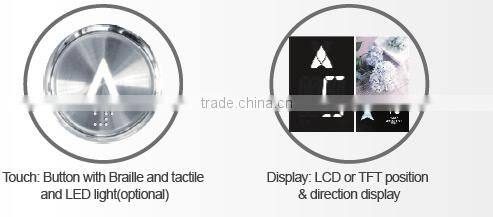

The INT-PI be used in residential elevator lift elevator provides a comfortable ride and appeals to different aspects of the human sense, interface, sight and hearing - by the integration of tactile button, LCD display, voice synthesizer and multi-beam door sensor.
