hoist crane remote controls F23-BB industrial wireless radio crane remote control system

F23-BB industrial wireless radio crane remote control system

F23-BB crane remote control is best for MD electric hoist .easy to operate to keep workers safety

Products Application:

All kind of industrial application such as double speed crane hook ,single speed crane hoist .

and used for the industrial remote control which are under 10 connection

Brief Introduction:

    Transmitter                                  size:216*75*43mm                         weight:315g

     Receiver                                    size:200*165*107mm                      weight:1400g

Specification:

Control distance :                                                  up to 100m

Unique code :                                                        over 4.3billon unique ID codes .

Temperature :                                                        -35°C~+80°C

Enclosure protection class :                                    IP65

Transmitter power:                                                 DC3v

Receiver powder :                                                  AC 380v/ 36v/220V or DC12V/24V

Output capacity:                                                      full sealed relay output with 5 amperes

Standard configuration:

                          One transmitter ;

                          One receiver;

                          One 1m cable connect with receiver

                          One operation and maintain manual .

Products Features:

* 12 single speed push button

* control points are up to 10

*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.

*with the Rotate key switch to guarantee the safety.

*set the internal functions by computer interface

*up/down ,east/west , south/ north push button can be set mutual inhibition or not .

*power button can be set start,speed up,jump strokes, ordinary etc.

*spare 1-4key can be set ordinary, interlock,jump strokes,switch etc.

Certificates:

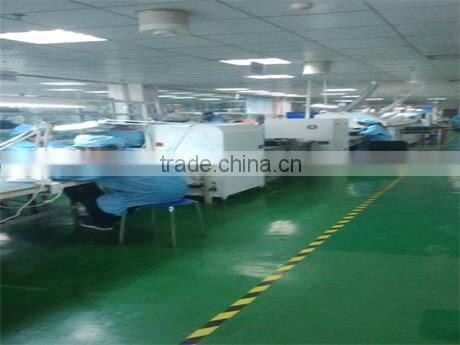

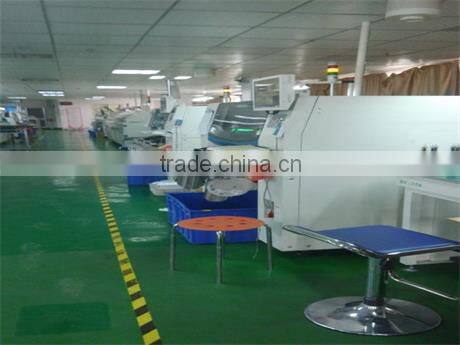

Factory show:

Packing details:

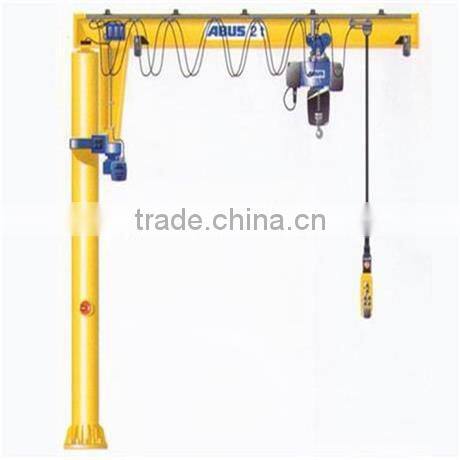

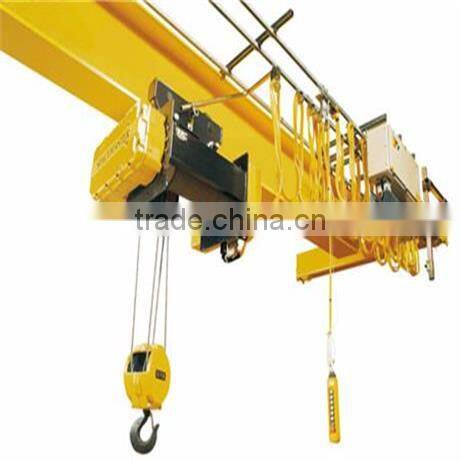

Application:
