F23-A++ 380v/110v/220v MD Electric Chain Hoist Radio Remote Controls Telecrane

F23-A++ 380v/110v/220v MD Electric Chain Hoist Radio Remote Controls Telecrane photo-1
US$ 70 - 90 MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Electronic
Model Number:
F23-A++
Payment & Shipping
Payment Methods:
Port of Shipment:
ZHENGZHOU QINGDAO SHANGHAI BEIJING GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Henan, China
Brand Name Electronic
Model Number F23-A++
Operating Temperature -35°C___+80°C
Max. Current 10A/ Load
Max. Voltage 440V
Brief introduction

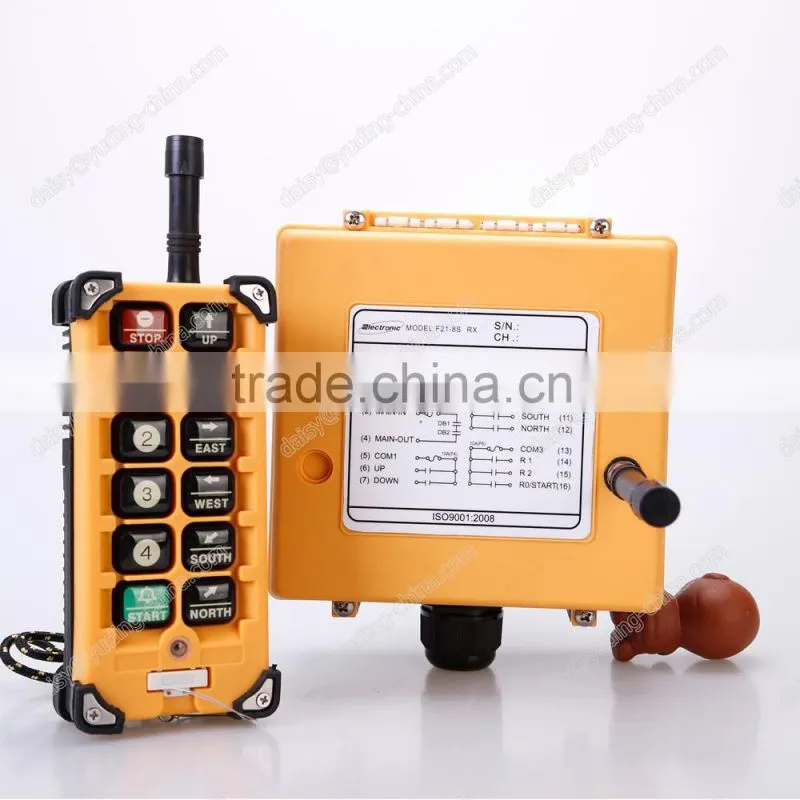

F23-A++ 380v/110v/220v MD Electric Chain Hoist Radio Remote Controls Telecrane

Eight single speed push buttons, 3, 4 buttons are useless.  mainly used on electronic winches, grabs, and other hoist which only need eight control motions. It is small, convenience for store. Easy to operate. 100m control distance make it safety for operator.

Transmitter
Receiver
Dimensions
216*75*43mm
200*165*127mm
Weight
315g
1400g
Meterial
Glass-fiber
Protection level
IP 65
Power supply
DC 3V (2 AA batteries)
AC380V/36V/220V/110V/48V/24V or AC12V/DC12V


Specification
Control distance
Up to 100m
Control Motions
8
Frequency generation
Crystal
Structure
Glass-Fiber
Operation frequency
310.0325-331.165 MHz
Certificates
CE, FCC, ISO9001:2008
Unique code
Over 4.3billon unique ID codes .
Working temperature
-35°C___+80°C
Output capacity
Full sealed relay output with 5 amperes
Frequency bandwidth
200khz
Channel spacing
0.2675Mhz

Features:

* 10 single speed push button (3,4 key are useless)
* control points are up to 8
*With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
*with the Rotate key switch to guarantee the safety.
*set the internal functions by computer interface
*up/down ,east/west , south/ north push button can be set mutual inhibition or not .
*power button can be set start,speed up,jump strokes, ordinary etc.
*spare 1-2 key can be set ordinary, interlock,jump strokes,switch etc.

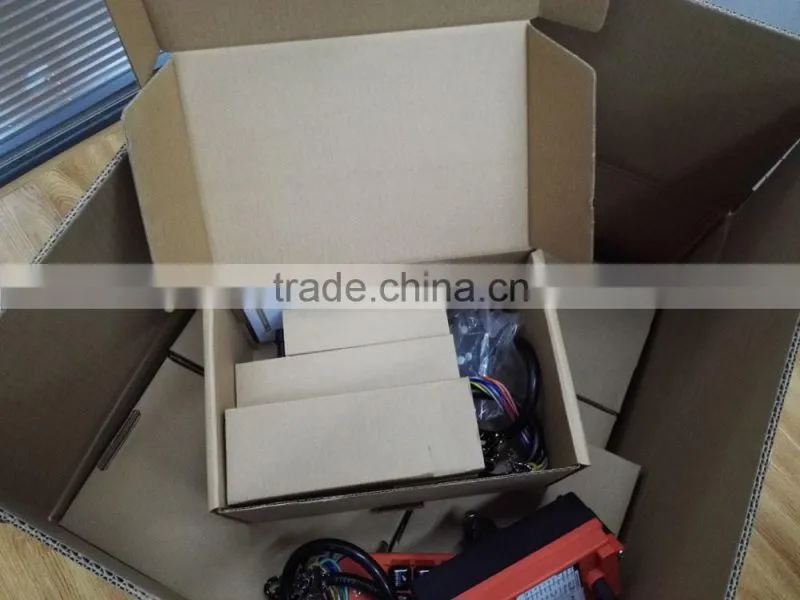

Packing & Delivery

F23-A++ 380v/110v/220v MD Electric Chain Hoist Radio Remote Controls Telecrane

10 set per carton

Carton size: 68*54*38cm
