diese generator low noise power plant
Advantage
1. Diesel silent generator/silent diesel generator/silent diesel genset/small silent diesel generator .
2. 50Hz.1500rpm/ac400V/230V, 3 phase 4 wires. 12kw/15kw20kw/25kw diesel generator .
3. With permanent magent generator alternator.
4. Deepsea or Smartgen controller.
5. XICHAI diesel engine.
Technical Parameter
| Silent Genset Model | GF15XJ | GF18XJ |
| Diesel engine Model | XICHAI /4DW81-23D | XICHAI /4DW91-29D |
| Cooled type | water cooled | water cooled |
| Speed regulating type | mechanical or electrical governor |
mechanical or electrical governor |
| Structure | 4L | 4L |
| Bore x Stroke (mm x mm) | 85x100 | 90x100 |
| Compression ratio | ratio 17:1 | ratio 17:1 |
| Displacement | 2.27 | 2.54 |
| Controller | Smartgen410/ Deepsea4620 (optional) |
Smartgen410/ Deepsea4620 (optional) |
| Circuit breaker | 63A (4 pole) | 63A (4 pole) |
| Rated voltage | 400V/230V | 400V/230V |
| Rated power | 12KW | 15KW |
| Rated capacity | 15KVA | 18.75KVA |
| Max.output power | 13.20KW | 16.5KW |
| Max. output capacity | 16.50KVA | 20.62KVA |
| Rated frequency | 50Hz | 50Hz |
| Rated RPM | 1500rpm | 1500rpm |
| Power factor | COSΦ=0.8 (lag) | COSΦ=0.8 (lag) |
| Fuel (standard) | 0# light diesel (normal temperature) |
0# light diesel (normal temperature) |
| Fuel consumption (100%) | 240g/kW.h | 240g/kW.h |
| Lubricating oil capacity (filter)(L) | 7.8 | 8 |
| Sound (7m@dB) | ≤73dB | ≤73dB |
| Temperature | 40℃ | 40℃ |
| Battery voltage | 12V | 12V |
| Base fuel tank capacity (L) | 48 | 48 |
| Steady state voltage regulation( % ) | ≤ ±5 | ≤ ±5 |
| Voltage fluctuations volatility (% ) | ≤ ±0.5 | ≤ ±0.5 |
| Transient voltage regulation ( % ) | +20 ~ -15 | +20 ~ -15 |
| Voltage steady time (S) | ≤1 | ≤1 |
| Steady state frequency regulation( % ) | ≤±1 | ≤±1 |
| Frequency fluctuation rate (%) | ≤±0.5 | ≤±0.5 |
| Transient frequency regulation (%) | +10 ~ -7 | +10 ~ -7 |
| Frequency steady time (S) | ≤3 | ≤3 |
| Dimension (L x W x H) mm | 1850x850x1060 | 1850x850x1060 |
| Weight (KG) | 630Kg | 750Kg |

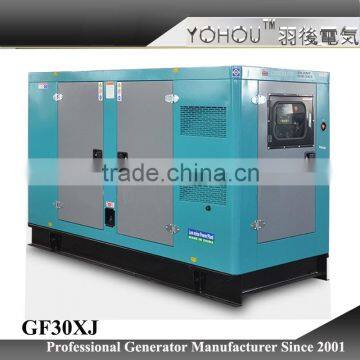

| Silent Genset Model | GF24XJ | GF30XJ |
| Diesel engine Model | XICHAI /4DW92-35D | XICHAI /4DW93-42D |
| Cooled type | water cooled | water cooled |
| Speed regulating type | mechanical or electrical governor |
mechanical or electrical governor |
| Structure | 4L | 4L |
| Bore x Stroke (mm x mm) | 90x100 | 90x100 |
| Compression ratio | ratio 17:1 | ratio 17:1 |
| Displacement | 2.54 | 2.54 |
| Controller | Smartgen410/ Deepsea4620 (optional) |
Smartgen410/ Deepsea4620 (optional) |
| Circuit breaker | 63A (4 pole) | 63A (4 pole) |
| Rated voltage | 400V/230V | 400V/230V |
| Rated power | 20KW | 24KW |
| Rated capacity | 25KVA | 30KVA |
| Max.output power | 22KW | 26.8KW |
| Max. output capacity | 27.50KVA | 31.8KIVA |
| Rated frequency | 50Hz | 50Hz |
| Rated RPM | 1500rpm | 1500rpm |
| Power factor | COSΦ=0.8 (lag) | COSΦ=0.8 (lag) |
| Fuel (standard) | 0# light diesel (normal temperature) |
0# light diesel (normal temperature) |
| Fuel consumption (100%) | 230g/kW.h | 230g/kW.h |
| Lubricating oil capacity (filter)(L) | 8 | 8 |
| Sound (7m@dB) | ≤73dB | ≤73dB |
| Temperature | 40℃ | 40℃ |
| Battery voltage | 12V | 12V |
| Base fuel tank capacity (L) | 48 | 51 |
| Steady state voltage regulation( % ) | ≤ ±5 | ≤ ±5 |
| Voltage fluctuations volatility (% ) | ≤ ±0.5 | ≤ ±0.5 |
| Transient voltage regulation ( % ) | +20 ~ -15 | +20 ~ -15 |
| Voltage steady time (S) | ≤1 | ≤1 |
| Steady state frequency regulation( % ) | ≤±1 | ≤±1 |
| Frequency fluctuation rate (%) | ≤±0.5 | ≤±0.5 |
| Transient frequency regulation (%) | +10 ~ -7 | +10 ~ -7 |
| Frequency steady time (S) | ≤3 | ≤3 |
| Dimension (L x W x H) mm | 1850x850x1060 | 1950x850x1060 |
| Weight (KG) | 850Kg | 850Kg |
Chongqing Zhiren Electric Equipment Co., Ltd. was established in 2001. Our company specialize in researching, developing, manufacturing and selling gasoline generator, diesel generator, 1-100kW rare-earth permanent magnet generator, 100 200kW diesel generator set, silent generator, portable generator, movable generator, welder, welding machine and related products.
Our products are widely used for agriculture, telecom, railway, bank, chemical, petroleum, military industry and so on.
Located in Jinfeng Electronic Industry Park, Jiulongpo District, Chongqing, our company covers an area of 50 acre, with 25000 square meter stand modern workshops, office building, QC center, R&D center.
There are more than 150 employees in our company, including 10 engineers, 5 experts, professional sales team and more than 100 skilled workers. We invested in introducing advance online testing equipment to insure perfect quality control system.
Our company dedicate the best products and the best service to customers all over world.
Every year we export products to Peru, Argentina, Brazil, Egypt, Southeast Asia, Middle East and other countries and regions.
Our mission is “ Customer first, Quality first”! We sincerely welcome customers from home and aboard to visit our company and cooperate with us!
Are you a factory or a trading company?
We are a professional and leading manufacturer.
Where are you company located in?
Our company is located in Jinfeng Electronic Industry Park, Jiulongpo District, Chongqing City, adjoins Chongqing Xiyong Bonded Zone.
What products are you produce?
We specialize in gasoline generator, gasoline generator, silent generator, movable generator, welder and related products.
What’s your annual capacity?
About 250,000 units.
What’s the MOQ?
Generally speaking, MOQ is 10 sets; we advise you to purchase 1*20GP or 1*40HQ.
What’s the delivery time?
About 21 days. It’s up to the quantities you buy.
