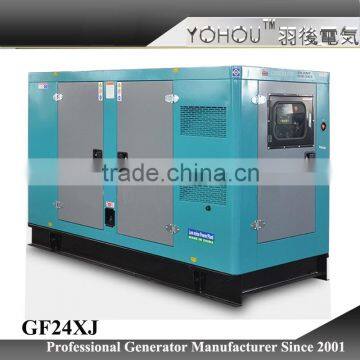

12kw 15kw 20kw 25kw ac 400v/230v Silent Diesel Generator Price for Tanzania
Negotiable
MOQ: 10 Units (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
YOHOU
Model Number:
GF15XJ GF18XJ GF24XJ GF30XJ
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diesel Type AC Single/3 Phase 230v/400v PMG Trailer Gen SetsNegotiableMOQ: 1 Unit -
Silent Three Phase Diesel Generator 440vNegotiableMOQ: 10 Units
-
Harga Genset SilentNegotiableMOQ: 10 Units
-
15.5 Kva Diesel Generator Small Portable SilentNegotiableMOQ: 10 Units
-
Water Cooled AC 3 Phase 230V/400V 50Hz Diesel Low Noise Power Generating SetsNegotiableMOQ: 10 Units
Place of Origin
Chongqing, China
Brand Name
YOHOU
Model Number
GF15XJ GF18XJ GF24XJ GF30XJ
Output Type
AC Three Phase
Speed
1500rpm
Frequency
50Hz
Rated Power
12kw 15kw 20kw 25kw
Rated Voltage
AC 400V/230V
12kw 15kw 20kw 25kw ac 400v/230v silent diesel generator price for tanzania
Product Description
Advantage
silent diesel generator price for tanzania
Basic Information:
1. 100% Copper wire permanent magnet alternator.
2. Powered by XICHAI diesel engine.
3. AC 3 phase diesel generator for sale philippines.
Technical Parameter
| Silent Gnenset Model | GF15XJ | GF18XJ | GF24XJ | GF30XJ |
| Diesel engine Model | XICHAI /4DW81-23D | XICHAI /4DW91-29D | XICHAI /4DW92-35D | XICHAI /4DW93-42D |
| Cooled type | water cooled | water cooled | water cooled | water cooled |
| Speed regulating type | mechanical or electrical governor | mechanical or electrical governor | mechanical or electrical governor | mechanical or electrical governor |
| Structure | 4L | 4L | 4L | 4L |
| Bore*Stroke (mm*mm) | 85x100 | 90x100 | 90x100 | 90x100 |
| Compression ratio | ratio 17:1 | ratio 17:1 | ratio 17:1 | ratio 17:1 |
| Displacement | 2.27 | 2.54 | 2.54 | 2.54 |
| Controller | Smartgen410/ Deepsea4620 (optional) | Smartgen410/ Deepsea4620 (optional) | Smartgen410/ Deepsea4620 (optional) | Smartgen410/ Deepsea4620 (optional) |
| Circuit breaker | 63A (4 pole) | 63A (4 pole) | 63A (4 pole) | 63A (4 pole) |
| Rated voltage | 400V/230V | 400V/230V | 400V/230V | 400V/230V |
| Rated power | 12KW | 15KW | 20KW | 24KW |
| Rated capacity | 15KVA | 18.75KVA | 25KVA | 30KVA |
| Max.output power | 13.20KW | 16.5KW | 22KW | 26.8KW |
| Max. output capacity | 16.50KVA | 20.62KVA | 27.50KVA | 31.8KIVA |
| Rated frequency | 50Hz | 50Hz | 50Hz | 50Hz |
| Rated RPM | 1500rpm | 1500rpm | 1500rpm | 1500rpm |
| Power factor | COSΦ=0.8 (lag) | COSΦ=0.8 (lag) | COSΦ=0.8 (lag) | COSΦ=0.8 (lag) |
| Fuel (standard) | 0# light diesel (normal temperature) | 0# light diesel (normal temperature) | 0# light diesel (normal temperature) | 0# light diesel (normal temperature) |
| Fuel consumption (100%) | 240g/kW.h | 240g/kW.h | 230g/kW.h | 230g/kW.h |
| Lubricating oilcapacity (filter)(L) | 7.8 | 8 | 8 | 8 |
| Sound (7m@dB) | ≤73dB | ≤73dB | ≤73dB | ≤73dB |
| Temperature | 40℃ | 40℃ | 40℃ | 40℃ |
| Battery voltage | 12V | 12V | 12V | 12V |
| Base fuel tank capacity (L) | 48 | 48 | 48 | 51 |
| Steady state voltage regulation( % ) | ≤ ±5 | ≤ ±5 | ≤ ±5 | ≤ ±5 |
| Voltage fluctuations volatility (% ) | ≤ ±0.5 | ≤ ±0.5 | ≤ ±0.5 | ≤ ±0.5 |
| Transient voltage regulation ( % ) | +20 ~ -15 | +20 ~ -15 | +20 ~ -15 | +20 ~ -15 |
| Voltage stedy time (S) | ≤1 | ≤1 | ≤1 | ≤1 |
| Steady state frequency regulation( % ) | ≤±1 | ≤±1 | ≤±1 | ≤±1 |
| Frequency fluctuation rate (%) | ≤±0.5 | ≤±0.5 | ≤±0.5 | ≤±0.5 |
| Transient frequency regulation (%) | +10 ~ -7 | +10 ~ -7 | +10 ~ -7 | +10 ~ -7 |
| Frequency steady time (S) | ≤3 | ≤3 | ≤3 | ≤3 |
| Dimension (L* W * H) mm | 1850x850x1060 | 1850x850x1060 | 1850x850x1060 | 1950x850x1060 |
| Weight (KG) | 630Kg | 750Kg | 850Kg | 850Kg |
Other Diesel Generator Set Model Option
| Water cooled Diesel Genset Series | ||||||
| Diesel Genset Model | Engine Model | Rated Power (KW) | Max. Power (KVA) | Controller (optional) | Link Site | |
| GF44YJ | YUCHAI YC4D60-D21 | 40KW | 50KVA | Deep sea 4620 or Smartgen410 | click here | |
| GF55YJ | YUCHAI YC4D85Z-D20 | 50KW | 60KVA | Deep sea 4620 or Smartgen410 | click here | |
| GF66YJ | YUCHAI YC6B100-D20 | 60KW | 75KVA | Deep sea 4620 or Smartgen410 | click here | |
| GF85YJ | YUCHAI YC6B135Z-D20 | 75KW | 94KVA | Deep sea 4620 or Smartgen410 | click here | |
| GF100YJ | YUCHAI YC6B155L-D21 | 90KW | 112KVA | Deep sea 4620 or Smartgen410 | click here | |
| GF132YJ | YUCHAI YC6B180L-D20 | 120KW | 150KVA | Deep sea 4620 or Smartgen410 | click here | |
Packaging & Shipping
Our Services
1. Supply spare parts.
2. one year warranty.
FAQ
Are you a factory or a trading company?
We are a professional and leading manufacturer.
Where are you company located in?
Our company is located in Jinfeng Electronic Industry Park, Jiulongpo District, Chongqing City,
adjoins Chongqing Xiyong Bonded Zone.
What products are you produce?
We specialize in gasoline generator, gasoline generator, silent generator, movable generator, welder and related products.
What’s your annual capacity?
About 250,000 units.
What’s the MOQ?
Generally speaking, MOQ is 10 sets; we advise you to purchase 1*20GP or 1*40HQ.
What’s the delivery time?
About 15 days. It’s up to the quantities you buy.
