Home > Industrial Equipment & Components > Welding Equipment > Arc Welder > 50A to 200A 1.2mm to 5mm Portable Aluminum Welding Machine
50A to 200A 1.2mm to 5mm Portable Aluminum Welding Machine
US$ 400 - 800
MOQ: 5 Sets
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Chongqing, China
Brand Name:
Zhiren
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
50A to 200A DC Miller Welding Machine PricesUS$ 800 - 2,000MOQ: 10 Sets -
200A Mig Welder 220V DC OutputUS$ 400 - 800MOQ: 5 Sets
-
720 HZ Portable Spot Welding Machine for Tracks Pipelines RailsUS$ 800 - 2,000MOQ: 10 Sets
-
220V 200A DC Gasoline Arc WelderUS$ 400 - 800MOQ: 5 Sets
-
Portable DC 220V Internal Seam Welding Machine With Gasoline EngineUS$ 800 - 2,000MOQ: 10 Sets
Condition
New
Place of Origin
Chongqing, China
Brand Name
Zhiren
Model Number
AXQ1-200-1
Pulse Frequency
720HZ
Pilot Arc Current
50-200 A
Rated Duty Cycle
100
Motor Type
DC Motor
Dimensions
655x670x655 mm
Usage
tracks, rails, pipes etc
Voltage
220V
Power(W)
3KW
Certification
CCC
Warranty
2 years
After-sales Service Provided
No overseas service provided

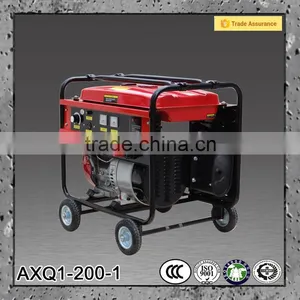

50A to 200A 1.2mm to 5mm portable aluminum welding machine
Product Description
Unique Features:
- Power by Kohler and B&S gasoline engines, reliable quality and stable performance.
- Equipped with intermediate frequency generator,100% duty cycle to guarantee 24-hour continuous operation.
- Designed with big & small copper windings, guarantee stable output of both big current and small current.
- With magnetic induction control system, effectively avoid electrical component deterioration and lower failure rate.
- With 220V DC standby power, suitable for field operation including grinding and lighting etc.
- With initiating excitation circuit, can avoid loss of magnet.including grinding and lighting etc.
Technical Specification:

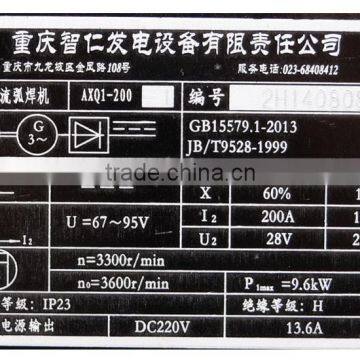

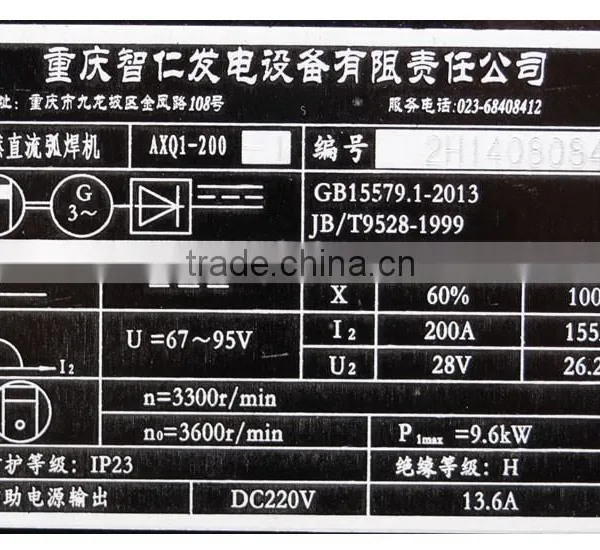

| 50A to 200A 1.2mm to 5mm portable aluminum welding machine |
| Welder | Model | AXQ1-200 | AXQ1-200-1 |
| No-load Voltage (V) | 60-85 | 60-85 | |
| Rated-load Voltage (V) | 22-28 | 22-28 | |
| Range of Current(A) | 50-200 | 50-200 | |
| Welding Rod Diameter (mm) | 1.2-5 | 1.2-5 | |
| Welder type | Hand welding | Hand welding | |
| Duty cycle (%) | 100 | 100 | |
| Standby power Voltage(V) | DC220 | DC220 | |
| Standby power Power (kW) | 3 | 3 | |
| Engine | Engine Model | KOHLER CH440 | KOHLER CH440 |
| Valve Type | OHV | OHV | |
| Horse Power (HP) | 14 | ||
| Ignition system | CDI | CDI | |
| Fuel Tank Capacity (L) | 6.5 | 25 | |
| Fuel Consumption (g/HP.hr) | 228 | 228 | |
| Oil Alert system | YES | YES | |
| whole set | Starting system | Electric | Electric |
| Insulation Class | H | H | |
| Protection Class | IP21 | IP21 | |
| L×W×H (mm) | 655×670×655 | 680×670×700 | |
| Net weight (KG) | 65 | 66 |
Product Uses
Application Scope:

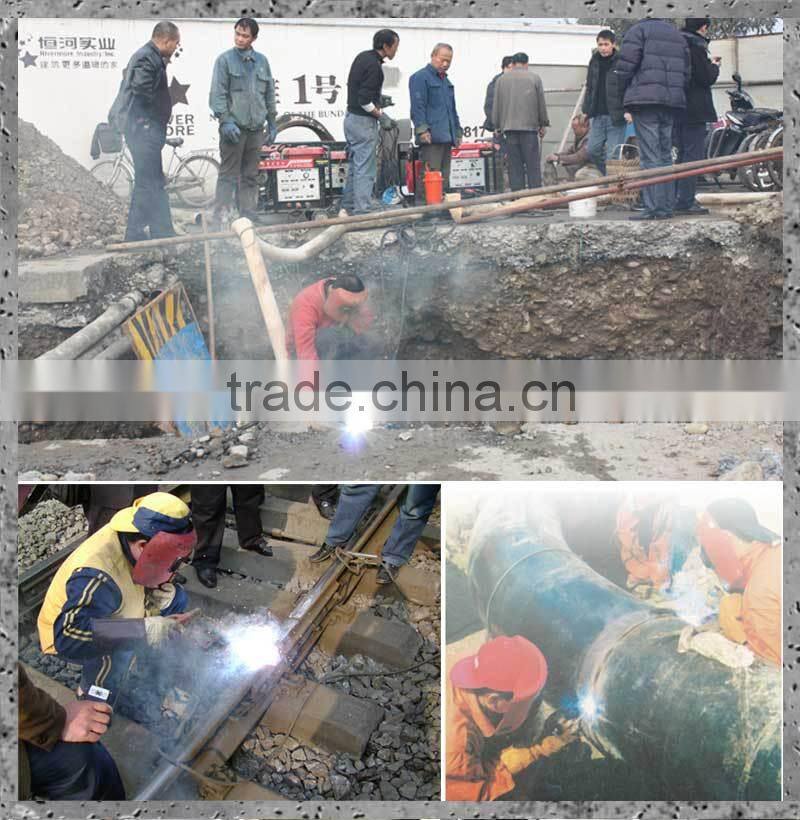

This DC arc welder can be used to weld railway tracks, guard rails, natual gas pipes, and all kinds of black metal.

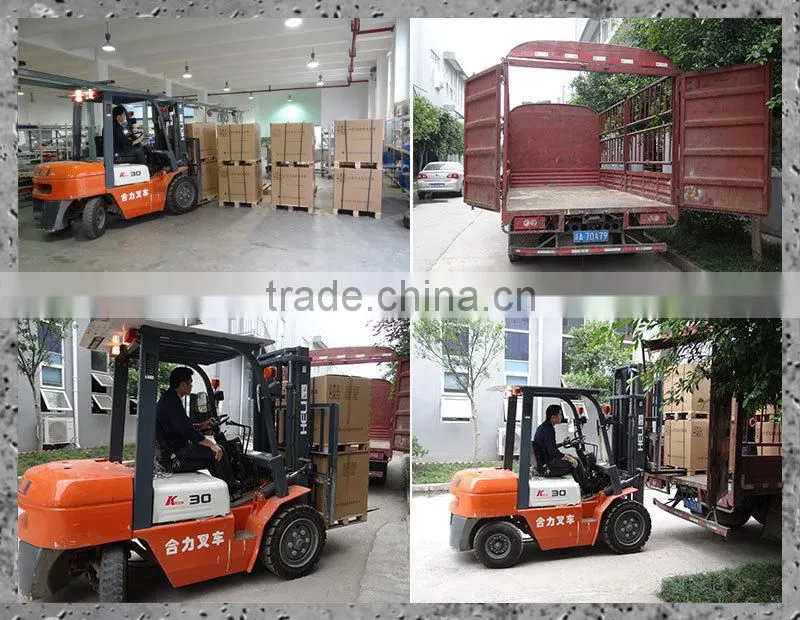

Packaging & Shipping
Company Information

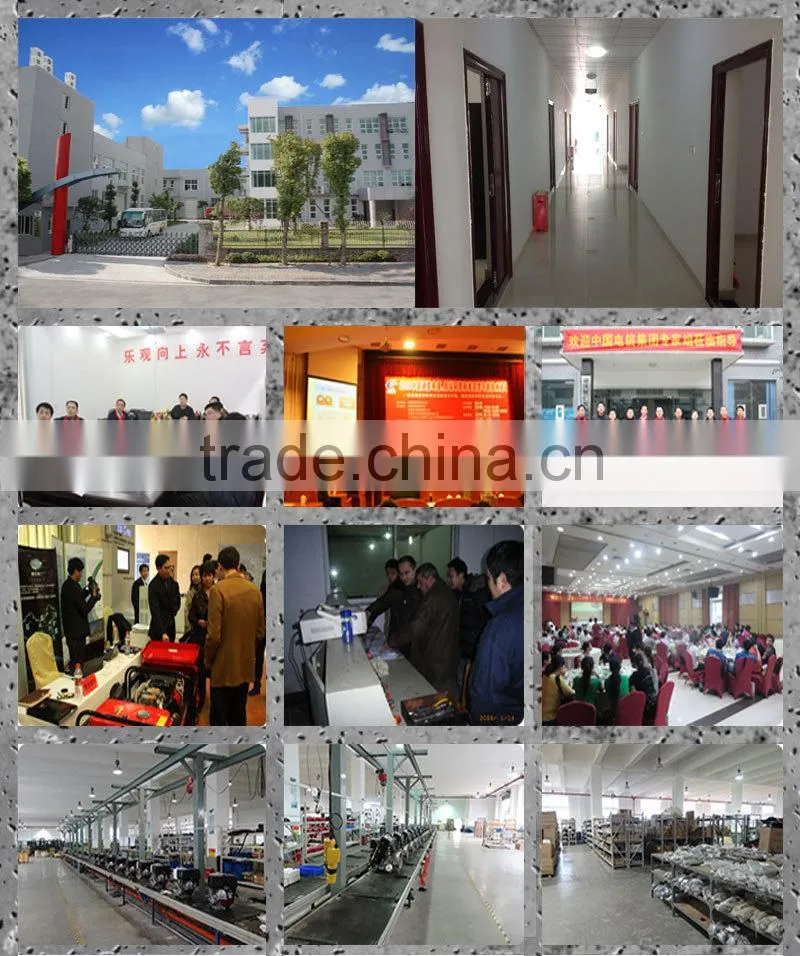

Production Process:
