Home > Products > Generator welder > 220V 200A DC gasoline arc welder

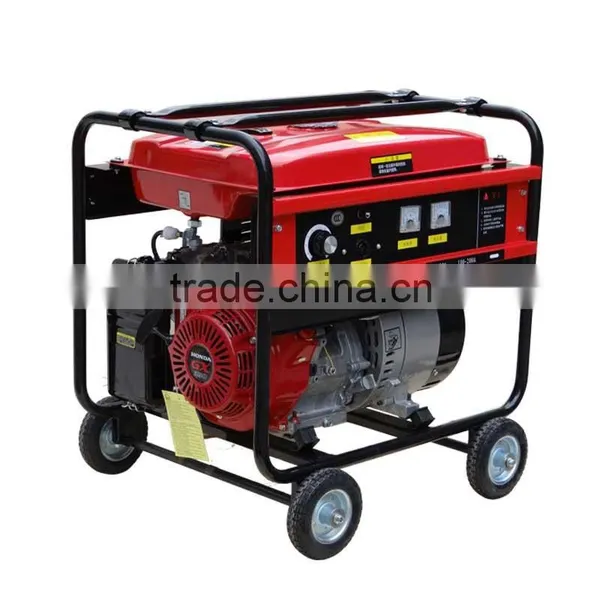

220V 200A DC gasoline arc welder
USD $400 - $800
/ Set
5 Sets(Min.Order)
- 1000 Set / Sets per Month
- Chongqing
- T/T Credit Card
You May Like
- AITOP 5000A/8000A Li ion 18650 32650 Battery 5000A 8000A Mini Pneumatic Aluminum Laser Point Spot Welder Welding Machine For Lithium Cell
- Miller MigMatic S400i Synergic MIG Welder 415V Engine Welder
- DX450 Diesel Engine Welder
- Drill stabilizer hardbanding machine
- Movavle hardbanding machine
- Hardbanding welding machine
Product Details
Condition: | New | Place of Origin: | Chongqing, China | Brand Name: | Zhiren |
Model Number: | AXQ1-200-1 | Pulse Frequency: | 720HZ | Pilot Arc Current: | 50-200 A |
Rated Duty Cycle: | 100 | Motor Type: | DC Motor | Dimensions: | 655x670x655 mm |
Usage: | tracks, rails, pipes etc | Voltage: | 220V | Power(W): | 3KW |
Certification: | CCC | Warranty: | 2 years | After-sales Service Provided: | No overseas service provided |
Product Description
200A 220V DC gasoline arc welder
Product Description
Unique Features:
- Power by Kohler and B&S gasoline engines, reliable quality and stable performance.
- Equipped with intermediate frequency generator,100% duty cycle to guarantee 24-hour continuous operation.
- Designed with big & small copper windings, guarantee stable output of both big current and small current.
- With magnetic induction control system, effectively avoid electrical component deterioration and lower failure rate.
- With 220V DC standby power, suitable for field operation including grinding and lighting etc.
- With initiating excitation circuit, can avoid loss of magnet.including grinding and lighting etc.
Technical Specification:
200A 220V DC gasoline arc welder |
Welder | Model | AXQ1-200 | AXQ1-200-1 |
No-load Voltage (V) | 60-85 | 60-85 | |
Rated-load Voltage (V) | 22-28 | 22-28 | |
Range of Current(A) | 50-200 | 50-200 | |
Welding Rod Diameter (mm) | 1.2-5 | 1.2-5 | |
Welder type | Hand welding | Hand welding | |
Duty cycle (%) | 100 | 100 | |
Standby power Voltage(V) | DC220 | DC220 | |
Standby power Power (kW) | 3 | 3 | |
Engine | Engine Model | KOHLER CH440 | KOHLER CH440 |
Valve Type | OHV | OHV | |
Horse Power (HP) | 14 | ||
Ignition system | CDI | CDI | |
Fuel Tank Capacity (L) | 6.5 | 25 | |
Fuel Consumption (g/HP.hr) | 228 | 228 | |
Oil Alert system | YES | YES | |
whole set | Starting system | Electric | Electric |
Insulation Class | H | H | |
Protection Class | IP21 | IP21 | |
L×W×H (mm) | 655×670×655 | 680×670×700 | |
Net weight (KG) | 65 | 66 |
Product Uses
Application Scope:
This DC arc welder can be used to weld railway tracks, guard rails, natual gas pipes, and all kinds of black metal.
