2015 Submersible Liquid Level Sensor QYB201

US$ 60 - 120 MOQ: 1 Piece

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

Model Number:

QYB201

Baoji Qi Xing Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name QX

Model Number QYB201

Specifications

Specifications
1.Submersible type,
2.1.5 year warranty,
3.For water and other liquids,
4.OEM order ok,0-200m cable.

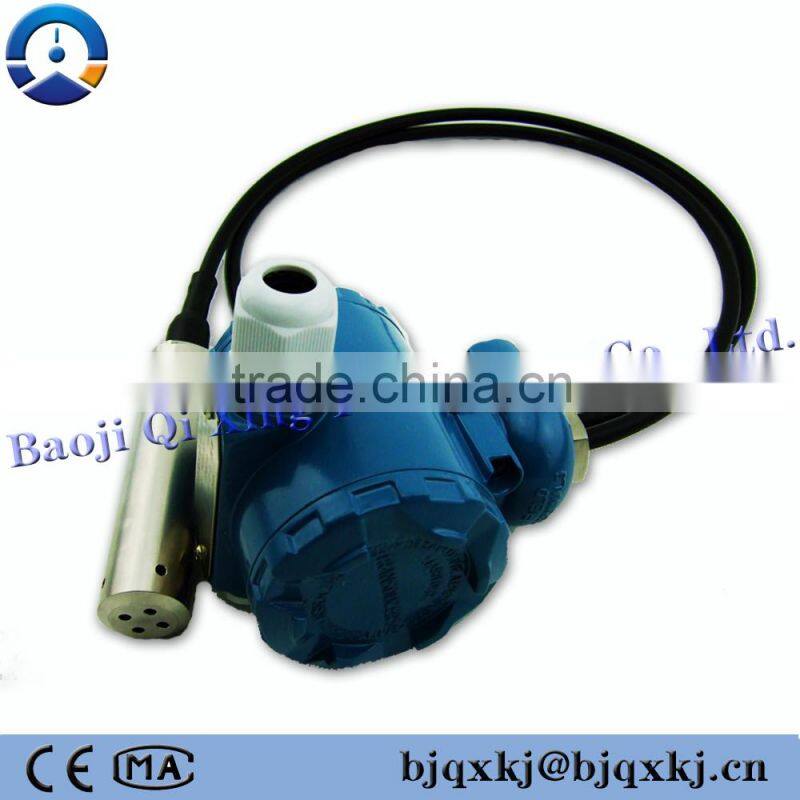

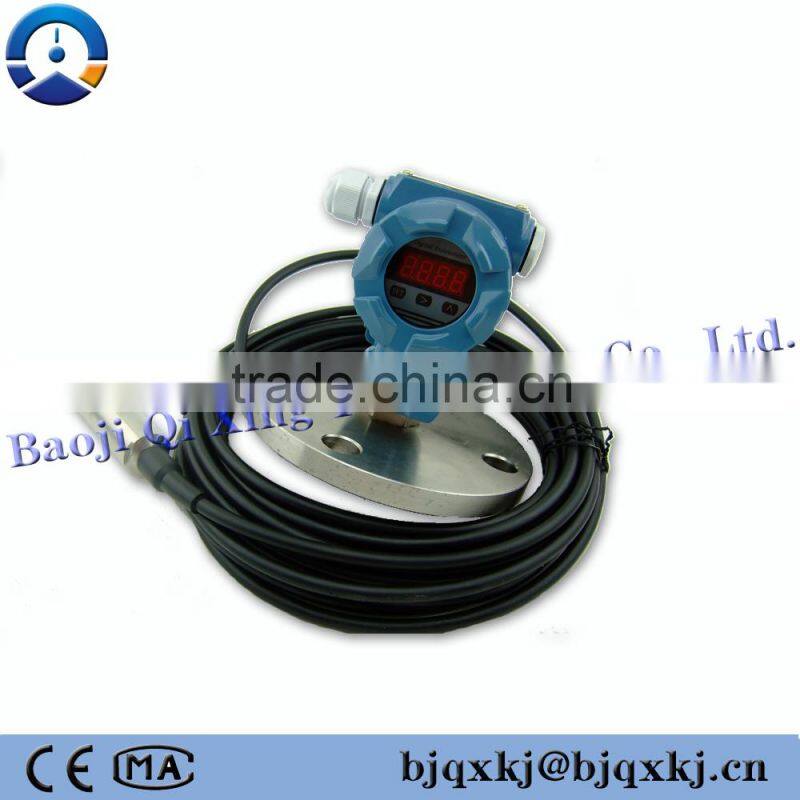

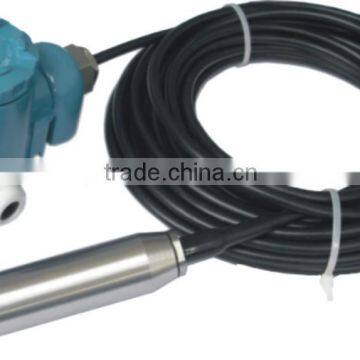

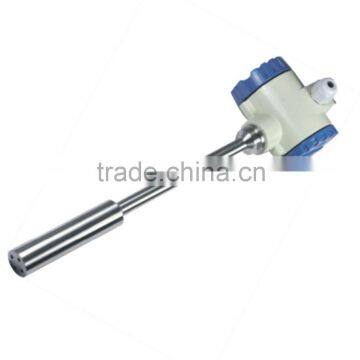

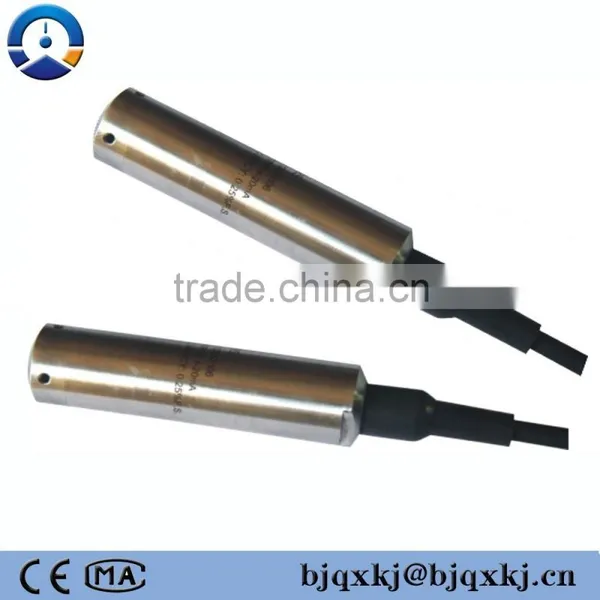

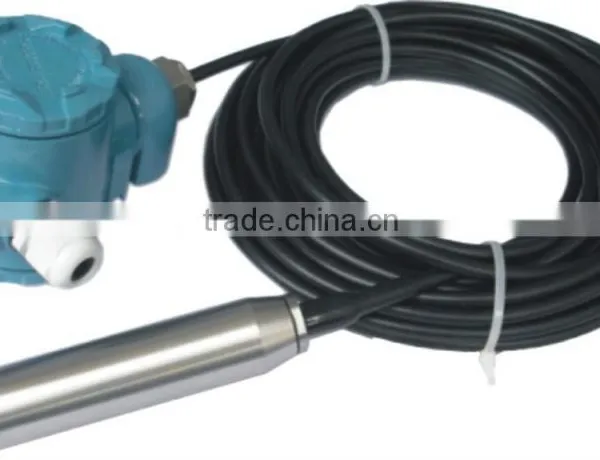

Submersible Type Liquid Water Level Transmitter with or without LCD Display

Product Description

Features:

0.25%,0.50% accuracy

-40ºC to 100ºC operating temperature

100% stainless steel 316L isolation.

Wide variety of pressure ranges and electrical outputs

Low cost and compact package

stainless steel with rigid and robust construction.

The protection cap with a small hole

The exquisite sealing technology

a waterproof cable with vent hose

Specifications:

pressure range	0~1mH2O...200mH2O
overload pressure	200%FS
output signal	4~20mA, 0~5V, 0~10V, 1~5V
accuracy	0.1%FS, 0.25%FS (standard), 0.5%FS
load resistance	R_L= (U-12V)/0.02A (4~20mA current output) U-loop voltage (V)
long term stability	<0.2%FS/year
supply voltage	12~36V
compensated temperature range	0~70°c
storage temperature range	-40~+100°c
temperature coefficient of zero	0.25%FS/10°c
temperature coefficient of span	0.25%FS/10°c
insulation resistance	100MΩ@ 50VDC
electrical connection	7.6mm shielded cable with vent hose
material of wetted part and housing	1Cr18Ni9Ti
material of pressure membrane	316L or tantalum
sealing	Butyronitrile or fluoro-rubber sealing ring
