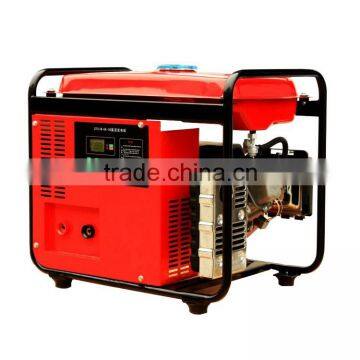

Emergency standby power supply brushless dc generator
Specification:

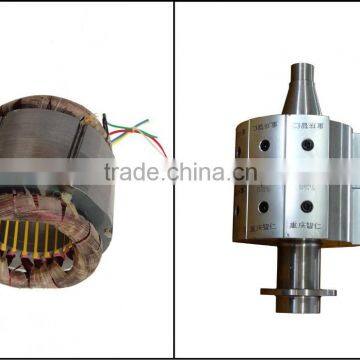

This emergency standby power supply brushless dc generator is configured with YOHOUTM brushless NdFeB permanent magnet generator and Briggs & Stratton engine, and is specially designed by YOHOUTM technical team for telecommunication emergency standby power supply.
Advantages:
- Robust and reliable American Briggs & Stratton power
- Small size and light weight. This brushless dc generator is 50% lighter than conventional generators of equal watts
- Perfect energy saving and emission reducing effects. This brushless dc generator saves 30% fuel than convnetional generators.
- Modularized design, reliable performance
- Directly connected to storage batteries or communication devices
- Local human-machine interactive operation with LCD display and keyboard.
- Brushless dc generator can accumulate generation time and generated energy
- With 20 latest alert records
- Brushless dc generator is highly intelligient. Perfect for unwatched base stations and new energy stations etc.
Specification:
Emergency standby power supply brushless dc generator | |||
Model | ZF3/M48-50 | ||
Engine | Engine type | B&S 6.5hp | |
Power(hp) | 6.5 | ||
Cooling method | Air Cooled | ||
Fuel type | #93 Unleaded Gasoline or above | ||
Displacement(cm³) | 205 | ||
Low oil altert | YES | ||
Starting system | Manual | ||
Oil consumption | ≤370 | ||
Fuel tank capacity(L) | 15 | ||
Generator | Output voltage(V) | (Rated)48; (Floating)53.5; (equalizing)56.4 | |
Output electric current(A) | 55(Rated voltage); 52(Floating voltage); 50(Equalizing voltage ) | ||
Output power[KW/(r/min)] | 3.2/3600 | ||
Stable voltage precision | Better than ±1% | ||
Load balance | Better than ±5% | ||
Pulse amplitude of step load change | Better than ±5% | ||
Soft starting time(S) | 3S-10S | ||
Weighted noise voltage (300Hz-3400Hz) | <2mV | ||
P-P noise value voltage(0-20MHz) | <200mV | ||
Wide band noise value voltage | 3.4kHz-150kHz | <50mV | |
0.15MH-30MHz | <20mV | ||
Discrete noise value voltage
| 3.4kHz-150kHz | <5mV | |
150kHz-200kHz | <3mV | ||
200kHz-500kHz | <2mV | ||
0.5MHz-30MHz | <1mV | ||
Whole machine | Noise level at 7 meters[dB(A)] | 68 | |
L × W×H(mm) | 600×410×490 | ||
Net weight(Kg) | 35 | ||
