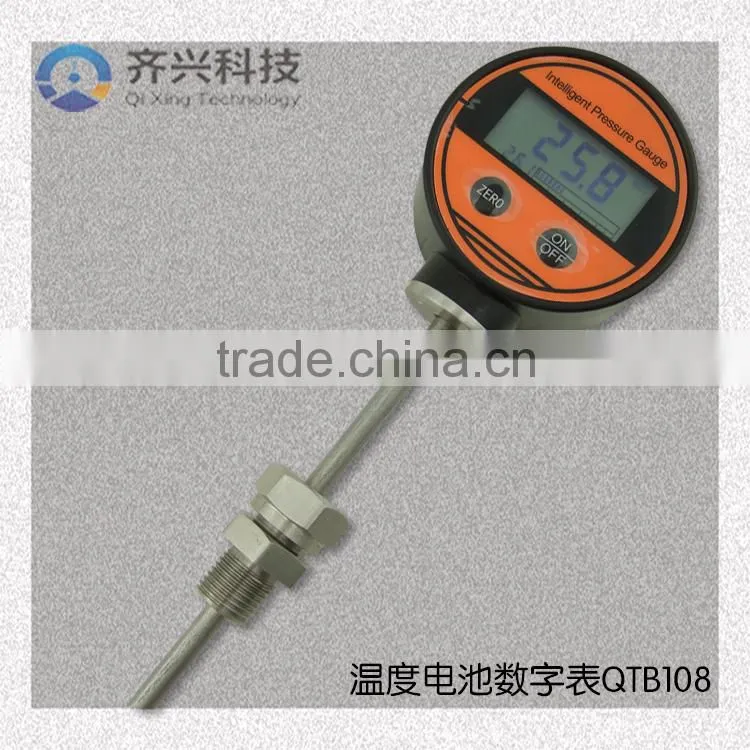

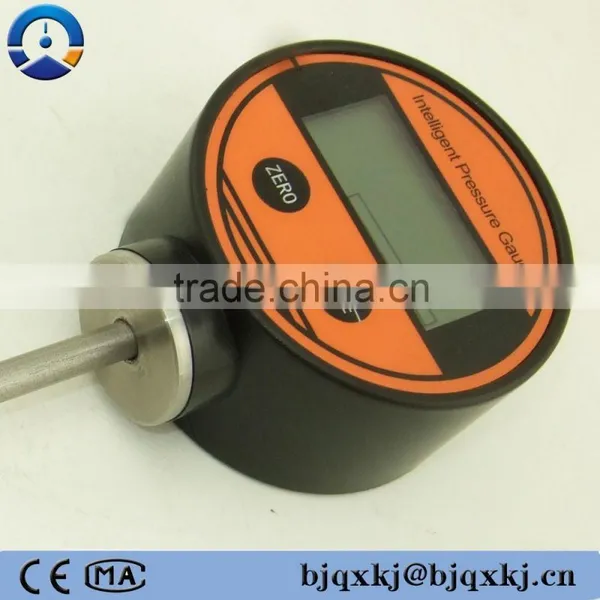

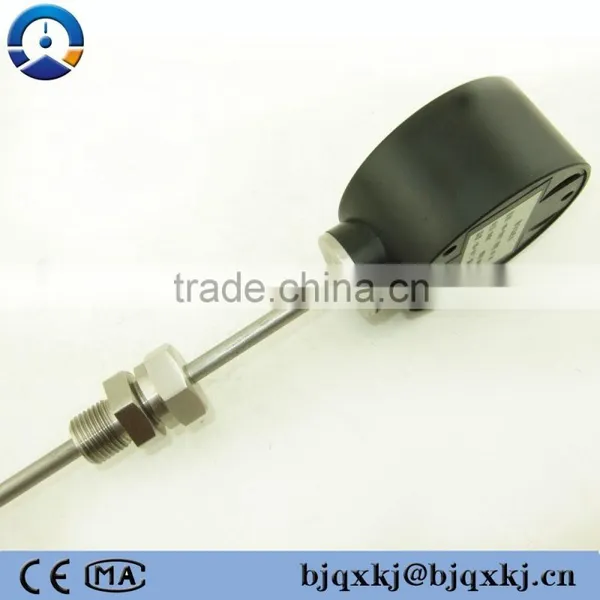

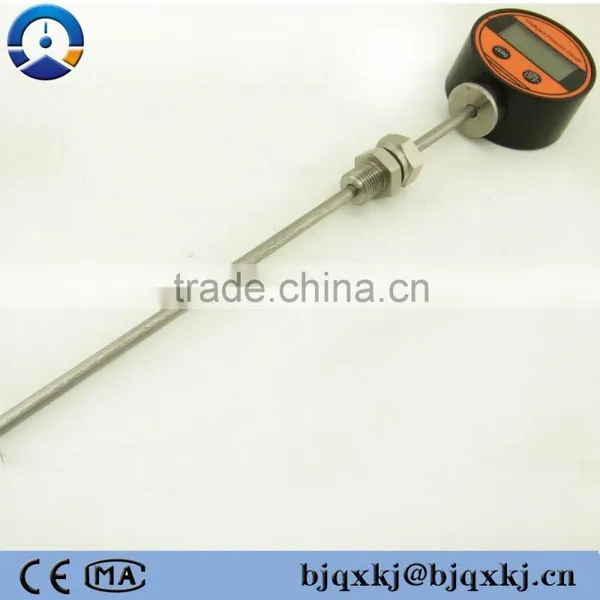

Digital temperature gauge QTB108,smart LCD temperature gauge
Ⅰ.Overview
QTB108 digital thermometer is full electronic structure,powered by battery,Site installation simple.Adopting high precision PT100,LCD display shows the actual temperature value.The thermometer uses flexible, simple operation, easy debugging, safe and reliable.Widely used in hydro power, tap water, oil, chemical, mechanical, hydraulic and other industries, for fluid medium temperature measurement and display.
Ⅱ.Features
1.Large screen LCD display,High resolution, ignoring the value of error.
2.Peak hold function, maximum pressure recording during the measurement value
3.Dynamic display pressure percentage,(the progress bar shows)
4.Five engineering units selection:psi,bar,kpa,kg/cm, Mpa.
5.1~15min Automatic shutdown function
6.Micro power consumption,continuous working 2000 hours.
7.Parameter correction function
8.The upper and lower limit range
9.Sampling rate: 1 times /per sec
10.suitable for various gas or liquid which compatible with stainless steel.
Ⅲ.Specifications:
Control range |
-55℃~500℃ |
precision |
0.2%/0.5% |
Operating temp. |
-20℃~70℃ |
Pressure type |
gauge |
stability |
≤0.1% /year |
Power supply |
9VDC |
display |
LCD |
Display range |
-1999~9999 |
warranty |
12 months |
Relative humidity |
≤80% |
thread |
M20*1.5 |
interface material |
Stainless steel |
Through the pressure pipe connector(M20*1.5 or others)directly installed
in the hydraulic pipeline or a container.
Notice
1. The instrument storage and use appropriate when the environment temperature
is -20℃~70℃ , relative humidity is less than 80% occasions.
2. When replacing the batteries use 9V alkaline batteries.
3.Please indicate your order range, precision grade, size of the interfaces.
Warranty
In conditions of compliance with the use and protection rules , since the date of the instrument ex-factory ,warranty for one year.
| order guide | |||
QTB108 |
|
Industrial type digital thermometer |
|
thread |
G14 |
|
G1/4 |
G12 |
|
G1/2 |
|
M20 |
|
M20*1.5 |
|
accuracy |
A |
|
0.2% |
O |
|
0.5% |
|
E |
|
1.0% |
|
range |
|
(…) |
Your requirements |
We are a professional manufacturer and exporter that engaged in the development, sales and
customized service of
Pressure sensors/transmitters,
Temperature sensor/transmitters,
digital pressure gauges
level measuring instruments,
Pressure switch etc.
Any needs,pls contact.
