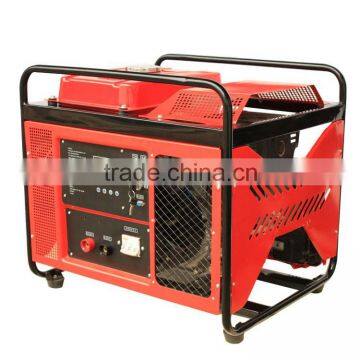

Emergency Power 6kw 100A Small dc Generator Permanent Magnet

Name: Emergency Power 6kw 100A Small dc Generator Permanent Magnet
Brand: YOHOU
SKU: 119017653
Availability: InStock

Chongqing Zhiren Electric Equipment Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Chongqing, China

Brand Name:

YOHOU

Model Number:

ZF6/M48-100

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Chongqing, China

Brand Name YOHOU

Model Number ZF6/M48-100

Output Type DC

Speed 3600RPM

Frequency 60HZ

Rated Power 6 KW

Rated Voltage 48 V

Rated Current 100 A

Emergency power 6kw 100A small dc generator permanent magnet

Product Description

Emergency power 6kw 100A small dc generator permanent magnet

Specification:

Advantages:

Powered by origional Honda engine, reliable performance
50% lighter than conventional generator of the same power.
Save about 30% fuel than conventional generator.
Protection functions including over voltage, short circuit, current limit, reversal of storage battery; overheat of power module and low oil altert etc.
Can work both independently and work with several units together.
Output is directly connected to storage battery or communication equipment; and local human machine interaction operation can be realized through LED display and keyboard operation.
The engine can be automatically turned on according to utility power outage and storage battery voltage, and be turned off in accordance with restoration of utility power, storage battery voltage and charging current.

Detailed Parameters:

Emergency power 6kw 100A small dc generator permanent magnet
Model			ZF6/M48-100
Engine	Engine type		Honda GX390
	Power(hp)		13
	Cooling method		Air Cooled
	Fuel type		#93 unleaded gasoline or above
	Displacement(cm³)		389
	Oil alarm system		YES
	Starting System		Manual
	Oil consumption		≤350
	Oil tank capacity(L)		15
Generator	Output voltage(V)		(Rated)48; (Floating)53.5; (equalizing)56.4
	Output electric current(A)		110(Rated current); 105( Floating current); 100(Equalizing current)
	Output power[KW/(r/min)]		6/3600
	Stable voltage precision		Better than ±1%
	Load balance		Better than ±5%
	Pulse amplitude of step load change		Better than ±5%
	Soft starting time(S)		3S-10S
	Weighted noise voltage (300Hz-3400Hz)		<2mV
	P-P noise value voltage(0-20MHz)		<200mV
	Wide band noise value voltage	3.4kHz-150kHz	<50mV
		0.15MH-30MHz	<20mV
	Discrete noise value voltage	3.4kHz-150kHz	<5mV
		150kHz-200kHz	<3mV
		200kHz-500kHz	<2mV
		0.5MHz-30MHz	<1mV
Whole machine	Noise level at 7 meters[dB(A)]		72
	L x W x H(mm)		654x540x616
	Net weight(Kg)		62
