US$ 7,599 - 7,999
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
YOHOU
Model Number:
ZF12/M48-200
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Permanent Magnet 48V 12KW DC Generator for Emergency TelecommunicationUS$ 7,500 - 8,000MOQ: 1 Unit -
48V DC Generator for TelecommunicationUS$ 2,400 - 2,999MOQ: 1 Unit
-
YOHOU 48v dc Generarator for SaleNegotiableMOQ: 1 Set
-
100A 48V Kohler dc Generator for Telecom TowerNegotiableMOQ: 1 Set
-
Telecom Emergency Gasoline 50A/100A 48v dc GeneratorUS$ 2,400 - 2,999MOQ: 1 Unit
Place of Origin
Chongqing, China
Brand Name
YOHOU
Model Number
ZF12/M48-200
Speed
3600
Frequency
60HZ
Rated Power
12KW
Rated Current
200A

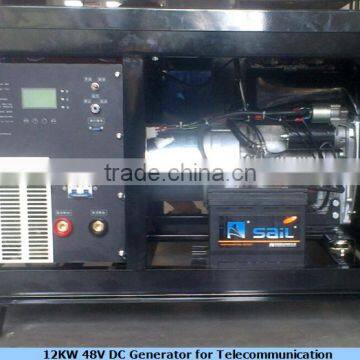

Portable generator for telecom
Description
Rotor : is neodymium permanent magnet rotor; high magnetic energy
Stator: 100% copper wire and welding Cold-Roll silicon Steel Sheets.
Engine: Powered by KOHLER diesel engine
Warranty: double cylinder 3 year global warranty.
Technical Parameter
Rated Power : 12KW
Current Output: 200A
Voltage output: 48V
Output type: DC
Start Type: electric start
Fule Type: Diesel
Application: used for telecommunication, telecom base station.
| Model | ZF12/MC48-200 | |
| Generator | Excitation System | permanent magnet generator |
| DC output Voltage(V) | 48V (rating voltage) 53.5V(floating voltage) 56.4V(Equalized Charging ) | |
| DC output Current(A) | 200A (Rated current ) (10A-210A continuously adjustable ) 100A(Equalized Charging) 110A (rating voltage) 105A (floating voltage) | |
| DC output Power [kw/(r/min)] | 11.28/3600 | |
| Power (kW) | 10kw/12kw | |
| Engine | Brand | KOHLER KD477-2 |
| Type | double cylinder, 4 stroke , force air cooled | |
| Displacement(cm³) | 954 | |
| Continuous Power[kw/(r/min)] | 14/3600 | |
| Start | electric start | |
| Lubricating | Lubricating oil type | 10℃ Below (Winter) |
| SAE15W-40 | ||
| Lubricating oil capacity(L) | 3 | |
| Fuel | 0# diesel(Summer)or -20# diesel(Winter) | |
| Protection | Fule consumption(g/kw.hr) | ≤244 |
| Environmental characteristics | 70kPa~106kPa | |
| 40℃~+55℃ | ||
| -55℃~+70℃ | ||
| Protection characteristics | battery reverse connection protection, timing shutdown protection, grid supply auto-shutdown protection , engine preheating protection; engine lubricating oil level alarm protection, over-voltage protection, over-current protection, limit-current protection, short-circuit protection, module over-heating protection | |
| Fuel tank capacity(L) | 28 | |
| Start condition (stationary automatic type ) | Grid supply unavailable, batteries voltage value lower than lower limit voltage value | |
| Shutdown condition (stationary automatic type ) | Gird supply available | |
| batteries voltage value higher than upper limit voltage value, batteries charging current, Timing shutdown | ||
| Continuous work tim(hour/ratedpower) | 24 | |
| Noise level [non-load~full-load[dB(A)] | 82~90 | |
| Dimensions(L×W×H) (mm) | 1150×740×769 | |
| Weight(net weight) | ≤190kg | |
