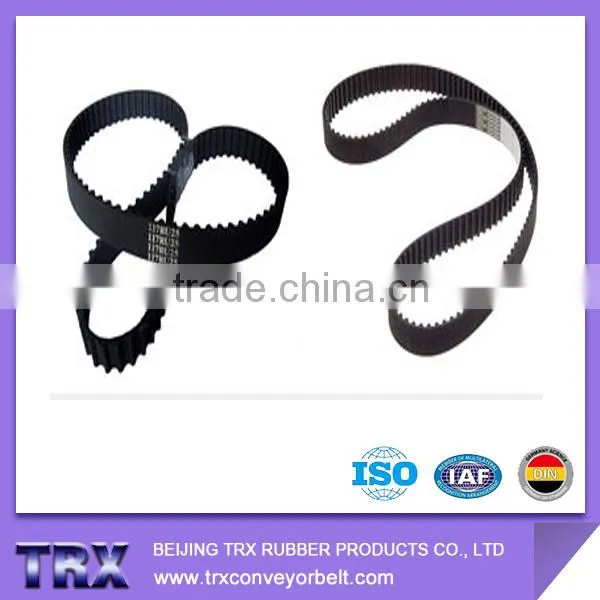

Help CenterCR And HNBR Timing Belt
US$ 3 - 10
MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
TRX
Model Number:
TB-01
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hebei, China
Brand Name
TRX
Model Number
TB-01
Specifications
High quality raw material and the advanced craft unify enable the product to have the high strength and the good flexibility.CR And HNBR Timing Belt
Specifications:
1. It combine respective advantage of gear transmission,chain transmission and belt transmission.
2. Solve the problem such as low transmission efficency,lubbrication oil required under the status of high speed when using the chain,distance limit between the drive part and the slave drive part when using the gear.Fiber glass as tensile composision,no elongation of rubber belt.excelent hear-resistance,oil-proof,wearing resistance.
3. We also accept OEM design according to customers requirement.
4. We can accept special specification types.
Features:
1.Low noises,No slippage
2.High transmission power
3.Wear Out Resistance
Type:
Arc ToothType |
Pitch pb(mm) |
Tooth height ht(mm) |
Belt thickness hs(mm) |
| 2M | 2 | 0.75 | 1.36 |
| 3M | 3 | 1.17 | 2.4 |
| 5M | 5 | 2.06 | 3.8 |
| 8M | 8 | 3.36 | 6 |
| 14M | 14 | 6.02 | 10 |
| 20M | 20 | 8.4 | 13.2 |
| S2M | 2 | 0.76 | 1.36 |
| S3M | 3 | 1.14 | 2.2 |
| S4.5M | 4.5 | 1.71 | 2.81 |
| S5M | 5 | 1.91 | 3.4 |
| S8M | 8 | 3.05 | 5.3 |
| S14M | 14 | 5.3 | 10.2 |
| RP2M | 2 | 0.76 | 1.36 |
| RP3M | 3 | 1.15 | 1.9 |
| RP5M | 5 | 1.95 | 3.5 |
| RP8M | 8 | 3.2 | 5.5 |
| RP14M | 14 | 6 |
10 |
Size Detials:
