Help CenterSmooth Rubber Coated Timing Belt
Related Products
-
Classical Industrial Timing Belt Made In ChinaUS$ 3 - 10MOQ: 100 Meters -
CR And HNBR Timing BeltUS$ 3 - 10MOQ: 100 Meters
-
High Quality Machine Timing BeltUS$ 3 - 10MOQ: 100 Meters
-
Industrial Machine Timing BeltUS$ 3 - 10MOQ: 100 Meters
-
Professional Manufacturer Of Timing BeltUS$ 3 - 10MOQ: 100 Meters
Specifications

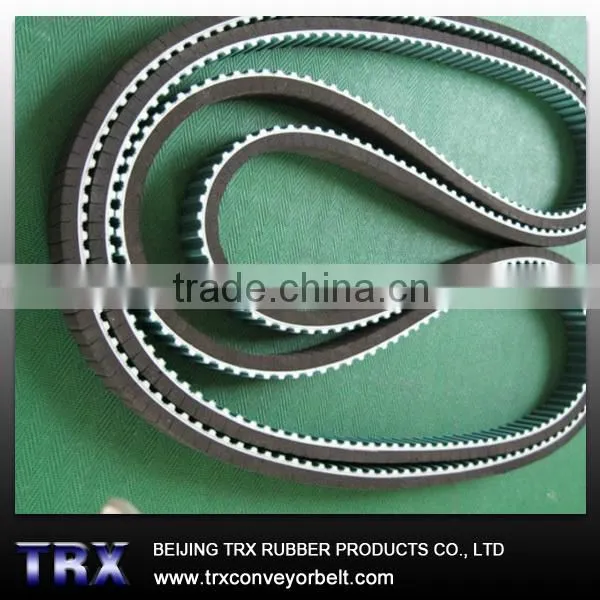

High quality rubber coated timing beltRubber coated timing belt:
Feature:
1. Anti ageing.
2. Thermal resistance.
3. Oil resistance and durability.
4. Anti crimp.
Rubber coated timing belt:
Employing reinforcement with high intensity, slight elongation and anti-wearing out as strong base, high-speed rubber flat belt is characteristic as strong transmission power and anti-wearing out. Employing imported neoprene rubber, with anti-heat, anti-oil, anti-wearing out and long life.
Thus it becomes most satisfactory high-speed transmission fIat belt.
Belt tyype: ( depend on thickness ) : 1.5mm;2mm;2.5mm;3mm;3.5mm;4mm.
Model: MXL, XL, L, H, XH, XXH, T2.5, T5, T10, T20, AT5, AT10, AT20, HTD2M, 3M, 5M, 14M, STD2M, S3M, S5M, S8M, S14M etc.
T type industrial rubber timing belt: | |||||
Type |
Pitch |
Tooth height |
Belt thickness |
Angle β ° |
|
Pb(mm) |
ht(mm) |
hs(mm) |
|||
MXL |
2.032 |
0.51 |
1.14 |
40 |
|
XL |
5.08 |
1.27 |
2.30 |
50 |
|
L |
9.525 |
1.91 |
3.60 |
40 |
|
H |
12.7 |
2.29 |
4.30 |
40 |
|
XH |
22.225 |
6.35 |
11.20 |
40 |
|
XXH |
31.75 |
9.53 |
15.70 |
40 |
|
T2.5 |
2.5 |
0.70 |
1.30 |
40 |
|
T5 |
5 |
1.20 |
2.20 |
40 |
|
T10 |
10 |
2.50 |
4.50 |
40 |
|
T20 |
20 |
5.00 |
8.00 |
40 |
|
AT5 |
5 |
1.20 |
2.70 |
50 |
|
AT10 |
10 |
2.50 |
5.00 |
50 |
|
AT20 |
20 |
5.00 |
8.00 |
50 |
|
ABC tooth industrial rubber timing belt: | |||||
Type |
Pitch |
Tooth height |
Belt thickness |
Belt thickness |
|
Pb(mm) |
ht(mm) |
hs(mm) |
|||
HTD |
2M |
2 |
0.75 |
1.36 |
|
3M |
3 |
1.17 |
2.40 |
||
5M |
5 |
2.06 |
3.80 |
||
8M |
8 |
3.36 |
6.00 |
||
14M |
14 |
6.02 |
10.00 |
||
20M |
20 |
8.40 |
13.20 |
||
STPD/STS |
S2M |
2 |
0.76 |
1.36 |
|
S3M |
3 |
1.14 |
1.90 |
||
S4.5M |
4.5 |
1.71 |
2.81 |
||
S5M |
5 |
1.91 |
3.40 |
||
S8M |
8 |
3.05 |
5.30 |
||
S14M |
14 |
5.30 |
10.20 |
||
RPP/HTTD |
RPP2M |
2 |
0.76 |
1.36 |
|
RPP3M |
3 |
1.15 |
1.90 |
||
RPP5M |
5 |
1.95 |
3.50 |
||
RPP8M |
8 |
3.20 |
5.50 |
||
RPP14M |
14 |
6.00 |
10.00 |
||
For more details, Pls feel free to contact us.
