Timing Belt Used For Industrial Machine

Specifications

High quality raw material and the advanced craft unify enable the product to have the high strength and the good flexibility.

Timing Belt Used For Industrial Machine



Specifications:



1. It combine respective advantage of gear transmission,chain transmission and belt transmission.

2. Solve the problem such as low transmission efficency,lubbrication oil required under the status of high speed when using the chain,distance limit between the drive part and the slave drive part when using the gear.Fiber glass as tensile composision,no elongation of rubber belt.excelent hear-resistance,oil-proof,wearing resistance.

3. We also accept OEM design according to customers requirement.

4. We can accept special specification types.



Features:

1.Low noises,No slippage
2.High transmission power
3.Wear Out Resistance

 Type:

Arc ToothType	Pitch pb(mm)	Tooth height ht(mm)	Belt thickness hs(mm)
2M	2	0.75	1.36
3M	3	1.17	2.4
5M	5	2.06	3.8
8M	8	3.36	6
14M	14	6.02	10
20M	20	8.4	13.2
S2M	2	0.76	1.36
S3M	3	1.14	2.2
S4.5M	4.5	1.71	2.81
S5M	5	1.91	3.4
S8M	8	3.05	5.3
S14M	14	5.3	10.2
RP2M	2	0.76	1.36
RP3M	3	1.15	1.9
RP5M	5	1.95	3.5
RP8M	8	3.2	5.5
RP14M	14	6	10

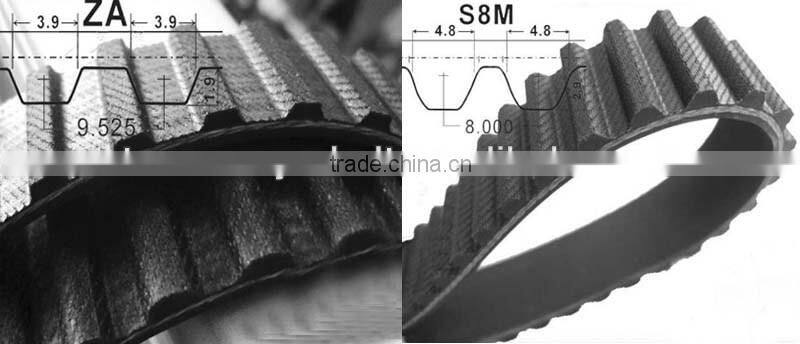

Size Details:

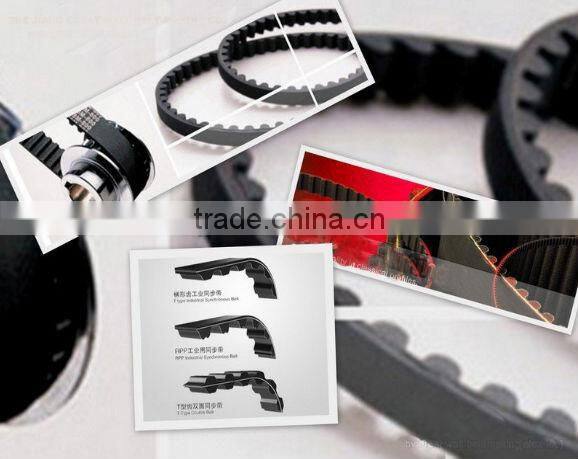

 Various Types:
