Concrete Reinforcing Mesh
US$ 700 - 1,000
MOQ: 2 Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
YUNTAO
Model Number:
YT-1423
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Gabion BoxUS$ 1 - 100MOQ: 200 Sets -
High Quality Low Price All Specification 6x6 Reinforcing Welded Wire Mesh FactoryUS$ 20 - 100MOQ: 100 Pieces
-
Reinforcing Concrete Rebar Welded Mesh PanelUS$ 20 - 100MOQ: 100 Pieces
-
All Specification of Steel Bar Welded Wire Mesh SheetsUS$ 10 - 70MOQ: 100 Pieces
-
GI Welded Wire Mesh FactoryUS$ 0.5 - 1.5MOQ: 10000 Square Meters
Place of Origin
Hebei, China
Brand Name
YUNTAO
Model Number
YT-1423
Material
Steel
Specifications
concrete reinforcing meshwire dia. 5mm,6mm,7mm,8mm,9mm
meshopeningsize:100X100mm,100x150mm,150x150mm,200x200mm
ISO900I:2000

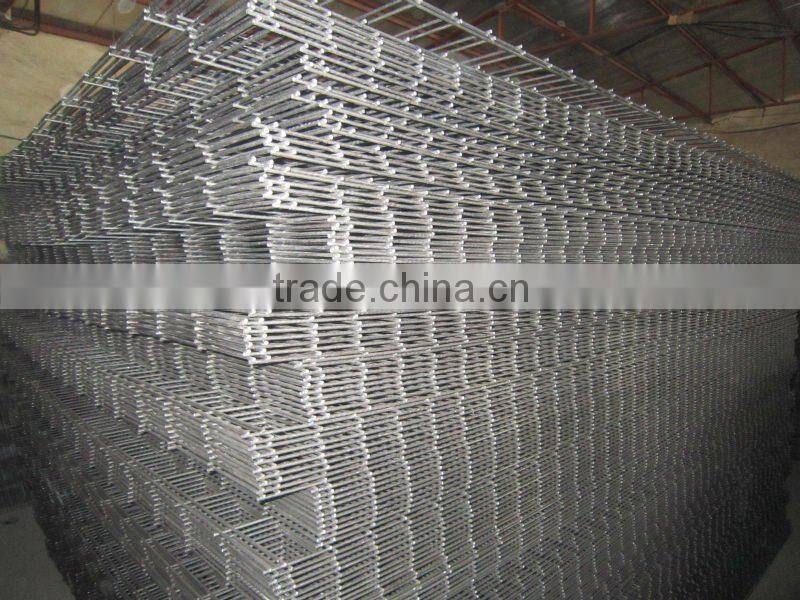

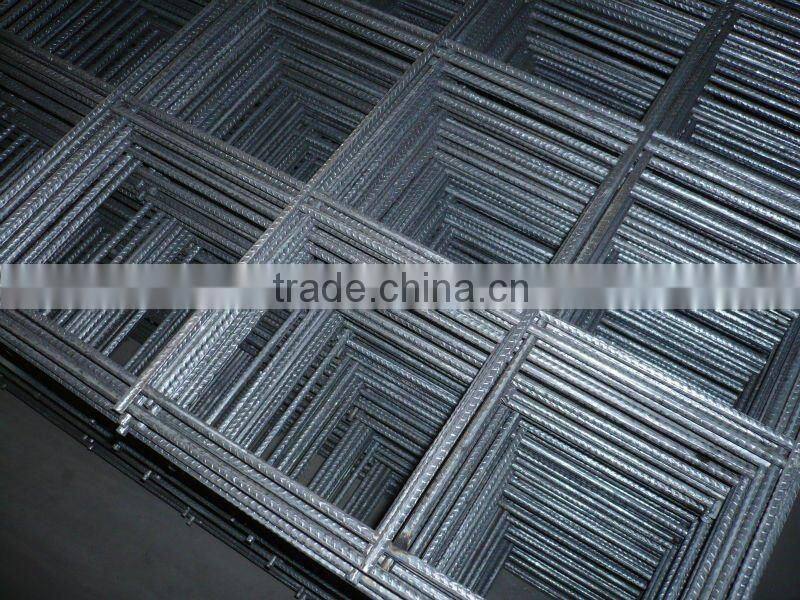

concrete reinforcing mesh
Reinforcing mesh is a welded wire fabric, prefabricated steel reinforcement material. It has a rectangular or square grid pattern and is produced in flat sheets. The fabric is used to provide tensile strength and crack control to structural concrete elements.
Reinforcing Steel Mesh Application
Werson is one of the few manufacturers of welded mesh in China,which has a full ISO 9001 : 2000 quality rating. The manufacture process is as follows:
a.Mittal Steel supply werson with medium-low carbon mild steel rod
b.The mild steel rod is cold rolled by werson to the required diameter to form high tensile wire
c.The high tensile wires are welded into a rectangular mesh grid fabric.
| STANDARD SIZES (4,800mm X 2,400mm) | |||||||||||
| Mesh size [1] | Mesh size [1] | Wire sizes | Wire sizes | Area[2] | Area[2] | Weight [3] |
Sheets Per Ton [4] |
Sheet weight (kg) | Sheets per bundle | Square metres per tonne | |
| BS Reference | Main | Cross | Main | Cross | Main | Cross | (Kg) | ||||
| Square | |||||||||||
| A 393 | 200mm | 200mm | 10mm | 10mm | 393mm² | 393mm² | 6.16 | 15 | 70.96 | 18 | 162.34 |
| A 252 | 200mm | 200mm | 8mm | 8mm | 252mm² | 252mm² | 3.95 | 22 | 45.50 | 28 | 253.16 |
| A 193 | 200mm | 200mm | 7mm | 7mm | 193mm² | 193mm² | 3.02 | 29 | 34.79 | 34 | 331.13 |
| A 142 | 200mm | 200mm | 6mm | 6mm | 142mm² | 142mm² | 2.22 | 40 | 25.57 | 46 | 450.45 |
| A 98 | 200mm | 200mm | 5mm | 5mm | 98mm² | 98mm² | 1.54 | 57 | 17.74 | 60 | 649.35 |
| Structural | |||||||||||
| B 1131 | 100mm | 200mm | 12mm | 8mm | 1131mm² | 252mm² | 10.90 | 8 | 125.57 | 10 | 91.74 |
| B 785 | 100mm | 200mm | 10mm | 8mm | 785mm² | 252mm² | 8.14 | 11 | 93.57 | 14 | 122.85 |
| B 503 | 100mm | 200mm | 8mm | 8mm | 503mm² | 252mm² | 5.93 | 15 | 68.31 | 18 | 168.63 |
| B 385 | 100mm | 200mm | 7mm | 7mm | 385mm² | 193mm² | 4.53 | 20 | 52.19 | 24 | 220.75 |
| B 283 | 100mm | 200mm | 6mm | 7mm | 283mm² | 193mm² | 3.73 | 24 | 42.97 | 30 | 268.10 |
| B 196 | 100mm | 200mm | 5mm | 7mm | 196mm² | 193mm² | 3.05 | 29 | 35.14 | 36 | 327.87 |
