Specifications
Concertina razor barbed wire on the wallBTO-22,28,30, CBT-60,65
Out dia.:450mm, 500mm,...1000mm
Factory & Exporter
Concertina razor barbed wire on the wall
We supply: 1. Galvanzied Razor Barbed Wire ( galvanized wire+sheet),
2. Stainless Steel Razor Barbed Wire (stainless steel wire + sheet).
Specifications for blade and coils:
1.Blade Specification
Reference |
Blade Style |
Thickness |
Wire |
Blade |
Blade |
Blade |
BTO-12 |
|
0.5±0.05 |
2.5mm±0.1 |
10mm±1 |
13mm±1 |
26mm±1 |
BTO-18 |
|
0.5±0.05 |
2.5mm±0.1 |
10mm±1 |
13mm±1 |
26mm±1 |
BTO-22 |
|
0.5±0.05 |
2.5mm±0.1 |
20mm±1 |
15mm±1 |
33mm±1 |
BTO-28 |
|
0.5±0.05 |
2.5mm±0.1 |
15mm±1 |
15mm±1 |
33mm±1 |
BTO-30 |
|
0.5±0.05 |
2.5mm±0.1 |
22mm±1 |
16mm±1 |
36mm±1 |
CBT-65 |
|
0.6±0.05 |
2.5mm±0.1 |
60mm±2 |
22mm±1 |
102mm±1 |
2.Coils Specification
Outer diameter |
No.of Loops |
Standard Length per Coil |
Type |
Notes |
450mm |
33 |
7M-8M |
CBT-65 |
Single coil |
500mm |
41 |
10M |
CBT-65 |
Single coil |
700mm |
41 |
10M |
CBT-65 |
Single coil |
960mm |
54 |
11M-15M |
CBT-65 |
Single coil |
500mm |
102 |
15M-18M |
BTO-12.18.22.28.30 |
Cross type |
600mm |
86 |
13M-16M |
BTO-12.18.22.28.30 |
Cross type |
700mm |
72 |
12M-15M |
BTO-12.18.22.28.30 |
Cross type |
800mm |
64 |
13M-15M |
BTO-12.18.22.28.30 |
Cross type |
960mm |
52 |
12M-15M |
BTO-12.18.22.28.30 |
Cross type |
The Length and the diameter of the coil can be designed according to the customers request.

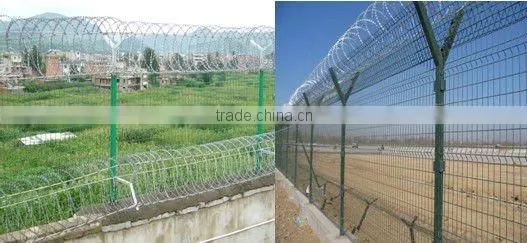

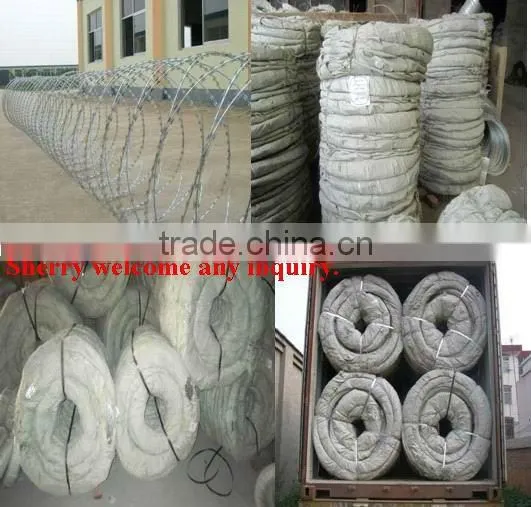

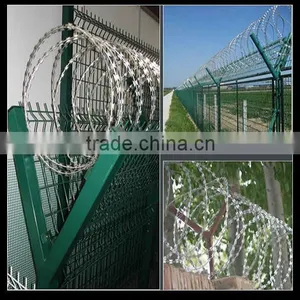

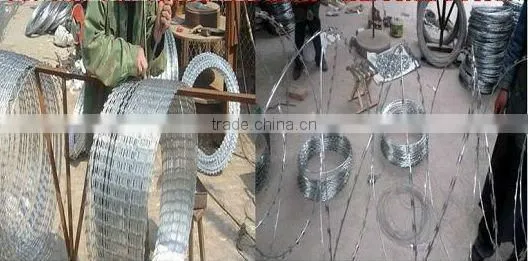

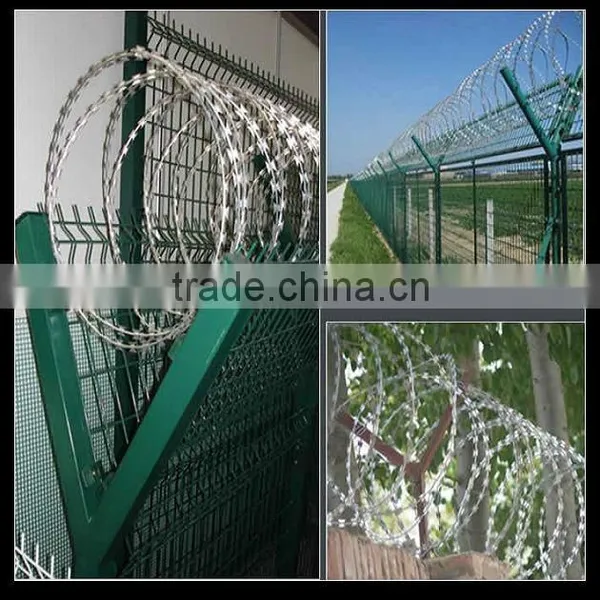

Our product pictures:
Sherry welcome your any inquiry,we assure the most competitive price, good quality as well as timely shipment.
