Specifications
barbed wire reelBarbed distance:3-6inch.
Barbed length:1.3cm-1.5cm.
GI wire,PVC wire,SS wire
ISO9001:2008
barbed wire reel

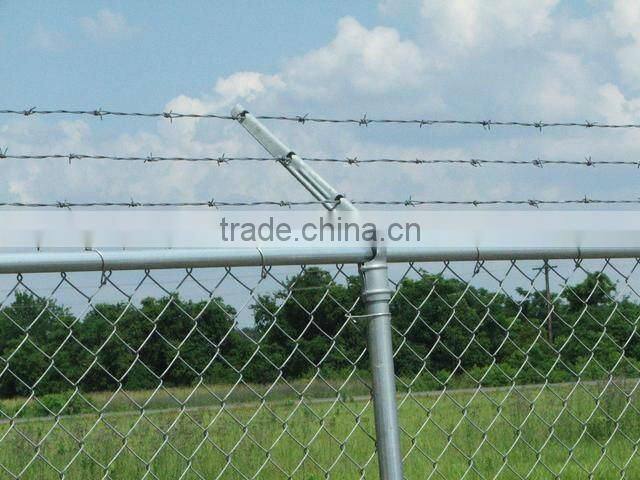

General Use: Barbed Wire is a kind of modern security fencing materials fabricated with high-tensile wire. Barbed Wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

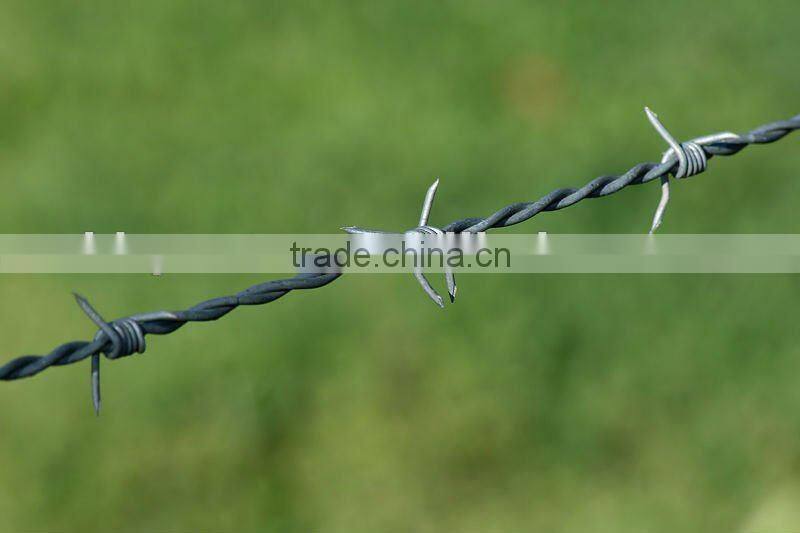

Barbed wire:
Materials: high quality low carbon steel wire, (electric,hot-dip,zinc-plating)PVC wire etc.
Category: stainless steel barbed wire,hot dipped galvanized barbed iron wire,electric galvanized barbed iron wire,PE barbed iron wire,PVC coated barbed iron wire.
Twist types: single twisted barbed wire,double twisted barbed wire,traditional twisted barbed wire and PVC coated barbed wire.
Barbed wire size: 12#×14#×3-6''-16#×16#×3-6''.

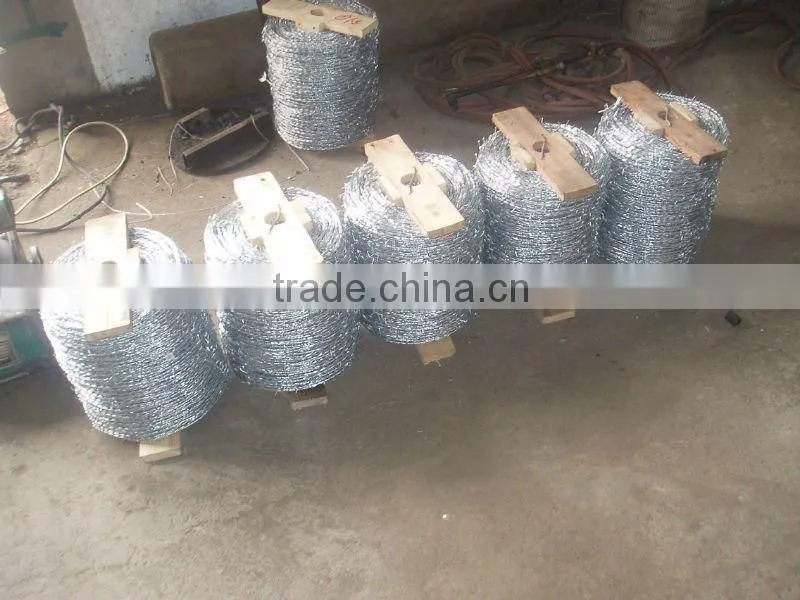

Usages: barbed wire can be packed in different ways,it can be packed by wooden handle,iron axletree and pallet.
ISO9001:2008.
Barbed distance:3-6inch.
Barbed length:1.3cm-1.5cm.

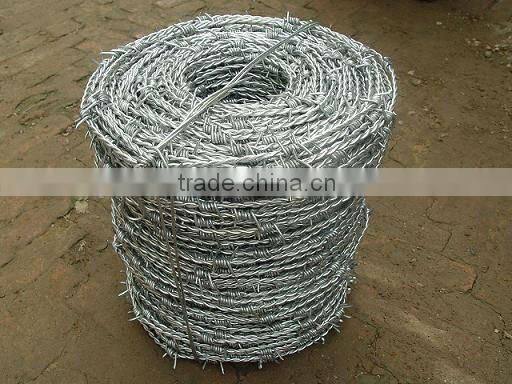

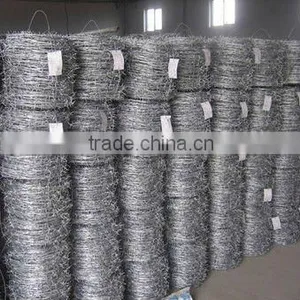

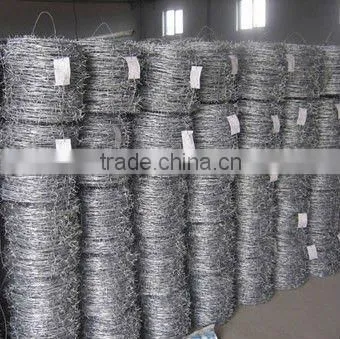

Package: in coils,wooden or steel pallet,carton box,or as customers' requirement.
10)Uses:Used as protection of grass farm,railway,highway,etc
Type Wire Gauge (SWG) Barb Distance (cm) Barb Length (cm)
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire 10# x 12# 7.5-15 1.5-3
12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#
PVC coated barbed wire; PE barbed wire before coating after coating 7.5-15 1.5-3
1.0mm-3.5mm 1.4mm-4.0mm
BWG11#-20# BWG8#-17#
SWG11#-20# SWG8#-17#
PV/CPE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers'request.
Barbed Wire | ||||
Type |
Wire Gauge (SWG) |
Barb Distance (cm) |
Barb Length (cm) |
|
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire |
10# x 12# |
7.5-15 |
1.5-3 |
|
12# x 12# | ||||
12# x 14# | ||||
14# x 14# | ||||
14# x 16# | ||||
16# x 16# | ||||
16# x 18# | ||||
PVC coated barbed wire; PE barbed wire |
before coating |
after coating |
7.5-15 |
1.5-3 |
1.0mm-3.5mm |
1.4mm-4.0mm |
|||
BWG11#-20# |
BWG8#-17# |
|||
SWG11#-20# |
SWG8#-17# |
|||
|
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request. |
|
|
|

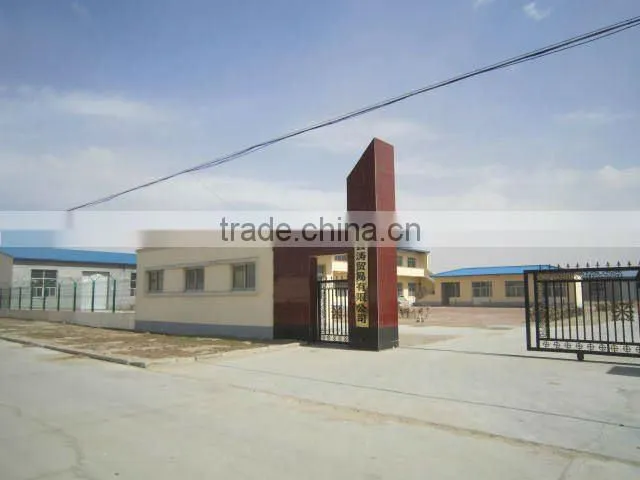

YUNTAO company welcome you to visit our factory.
