Help CenterDouble Sided Thermal Insulation Adhesive Tapes for LED Lighting

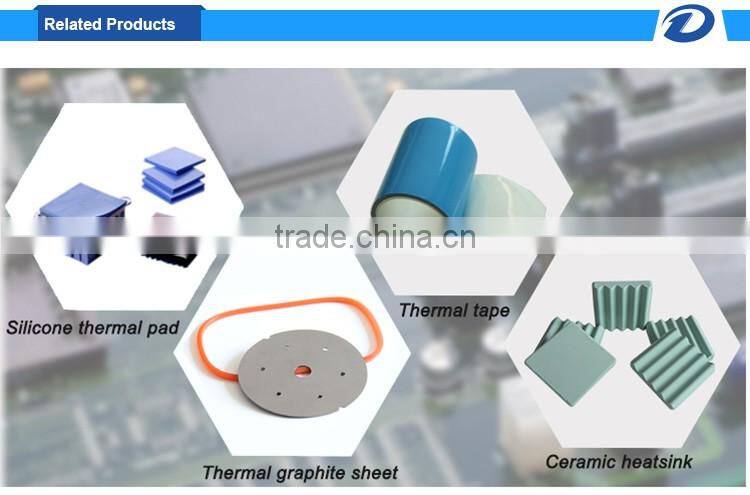

Related Products

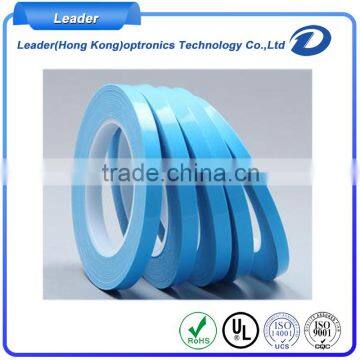

Double Sided Thermal insulation adhesive tapes for LED lighting
Features & Benefits:
-High bond strength to surfaces
-Thermal conductive
-Different thickness available
Configurations:
-Sheet form/roll form/die-cut parts
Available Thickness:
-0.05,0.1, 0.15, 0.2mm -Max.width:1030mm
Properties | 8N12-T05 | 8N12-T10 | 8N12-T15 | 8N12-T20 | ||
Carrier | NONE | NONE | NONE | NONE | ||
Thickness | 0.05mm | 0.10mm | 0.15mm | 0.20mm | ||
Adhesion | ||||||
Peel Strength (PSTC-101)(N/25mm) | >10.78 | >13.72 | >13.72 | >15.68 | ||
Temp Resistance(S) °C (°F) | 180(356) | 180(356) | 180(356) | 180(356) | ||
Temp Resistance(L) °C(°F) | 120(248) | 120(248) | 120(248) | 120(248) | ||
Continues Use. Temp. (°C) | -20 to 120 | -20 to 120 | -20 to 120 | -20 to 120 | ||
Retention (1Kg/Inch/25°C) | >48 | >48 | >48 | >48 | ||
Adhesion(Kg/Inch) | 1.1 | 1.4 | 1.4 | 1.4 | ||
Initial Adhesion(J.DOW) | 8 | 12 | 14 | 16 | ||
Electrical | ||||||
Breakdown Voltage(Kv) | 1.57 | 2.22 | 2.55 | 4.29 | ||
Thermal | ||||||
Thermal conductivity (ASTM D5470) | 1.2w/m.k | 1.2w/m.k | 1.2w/m.k | 1.2w/m.k | ||
Thermal Resistance (AMD 2240)@40PSI | 0.414C*in2/w | 0.558C*in2/w | 1.07C*in2/w | 1.173C*in2/w | ||
Remark:
a. Data for design engineer spec. reference only. Engineers are reminded to test the material in application.
b. Shelf life: 15 months from date of manufacture when stored at storage temperature 23±5 ° C ,relative humidity is 60% in the products original packaging.
Typical Application Includes:
-Heat Sink assembly
-LED Lighting
