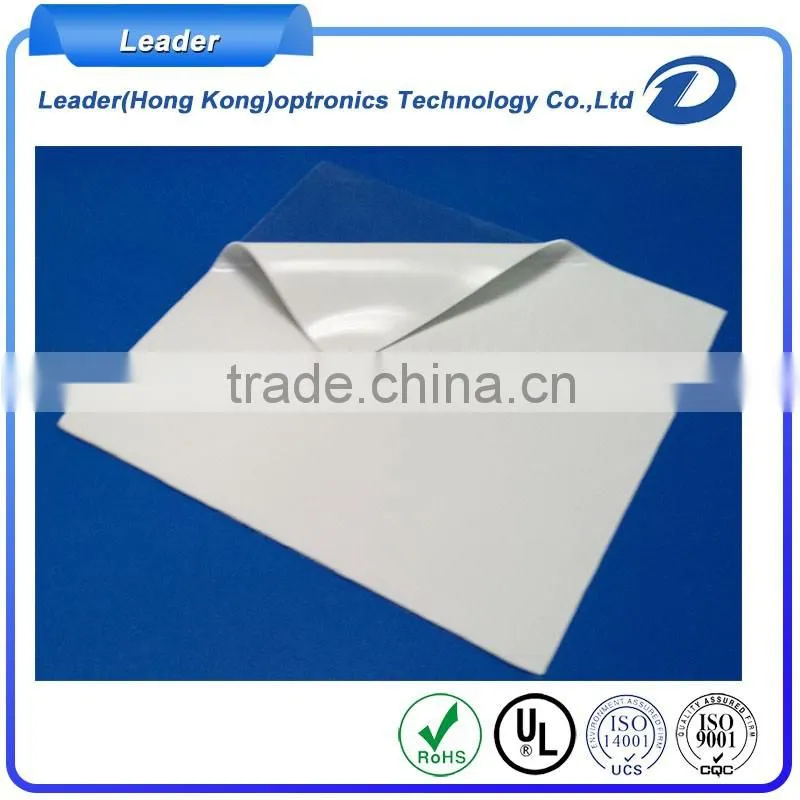

1.2w/m.k Silicon thermal pad
Features&Benefits:
-Thermal conductivity:1.2w/m.k
-Moderate tacky on both sides
-High softness offer high conformability at low stress application
-Electrical isolating
Typical Application:
-Flat panel display -handheld devices
-Telecommunication -Mid to high power module
Configurations:
-Sheet form,precut size
-Tape application available
Size available:
200x400mm
Thickness available:
1.0-12.0mm,increment by 0.5mm
Typical Properties of Gap Pad LD8120 | |||
Property |
Unit |
Metric Value |
Test Method |
Color |
*** |
Light Red |
Visual |
Thickness |
mm |
1.0-12.0 |
ASTM D374 |
Density |
g/cc |
2.3 |
ASTM D792 |
Hardness |
Shore C |
15±5 |
ASTM D2240 |
Tensile Strength |
KN/m |
1 |
ASTM D412 |
Continuous Use Temp. |
°C |
-40-150°C |
EN 344 |
Electrical | |||
Breakdown Voltage |
Kv/mm |
≥6.5 |
ASTM D149 |
Volume Resistivity |
Ω.cm |
3.5×1012 |
ASTM D257 |
Flame rating |
V-0 |
V-0 |
UL 94 |
Thermal | |||
Thermal Conductivity |
W/m.k |
1.2 |
ASTM D5470 |
Q: How to find a right thermal conductivity for your application?
A: It depends on the watts of power source, ability of heat dissipation. For any customers, please contact us for the technical support.
Q: Are thermal pads offered with tacky?
A: Yes, all the thermal pads have its inherent tacky. All the models are natural tacky for two sides, except for the LD8100U,only one side has natural tacky.
Q: Are thermal pads reworkable?
A: It’s depend on the application and the pad being used. Thermal pads have been reused before, however,it’s up to the judgment of product designer, to see whether the pads could withstand reuse.
Q:Will the heat make the thermal pads softer?
A: From -60-150,there is no significant change in the hardness of thermal pads, as gap filler.
Q: What’s the tolerance for the thickness?
A :Normally ±10%.
Q: Are the thermal pads electrical insulating?
A: Yes, all thermal pads are electrically isolated.
Q: What’s the shelf life for thermal pads?
A: Shelf life for thermal pad is one year after the date of manufacture. For the pads with adhesive, the shelf life is 6months after the date of manufacture. After these dates, all the characters should be retested.
Q: Can the thermal pads be with fiberglass?
A: YES, we could have thermal pads with fiberglass center to improve customer specific requirements for the tensile strength.LD8100U has fiberglass on its surface, all other models will be made at your requirement.
