Laptop Thermal Cooling Pad

Name: Laptop Thermal Cooling Pad
Brand: Leader OPUS
SKU: 119003459
Availability: InStock

US$ 0.36 - 4.6 MOQ: 1 Piece

Key Specifications

Brand Name:

Leader OPUS

Model Number:

LD8200

Type:

Insulation Sheet

Dongguan Leader Optronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dongguan

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Leader OPUS

Model Number LD8200

Type Insulation Sheet

Material Other, Silicone

Application High Voltage

Rated Voltage 220V

Tensile Strength 70KN

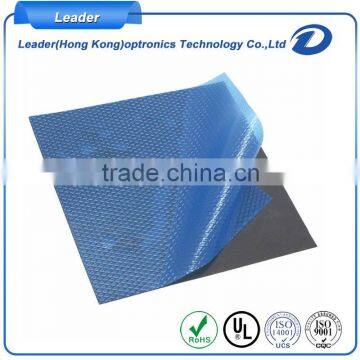

Laptop/Notebook Thermal cooling Pads

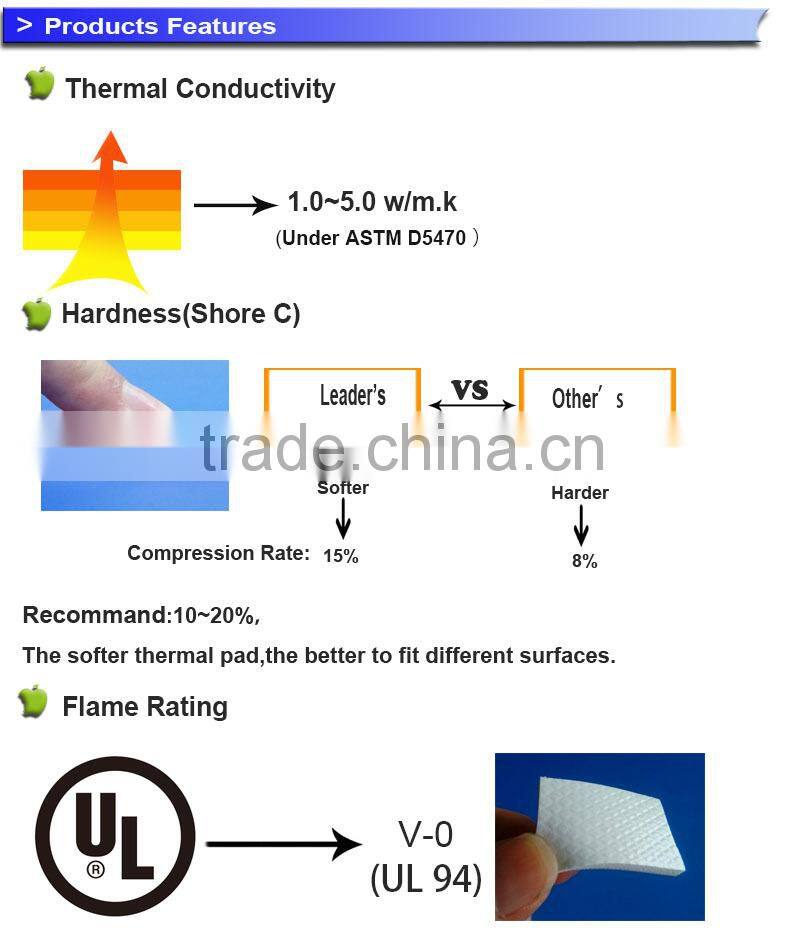

Features&Benefits:

1.Thermal conductivity:2.0W/m.k

2.High conformability and low hardness
3.Electrically insulating

Typical Application:

1.Laptop,module in computer

2.Between electronic components such as Semiconductor,IC,CPU,MOS and heatsink

3.Cooling Module,Thermal module,in all applications where metel housing is used as heatsink

Configurations:

-Sheet form,die-cut parts

-Tape application available

Size available:

200x400mm

Thickness available:

0.5-12.0mm,increment by 0.5mm

Properties:

Typical Properties of Gap Pad LD8200
Property	Unit	Metric Value	Test Method
Color	***	Dark Grey	Visual
Thickness	mm	0.5-10.0	ASTM D374
Density	g/cc	2.8	ASTM D792
Hardness	Shore C	25±5	ASTM D2240
Tensile Strength	KN/m	0.33	ASTM D412
Continuous Use Temp.	°C	-40-150°C	EN 344
Electrical
Breakdown Voltage	Kv/mm	≥6.0	ASTM D149
Volume Resistivity	Ω.cm	1.0×1016	ASTM D257
Flame rating	V-0	V-0	UL 94
Thermal
Thermal Conductivity	W/m.k	2.0	ASTM D5470
