Specifications
Thermal padThermal conductivity:1.0w/m.k
RoHS and Reach Compliant
Cost effective solution power supply
SGS/RoHS/UL/Reach

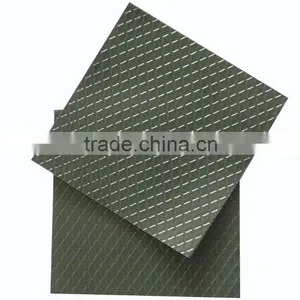

Thermal Pad
Features&Benefits:
-Thermal conductivity:1.0w/m.k
-Slightly tacky on both sides
-Conformable gap filler material at low stress application
-Electrical isolating
-Flame rating:V-0
Typical Application Includes:
-LED Lighting
-Power Supply
-Low power modules,like NB and DT memory
-Power conversion
-Between semiconductor/magnetic components and heat sinks.
Configurations:
-Roll form,sheet form,die-cut parts
-Tape application available
Size available:
Sheet size:200x400mm
Thickness available:
0.25mm,0.3mm,0.5-18.0mm,increment by 0.5mm
Properties:
Typical Properties of Gap Pad LD8100+F100 | |||
Property |
Unit |
Metric Value |
Test Method |
Color |
*** |
Pink&White |
Visual |
Thickness |
mm |
0.5~15.0 |
ASTM D374 |
Density |
g/cc |
2 |
ASTM D792 |
Hardness |
Shore C |
15±5 |
ASTM D2240 |
Tensile Strength |
KN/m |
2.5 |
ASTM D412 |
Continuous Use Temp. |
°C |
-40-150°C |
EN 344 |
Electrical | |||
Breakdown Voltage |
Kv/mm |
≥6.3 |
ASTM D149 |
Volume Resistivity |
Ω.cm |
6.2×1015 |
ASTM D257 |
Flame rating |
V-0 |
V-0 |
UL 94 |
Thermal | |||
Thermal Conductivity |
W/m.k |
1.0 |
ASTM D5470 |
For more details and application direction,welcome to contact our sales!
