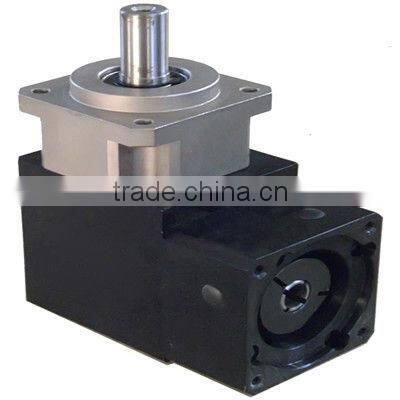

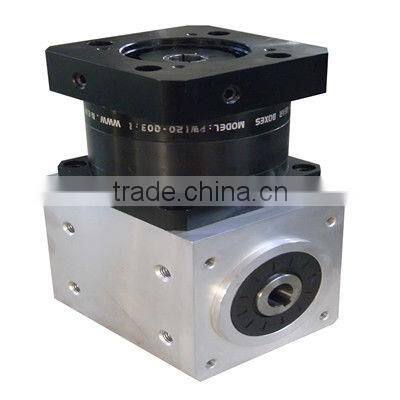

Energy-saving Servo Planetary Gear Head

1.0Our technology

• 3 sizes
• 2 output variants (output flange, output shaft)
• Gear ratios 4 to 10 (single-stage)
• Max drive speed (min-1) up to 6,000
• Rated torque up to 330 Nm
• Acceleration torque up to 550 Nm
• Circumferential backlash < 6 arc min (optional < 3, < 1)

2.0 Description of Tesech Planetary Gearbox

The Tesech  precision planetary gear is characterized by three major design advantages:

Tesech  load compensation ensures minimized friction for smooth running and for outstandingly high synchronizing, and last but not least, a long service life.

The  Tesech compensating coupling has a unique, space-saving angle error compensation feature.  The low mass moment of inertia ensures high motive response.  The coupling operates without backlash, with high rigidity and has length compensation.

The friction optimized  Tesech seals ensure a lower starting inertie.
The thermal load limit is very high due to low friction losses.

3.0Application

• Gantry robots
• Positioning systems for robots
• Automating production
• Manufacturing semiconductors
• Machine tools
• Loading/unloading machines
• Packaging machinery
• Woodworking
• Medical equipment
• CCTV
• Vending machines
• Measuring machines
