AC Gear induction motor 6w-200w
1.0About these small induction motor,there are many kinds:
|
6-200W Gearmotor
Similar types |
1 Phase Induction motor without Gearbox |
Single Phase Reversible Motor | |
Gearmotor with Electromagnetic brake | |
Speed Control Motor with Speed controller | |
Linear Type Gearhead motor with Variable Speed |
we will introduce thest small gear induction motor to you .
2.0 Outstanding features of Induction gearmotors 6w-200w
HP |
6W 15W 25W 40W 60W 90W 120W 140W 180W 200W |
Voltage |
1 Phase 110V 220V 3Phase 220V/380V 415V |
Motor Force Axis |
Cylindrical or Pinion Cut |
Peripheral Wave no |
50/60HZ |
Turning Moment |
0.8-10.2 KG/CM |
Constant speed |
1200-1300rpm under 50HZ 1450-1550RPM under 60hz |
Pairing Bearing |
2GN 3GN 4GN 5GN GU |
Insulation Grade |
E Class Insulation |
Power&Noise |
Capacitive Induction Motor shall used for high power output and low noise single Phase motor
|
Speed control |
For 1 phase gear motor, there are various kinds of speed through the US Speed controller |
|
But for 3 phase gearmotor, speed is controlled by Frequency Inverters. |
3.0RK Reversiable Gearmotor are available

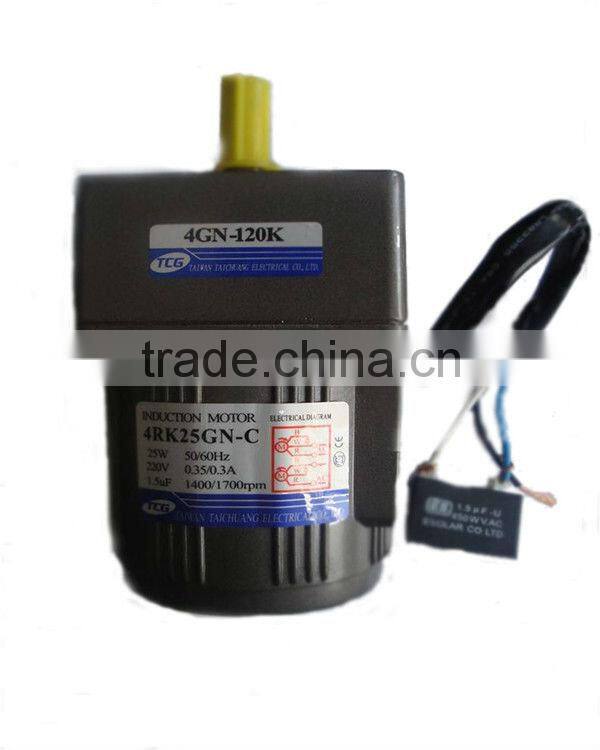

1 Phase RK induction motor
|
*Instantaneous alternate between normal and reversible for motor equipped with balanced windings and built-in simple brake mechanism
|
*Thirty minutes of rated operation. Difference between the induction motor and reversible motor; |
|
the later one can instantaneously be reversible. However, rotating magnetic field & reversible momentum for induction motor occuse in reversible direction. In case no reversible shall be made in loading condition.
|
4.0Gearmotor with Electromagnetci
|
*Always maintain the load properly; for a non-exciting type electrical magnetic brake loading can be kept normally by the brake whenever the power source is off
|
|
*Instantaneous brake: Over-travel in 2-4 cycles only for a single motor;
|
|
*More complex, controllable ,instantaneous normal /reversible time,Allowable stop for 6 time per minute( 3 second or more have to kept for each stop)C&B type of motor is applicable on 100tines of stop per minutes if necessary)
|

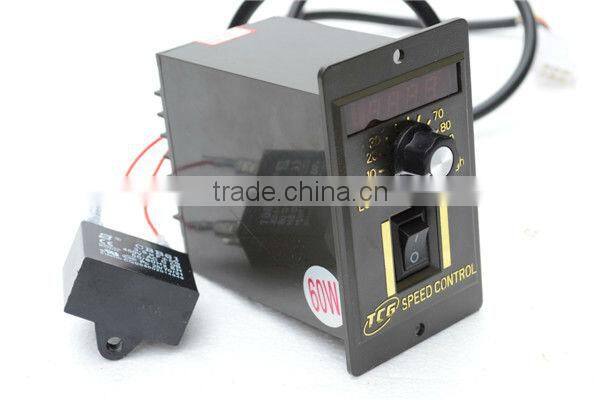

5.0US Speed control Motor
The small gearmotor's speed could be controled by Speed Controller;
|
*Wede range of variable speed is adjustable by using the speed controller.
|
|
*More operational procedure shall be available ,such as ;variable speed selection,normal/reversible.Slower speed reduction etc
|
|
* Built-in rpm sensors.Feed-back control,s contant rpm can be abtained even if there is any frequency variabtion
|

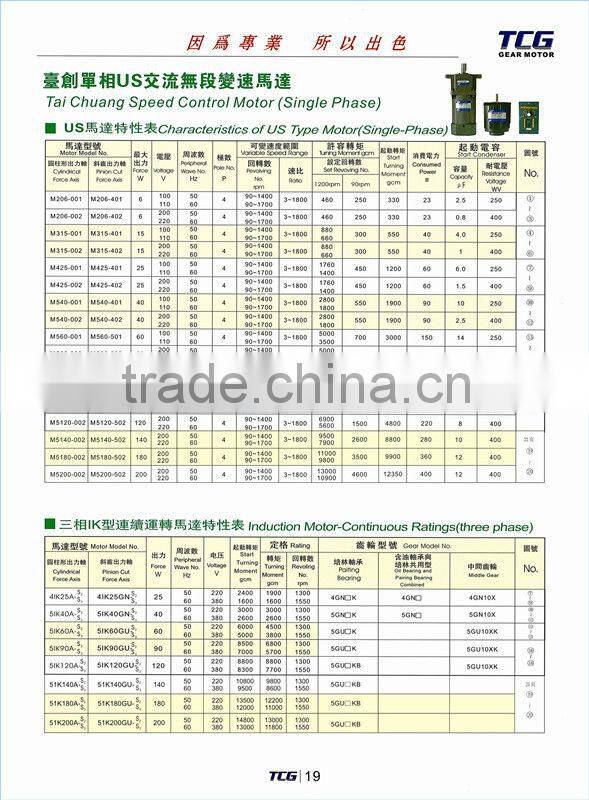

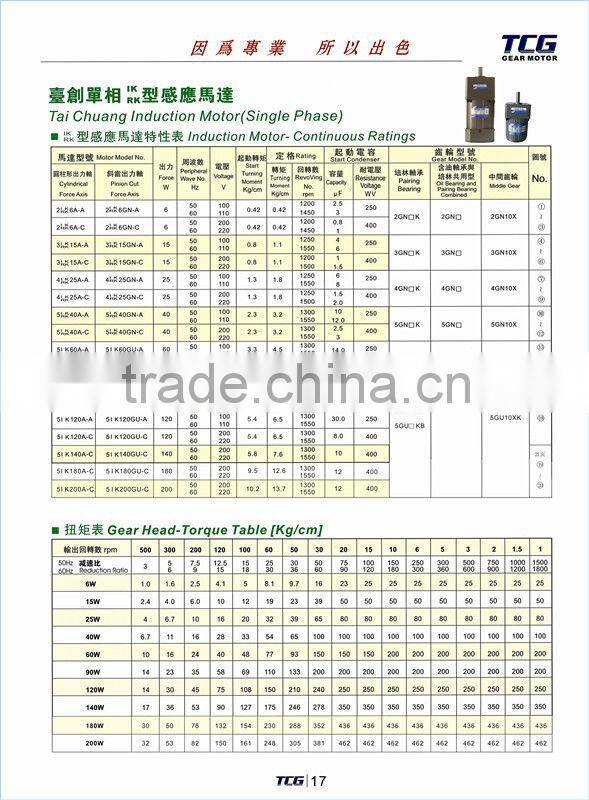

6.0The dater sheet of Induction gearmotors

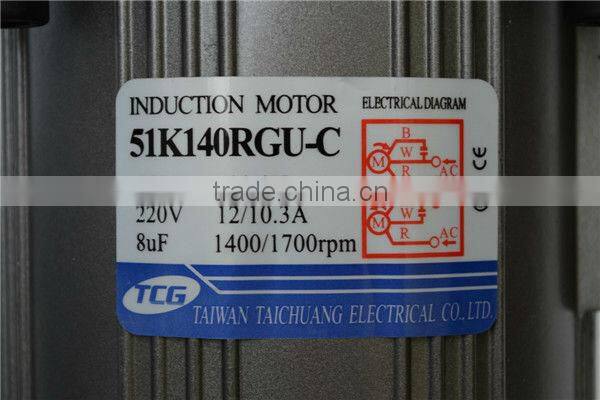

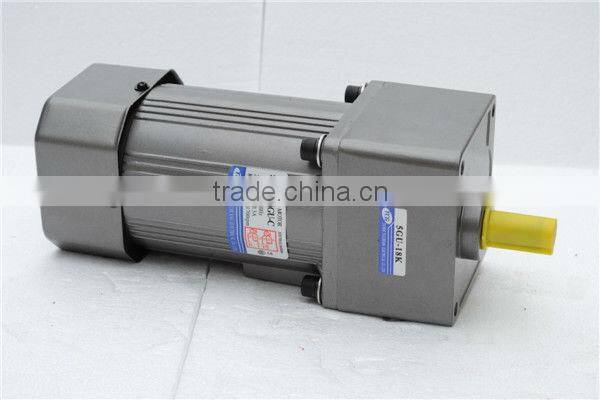

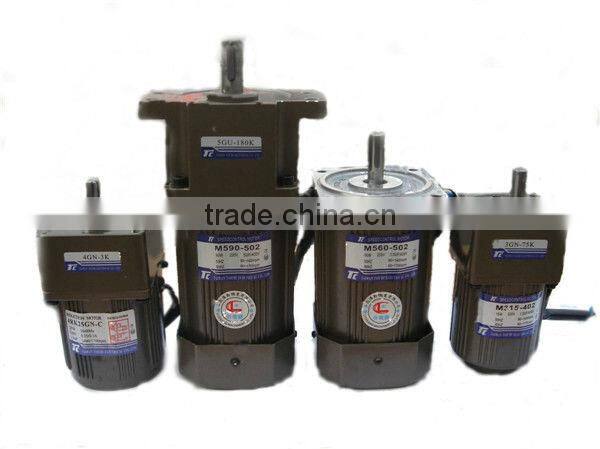

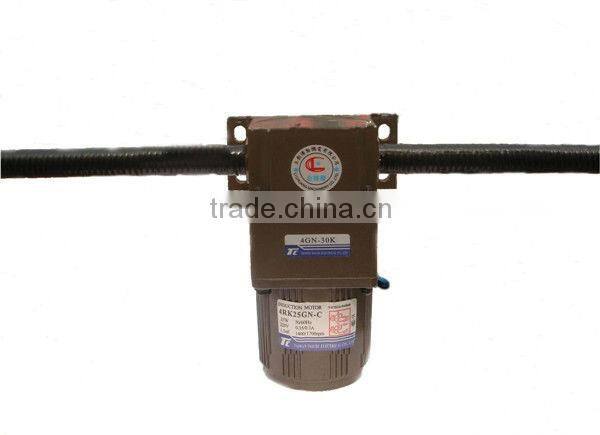

7.0Some pictures of Gearmotor 6w-200w

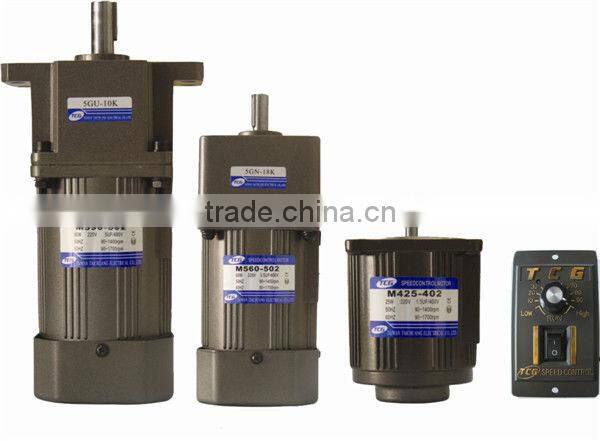

Speed controlling motor as following:
