3000RPM Servo Motor and Servo Controllers

3000RPM Servo Motor and Servo Controllers thumbnail-1
3000RPM Servo Motor and Servo Controllers photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
Maxsine
Model Number:
110MSL04030F&EP3-GL120F
Contact Supplier Request Quote Chat Now
Wuhan Maxsine Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen/Wuhan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name Maxsine
Model Number 110MSL04030F&EP3-GL120F
Motor Type AC Motor

Specifications

1'Set parameter by Servo Software
2'sustaining Modbus agreement
3'with simple PLC function
4'strong overload capacity

Production Description of Servo Motor and Servo Driver
3000RPM servo motor and servo controllers

  • All-digital AC Servo Driver: currently covers power range from 50w to 5.5kw.

  • Permanent Magnet AC Servo Motor: currently covers torque from 0.6Nm to 48Nm

  •                                                                   and power from 50w to 7.2kw.



GOOD NEWS:

Our SERVO DRIVER EP1C, EP1C-A & EP3 could be set parameter by English Edition Servo Software on 32bits & 64bits system.

With the coming of Thanksgiving Day and Christmas, there is a  Big Promotion in our company to feedback you.

Introduction of  Servo Motor 110MSL04030F



Name servo motor
Model 110MSL04030F
Rated Power 1200w
Rated Line Voltage 3 phase 220VAC
Rated Line Current 5.0A
Rated Speed 3000rpm
Rated Torque 4.0Nm
Peak Torque 12.0Nm
Rotor Inertia 0.54*10-3 kg·m2
Lines of Encoder 2500ppr
Motor Insulation Class ClassB(130°C)
Operating Environment

Temperature: -20°C ~ +50°C;

humidity: relative humidity (RH)<90%

(not including condensing condition)







 Introduction of Servo Driver EP3 Specification



Model GL 120F
Rated output Power(kW) 5.0
Rated output current(A) 24.0
Input power

 Main

supply

 3-phase 220VAC -15%~+10% 50/60Hz
Control supply 1-phase 220VAC-15%~+10% 50/60Hz
Environment Temperature Working:0°C~ 40°C Storing:-40°C~ 50°C
Humidity Working:40% ~ 80%(non condensing) Storing:under 93%(non condensing )
Atmospheric Pressure 86kPa ~ 106 kPa
Control Mode vector control
Regenerative Braking Built-in/built-out
Feedback Mode 2500 line incremental encoder or 17 bit absolute encoder
Control Mode Position, speed, torque, position/ speed,speed/torque,position/torque
Digital input 5 Programmable input terminals(Optical Isolation)
Digital Output 3 Programmable input terminals(Optical Isolation)
Position Input Frequency differential input:≤500kHz(kpps), single-ended input:≤200kHz(kpps)
instruction mode Pulse+Signal,CCW Pulse/CW Pulse, Two-phase A/ orthogonal Pulse
Electronic Gear Ratio 1 ~ 32767/1 ~ 32767
Speed Simulation command input -10V ~ +10V,input impedance10kΩ
Instructions Acceleration And Deceleration Parameters set
Instructions source analog,Internal speed instructions
Torque Simulation command input -10V ~ +10V,input impedance10kΩ
Speed restriction Parameters set
Instructions source analog,Internal torque instructions
Special Functions ZRN ,Gain switch,mechanical resonance wave trap, sustaining Modbus agreement
Surveillance Function Revolving Speed,Current Position,Positional Deviation,Motor Torque,Motor Current,Instructions Pulse Frequency etc.
Defensive function Overspeed,Overvoltage,Overcurrent,Overload,Abnormal brake,Abnormal Encoder,out of tolerance etc.
Feature Speed Frequency Response ≥300Hz
Speed Fluctuation Rate <±0.03%(load 0 ~ 100%); <±0.02%(power-15% +10%)
Speed Ratio
1:5000

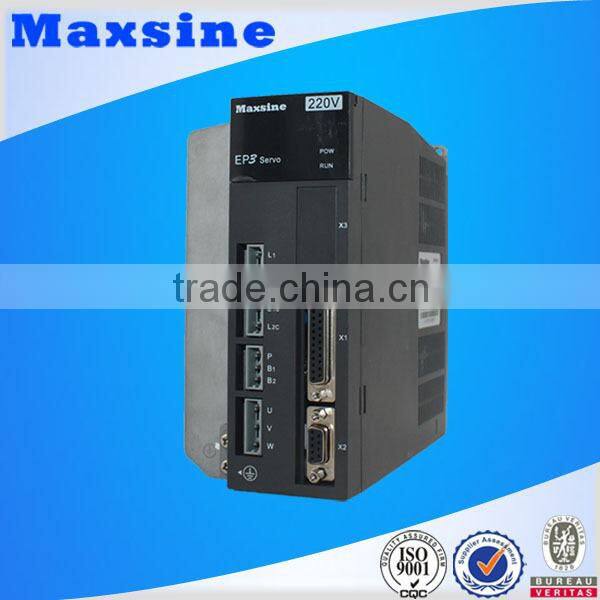

Introduction of Servo Driver EP3-GL120F

3000RPM servo motor and servo controllers



Introduction of Servo Driver EP3 Size

3000RPM servo motor and servo controllers 3000RPM servo motor and servo controllers

Details show

3000RPM servo motor and servo controllers



3000RPM servo motor and servo controllers

Application
  • CNC industry
  • Textile industry
  • Robot industry
  • Paper making industry
  • Industrial spring machine
  • Printing and packaging industry
  • Mechanical spring machine industry

Shipping
  1. EXPRESS(sample): around 5-7 working days to arrive
  2. EXPRESS: around 3 weeks to arrive
  3. Ocean carriage: usually less than 2 months
Payment
  1. Wire Transfer
  2. Western Union
  3. Alibaba B2B Credit Card
Certification

3000RPM servo motor and servo controllers



3000RPM servo motor and servo controllers

Packing
After inspection the goods are packed in plastic bags and then carefully packed in cartons.

Services
