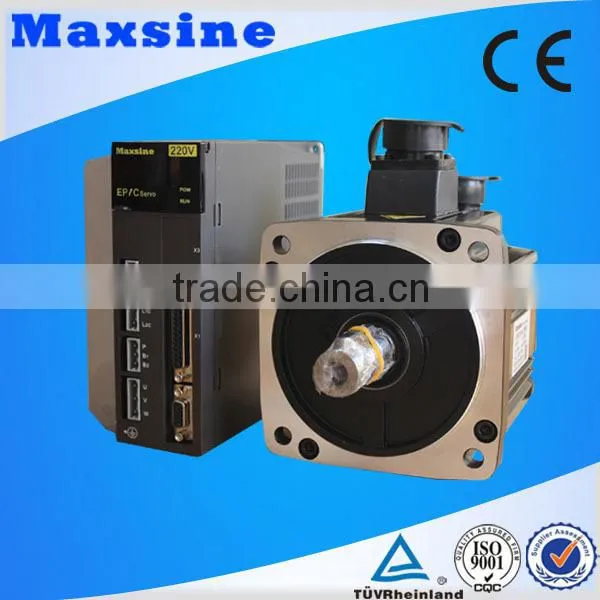

10nm Brushless Motor and Motor Controller

Wuhan Maxsine Electric Co., Ltd.
10nm Brushless Motor and Motor Controller thumbnail-1
10nm Brushless Motor and Motor Controller photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
Maxsine
Model Number:
130MSL10025F&EP1C-TL25F
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name Maxsine
Model Number 130MSL10025F&EP1C-TL25F
Motor Type AC Motor

Specifications

1' 2500 ppr TAMAGAWA encoder
2' low power
3' easy to operate
4' easy maintenance
5' wide application

Production Description of Servo Motor and Servo Driver
10nm brushless motor and motor controller

  • All-digital AC Servo Driver: currently covers power range from 50w to 5.5kw.

  • Permanent Magnet AC Servo Motor: currently covers torque from 0.6Nm to 48Nm

  •                                                                   and power from 50w to 7.2kw.





Introduction of  Servo Driver 130MSL10025F



Nameservo motor
Model130MSL10025F
Rated Power2600w
Rated Line Voltage3 phase 220VAC
Rated Line Current10.0A
Rated Speed2500rpm
Rated Torque10.0Nm
Peak Torque25.0Nm
Rotor Inertia1.94*10-3 kg·m2
Lines of Encoder2500ppr
Motor Insulation ClassClassB(130°C)
Protection LevelIP65
Operating Environment

Temperature: -20°C ~ +50°C;

humidity: relative humidity (RH)<90%

(not including condensing







Introduction of EP1C-TL25F

10nm brushless motor and motor controller





Introduction of EP1C Size

10nm brushless motor and motor controller

   size/modelTL25F
A180
B95
C200
D189
E84



Introduction of EP1C Specification



ModelTL05FTL10FTL15FTL25FTL35FTL55F
Input Power   3-phase AC220V     -15% ~ +10%         50/60Hz
EnvironmentTemperature Working: 0°C~ 40°C             Storing: -40°C~ 50°C
Humidity   Working:40% ~ 80%(non condensing)       Storing:under 93%(non condensing )
Atmospheric Pressure   86kPa ~ 106 kPa
Protection Level   IP20
Control Mode   vector control
   Regenerative Braking   Built-in/Built-out
Feedback Mode   2500 line incremental encoder,encoder with fewer lines
Control Mode   Position
Digital input5 Programmable input terminals(Optical Isolation) Function:SRVON ,ACLR ,CW Drive inhibition,CCW Drive inhibition,CW Torque inhibition,CCW Torque inhibition,Emergency Stop,Electronic gear selection 1,electronic gear selection2,Position deviation clear,pulse input inhibition
Digital Output3 Programmable input terminals(Optical Isolation) Function:SRDY ,alarm,Finish Orientation Output ,Reach Speed ,electro-magnetic brake,Torque restrictions
Signal Output of encoderSignal TypesA,B,Z Differential output,Z signal open-collector output
PositionInput Frequencydifferential input:≤500kHz(kpps), single-ended input:≤200kHz(kpps)
instruction modePulse+Signal,CCW Pulse/CW Pulse, orthogonal Pulse
Electronic Gear Ratio   1 ~ 32767/1 ~ 32767
Surveillance FunctionRevolving Speed,Current Position,Positional Deviation,Motor Torque,Motor Current,Instructions Pulse Frequency etc.
Defensive functionOverspeed,Overvoltage,Overcurrent,Overload,Abnormal of main Power,Abnormal Encoder,out of tolerance etc.
FeatureSpeed Frequency Response   ≥300Hz
Speed Fluctuation Rate   <±0.03%(load 0 ~ 100%); <±0.02%(power-15% +10%)
Speed Ratio3.513889



Details show



10nm brushless motor and motor controller





10nm brushless motor and motor controller

Application
  • CNC industry
  • Textile industry
  • Robot industry
  • Paper making industry
  • Industrial spring machine
  • Printing and packaging industry
  • Mechanical spring machine industry

Shipping
  1. EXPRESS(sample): around 5-7 working days to arrive
  2. EXPRESS: around 3 weeks to arrive
  3. Ocean carriage: usually less than 2 months
Payment
  1. Wire Transfer
  2. Western Union
  3. Paypal
Certification
10nm brushless motor and motor controller
Packing
After inspection the goods are packed in plastic bags and then carefully packed in cartons.
