Home > Electrical & Electronics > Variable-Frequency Drive > 10nm ac Servo Motor With 2.5kw Servo Controller

10nm ac Servo Motor With 2.5kw Servo Controller

Name: 10nm ac Servo Motor With 2.5kw Servo Controller
Brand: Maxsine
SKU: 118971445
Availability: InStock

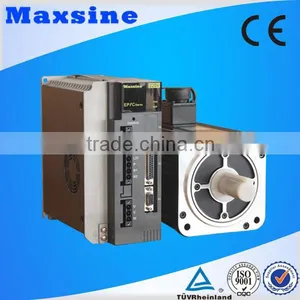

10nm ac Servo Motor With 2.5kw Servo Controller thumbnail-1

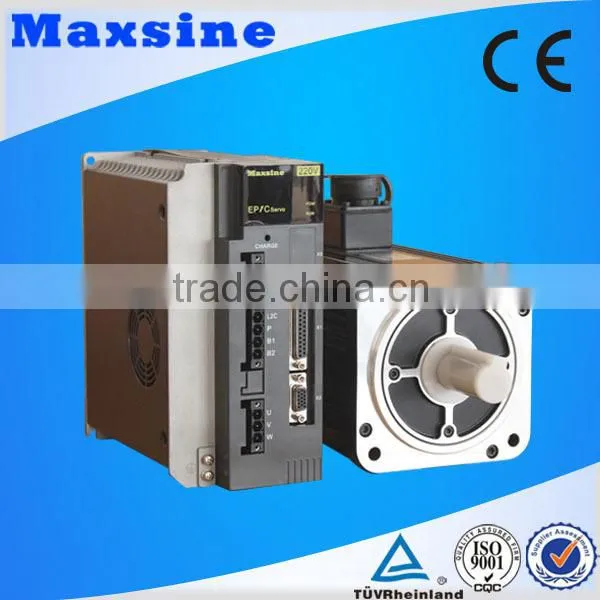

10nm ac Servo Motor With 2.5kw Servo Controller photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Hubei, China

Brand Name:

Maxsine

Model Number:

130MSL10025F&EP1C-TL25F

Contact Supplier Request Quote Chat Now

Wuhan Maxsine Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hubei, China

Brand Name Maxsine

Model Number 130MSL10025F&EP1C-TL25F

Motor Type AC Motor

Specifications

1' 2500 ppr TAMAGAWA encoder
2' low power
3' easy to operate
4' easy maintenance
5' wide application

Production Description of Servo Motor and Servo Driver

All-digital AC Servo Driver: currently covers power range from 50w to 5.5kw.

Permanent Magnet AC Servo Motor: currently covers torque from 0.6Nm to 48Nm
and power from 50w to 7.2kw.

Introduction of Servo Driver 130MSL10025F

Name	servo motor
Model	130MSL10025F
Rated Power	2600w
Rated Line Voltage	3 phase 220VAC
Rated Line Current	10.0A
Rated Speed	2500rpm
Rated Torque	10.0Nm
Peak Torque	25.0Nm
Rotor Inertia	1.94*10^-3 kg·m²
Lines of Encoder	2500ppr
Motor Insulation Class	ClassB(130°C)
Protection Level	IP65
Operating Environment	Temperature: -20°C ~ +50°C; humidity: relative humidity (RH)<90% (not including condensing

Introduction of EP1C-TL25F

Introduction of EP1C Size

size/model	TL25F
A	180
B	95
C	200
D	189
E	84

Introduction of EP1C Specification

Model			TL05F	TL10F	TL15F	TL25F	TL35F	TL55F
Input Power			3-phase AC220V -15% ~ +10% 50/60Hz
Environment	Temperature		Working: 0°C~ 40°C Storing: -40°C~ 50°C
	Humidity		Working:40% ~ 80%(non condensing) Storing:under 93%(non condensing )
	Atmospheric Pressure		86kPa ~ 106 kPa
Protection Level			IP20
Control Mode			vector control
Regenerative Braking			Built-in/Built-out
Feedback Mode			2500 line incremental encoder,encoder with fewer lines
Control Mode			Position
Digital input			5 Programmable input terminals(Optical Isolation) Function:SRVON ,ACLR ,CW Drive inhibition,CCW Drive inhibition,CW Torque inhibition,CCW Torque inhibition,Emergency Stop,Electronic gear selection 1,electronic gear selection2,Position deviation clear,pulse input inhibition
Digital Output			3 Programmable input terminals(Optical Isolation) Function:SRDY ,alarm,Finish Orientation Output ,Reach Speed ,electro-magnetic brake,Torque restrictions
Signal Output of encoder			Signal Types	A,B,Z Differential output,Z signal open-collector output
Position		Input Frequency	differential input:≤500kHz(kpps), single-ended input:≤200kHz(kpps)
		instruction mode	Pulse+Signal,CCW Pulse/CW Pulse, orthogonal Pulse
		Electronic Gear Ratio	1 ~ 32767/1 ~ 32767
Surveillance Function			Revolving Speed,Current Position,Positional Deviation,Motor Torque,Motor Current,Instructions Pulse Frequency etc.
Defensive function			Overspeed,Overvoltage,Overcurrent,Overload,Abnormal of main Power,Abnormal Encoder,out of tolerance etc.
Feature		Speed Frequency Response	≥300Hz
		Speed Fluctuation Rate	<±0.03%(load 0 ~ 100%); <±0.02%(power-15% +10%)
		Speed Ratio	3.513889
