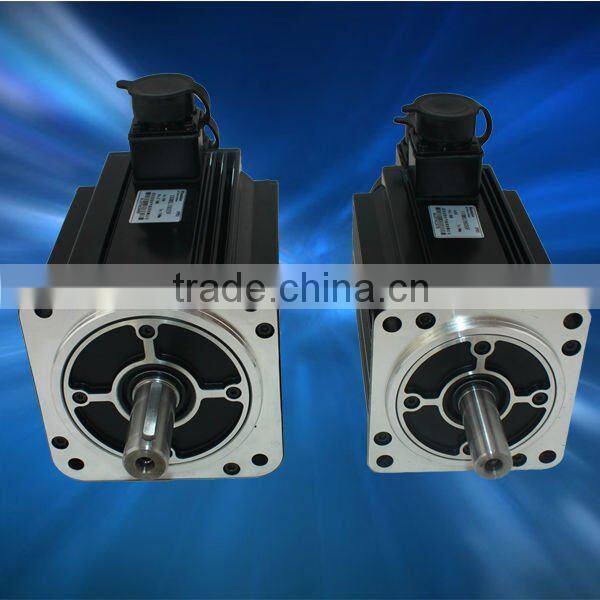

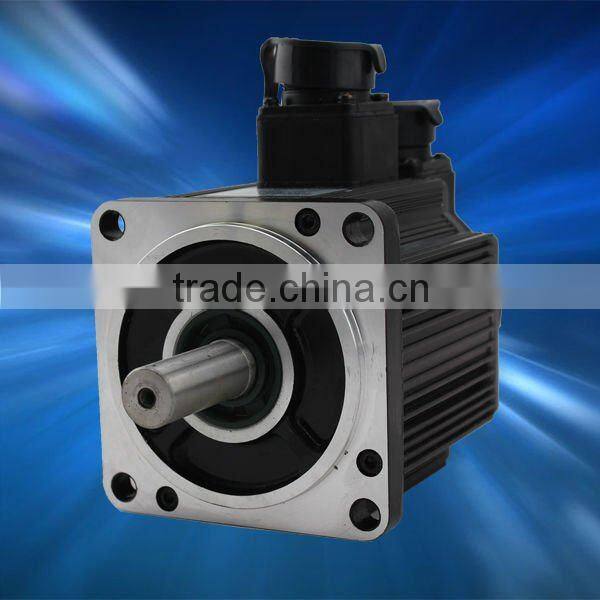

3.8kw ac servo motor with tamagawa high precision encoder
- 100 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- 45KN vibration motors 2.2KW Explosion proof vibrator motor
- YBZ35b-4W 35KN 2.2KW replacement of MVE3500/15D-SV-75D0 vibrator motor 380V/400V 50HZ
- ABB General performance motors
- MPL-A430H-HJ24AA rotary servo motor MPL-A430H-HJ24AA
- Replacement of Derrick electric vibrator motor
- MPL-A430H-MK24AA rotary servo motor MPL-A430H-MK24AA
Product Details
Brand Name: | Maxsine | Model Number: | 150MSL15025F | Type: | Servo Motor |
Frequency: | 50Hz, 50hz | Output Power: | 3.8kw | Protect Feature: | Other, Waterproof, IP65 |
Certification: | CE, Other, CE, ISO,TUV | AC Voltage: | 208-230 / 240 V | ||
Place of Origin: | Hubei, China | Efficiency: | IE 3 |
Product Description
Specifications
1' 220V AC 50hz 3 phase2' 2500 ppr TAMAGAWA incremental encoder
3' rated power 3.8kw
4' 2500rpm, 15nm
5' CE, ISO, TUV
3.8kw ac servo motor with tamagawa high precision encoder
About our company
Wuhan Maxsine Electric Co., Ltd.was established in East Lake Development District, Wuhan City, Hubei province in 2004.Since its inception, it has been committed to provide advanced products and firstclass servicesto customers in the industrial automation field.Alldigital AC Servo Driver and Permanent Magnet AC Servo Motor are core products of the company. With continuous effort of the staff for nearly 10 years and technical accumulation and innovation of the technical team for more than 20 years,the company has succeeded in holding both technology leading status and the biggest market share in China. At present, the products of Wuhan Maxsine Electric Co., Ltd such as Permanent Magnet AC ServoMotor and Servo Driver have been chosen and approved by more and more customers and been .
Maxsine Products
All-digital AC Servo Driver:
1' Model series:EP100 series, EP1 series, EP1C series, EP2 series, EP3 series;
2' Power range:currently covers power range from 50 W to 5.5 kW.
Permanent Magnet AC Servo Motor:
1' Model series:40 series, 60 series, 80 series, 110 series, 130 series, 150 series, 180 series;
2' Power range:currently covers torque from 0.6 Nm to 35 Nm and power from 50 W to 5.5 kw.
Application fields
1. Lathe industry
Numerical control lathe is the first industry field we enter. Maxsine EP100 series AC Servo Drives has taken up very large market share in this field. It becomes the standard that using Permanent Brushless Servo Motor instead of step motor in the numerical control machine. Part of highend products begin to be equipped with Permanent Magnet Linear Servo System. And it becomes a hot spot that adopting high speed Permanent Magnet AC Servo System to replace Asynchronous Frequency Inverter Drive in the main shaft transmission in order to improve efficiency and speed.
2. Textile industry
Textile industry is an important industry field in which AC Servo System is applied widely. At present, there are many industrial equipments adopting AC Servo System such as highgrade carding machine, drawing frame which could selfregulate and level uniformly, new roving machine, CNC spinning frame, section warper, slasher, and roller printing machine etc.
3. Printing and packaging industry
Equipping Servo Control System in packing equipment could increase the unit yield, improve the utilization rate of resources, increase the variety adaptability and improve the quality of products. Also, in the printing industry, flexographic press has become the main power widely used in all kinds of environmental printing and packaging industry like labels, wrapping paper, paper bags, paper box, paper cups of food, medical, books and cosmetic industries. This equipment adopts servo single shaft driving control technology and the closed loop tension control to keep printing tension stability, setting accurately, and operating conveniently, which could fully meet all kinds of printing occasions need.
4. Robot industry
In robot field, Brushless Permanent Magnet Servo System has been put into practice widely. Industrial robot have multiple degrees of freedom so that each industrial robot needs more than 10 sets Servo Motors. International industrial robot adopts special Servo System, which asks higher reliability requirements including uniting multi-axis in one, modularizing, special heat dissipation structure, and special control modes etc.
5. Mechanical spring machine industry
Mechanical spring manufacturing is a high precision manufacturing process, so it has higher requirement to the electrical servo system of spring manufacturing mechanical. Our EP3 Series AC Servo System has successfully applied to the mechanical spring machines. It greatly simplifies the debugging process of parameters and ensures smooth running of the equipment.
6. Paper making industry
Micro Servo System was firstly applied to the inspection field of military and robot industry in 1990s. Nowadays, it becomes to develop from circuit board printing and rolling technology to paper processing field. For promoting the precision, quality and yield of paper processing field to a new level, it is destined that this adaptable design Micro Servo System would replace the pneumatic actuators.
Advantage service
1' Delivery on time
2' Strong service team
3' Factory direct price
4' Easy for installation and maintenance
5' The fewest MOQ is offered. You can purchase 1 set for testing before you place a big order. We will send
samples by express like DHL or Fedex.
6' A variety of special specifications for customized products could be provided for customers with
comprehensive solutions.
7' Welcome to visit our company.
8' For more information about our products,please feel free to contact us by email or telephone.
About this product

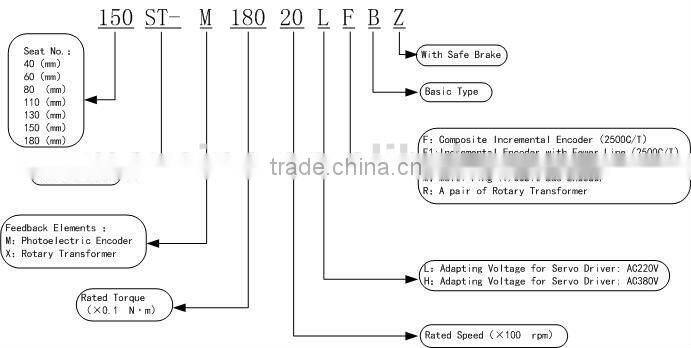

Introduction of 150 series Models
Frame size: 40,60,80,90,110,130,150,180
Feedback Component Mark: M is Photoelectric Encoder
Performance Parameter Mark: First Three are Rated Torque
Last two are Rated Speed
e.g.:Performance Parameter Mark 19015 indicates the rated torque is 19Nm, rated speed is 1500rpm.
Derved Mark: Z-electric brake
Detailed parameters of 150 series
Motor Model | 150 series | |||
150ST-M15025 | 150ST-M18020 | 150ST-M23020 | 150ST-M27020 | |
Rated Power(W) | 3.8 | 3.6 | 4.7 | 5.5 |
Rated Line Voltage(V) | 220 | 220 | 220 | 220 |
Rated Line Current (A) | 16.5 | 16.5 | 20.5 | 20.5 |
Rated Speed (rpm) | 2500 | 2000 | 2000 | 2000 |
Rated Torque (N·m) | 15 | 18 | 23 | 27 |
Peak Torque (N·m) | 45 | 54 | 69 | 81 |
Rotor Inertia (kg·m2) | 6.15×10-3 | 6.33×10-3 | 8.94×10-3 | 11.19×10-3 |
Weight (kg) | ||||
Lines of Encoder (PPR) | 2500 | |||
Motor Insulation Class | ClassB(130°C) | |||
Protection Level | IP65 | |||
Operating Environment | Temperature:-20°C~ +50°C; humidity:relative humidity (RH)<90%(not including condensing condition) |

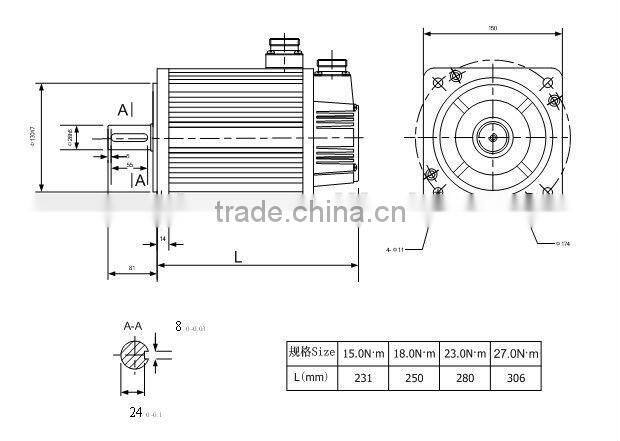

Installation Dimension
Installation precaution:
1) Installation/disassembly components coupled to the motor shaft end ,do not hit shaft hard to prevent the other side of motor shaft encoder was knocked out bad.
2) Striving to make the best of its shaft toprevent vibration and bearing damage.
Other pictures
