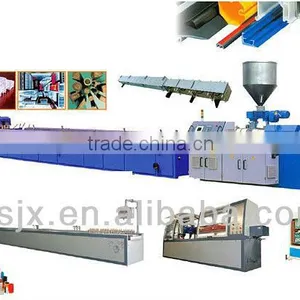

UPVC WPC Profile Extrusion Machine
- 36 Set / Sets per Month
- shanghai
- T/T
Product Details
Condition: | New | Application: | Profile | Plastic Processed: | PVC |
Screw Design: | Double-screw | Place of Origin: | Jiangsu, China | Brand Name: | Gaosheng UPVC WPC Profile Extrusion Machine |
Model Number: | SJYF UPVC WPC Profile Extrusion Machine | Voltage: | 380V 50HZ UPVC WPC Profile Extrusion Machine | Dimension(L*W*H): | 16000x1200x1600mm |
Weight: | 9T | Certification: | CE |
Product Description
Specifications
UPVC WPC Profile Extrusion Machine1.sharping length:2.1m
2.speed:0.48m/min
3.cutting size:100x70mm
4.CE certification
UPVC WPC Profile Extrusion Machine

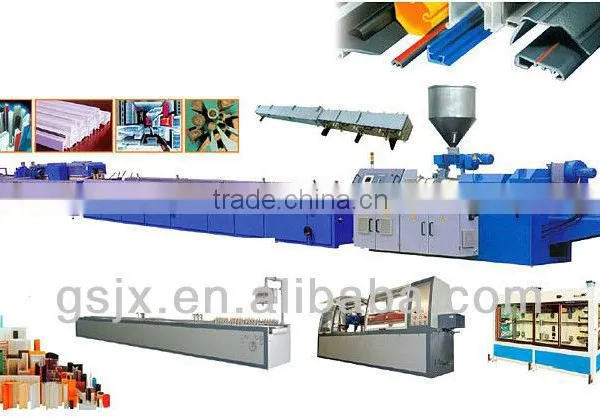

UPVC WPC Profile Extrusion Machine--Features:
WPC profile extrusion machine is the manufacture facilities of plastic profile materials, including window and door series profile, plate, sheet, foamed profile and foamed ornament plate.
The bid size plastic door and window profile production line is developed by our corporation. Adopting the advanced technology from abroad, and formed a complete system with twin conical screw extruder. It features high automation degree, stable work performance, high capacity and high efficiency.
Mould:
UPVC WPC Profile Extrusion Machine ---advantages:
1.Needless granulating of materials, mixed with wood powder, the material can be directly used to extrude wood-plastic profiles.
2.Also suitable material: PE, PP+ Wood powder, PVC+ Wood powder.
3.Applicable for producing salver, packaging box board and decorative sheets, etc.
4.PVC Profile Production Line has compact structure, good plastification, high output, long life and other advantages.
5.The down stream equipment includesvacuum calibration and cooling unit,hauloff unit, cutting machine and stacker.The calibration unit is equipped with large forced cooling system so that it can provide perfect calibration effect.
6.The haul-off unit uses two lines of caterpillar.The lower one is fixed and the upper one can be adjusted according to the plate size.
7.The cutting machine is equipped with PLC control system which helps to set length and provide accurate automatic cutting. The stacker is covered with rubber grip blocks to prevent products from damage
UPVC WPC Profile Extrusion Machine --Process Flow:
Raw material +wood power+ additive → mixing → granulating → conical twin-screw extruder → profile extrusion mould → cool molding die → vacuum calibration support → traction→ cutter → rack → finished product
Item
| SJYF1 | SJYF2 | SJYF3 |
Sharping Table Length(mm)
| 2100 | 4000 | 6000 |
Vacuum Pump(set)
| 1 | 3 | 4 |
Max. Pumping Volume(m/min)
| 0.48 | 10 | 12 |
Cross Adjustment of Shaping Table(mm)
| 80 | 40 | 80 |
Up-Down Adjustment of Shaping Table(mm)
| 100 | 200 | 60 |
Max. Drawing Force(N)
| 3000 | 25000 | 30000 |
Max. Grip Force(N)
| 2500 | 15000 | 20000 |
Drawing Speed(m/min)
| 0.3-4.5 | 0.4-6 | 0.4-4 |
Max. Cutting Size(mm)
| 100x70 | 210x160 | 210x120 |
Total Power (dont including extruder)(kw)
| 5 | 29 | 35 |
Appearance Size (LxWxH)(mm)
| 16000x1200x1600 | 24000x1500x1800 | 28000x1600x1800 |
Weight(kg)
| 2000 | 4500 | 6000 |
If you are interested in plastic profile production machine,please feel free to contact us.
Thanks and best regards in advance.
Amy Su
zhangjiagang gaosheng machinery co.,ltd
