Pvc Powder High Speed Blending Machine

Pvc Powder High Speed Blending Machine photo-1
US$ 3,900 - 19,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Paddle
Product Type:
Other, mixing equipment
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Mixer Type Paddle
Product Type Other, mixing equipment
Application Powder
Additional Capabilities Drying
Place of Origin Jiangsu, China
Brand Name Gaosheng pvc powder high speed blending machine
Model Number SRL-Z200/500 pvc powder high speed blending machine
Voltage 380V 50HZ or customized
Certification CE
Warranty one year

Specifications

1.type:pvc powder high speed blending machine
2.volume:200/500L
3.speed:475rpm
4.motor:30kw
5.CE certification

pvc powder high speed blending machine



Feature:

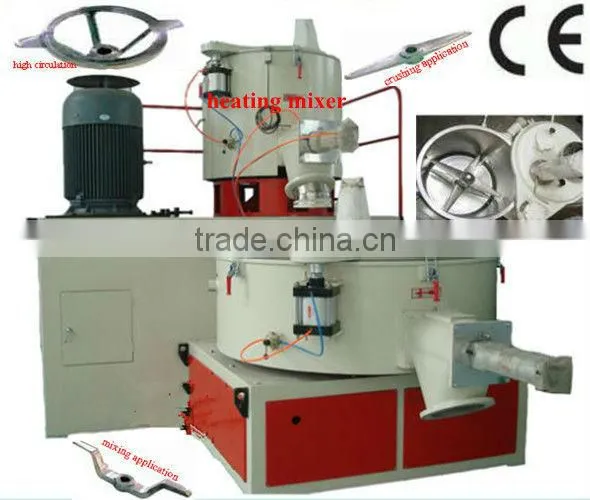

1. The upper set is for hotting, and the lower one is for cooling;



2. We also can use the variable-frequency motor as your needs;



3. Five parts included in this unit: two containers, transmission agent, pneumatic components, cooling system and base structure.



4. The container:

   A. The interior is made of stainless steel with polished finish;



   B. The cover adopts aluminium alloy castings with inlet orifice and air exit hole, we also can produce it as your requirements;



  C. The discharge hole is made of aluminium alloy; the valve is controlled in the force of pneumatic;



  D. The paddle is made of stainless steel in the structure of top, center and bottom;



  E. Temperature measuring equipment (TME) in the interior wall of the container;

pvc powder high speed blending machine

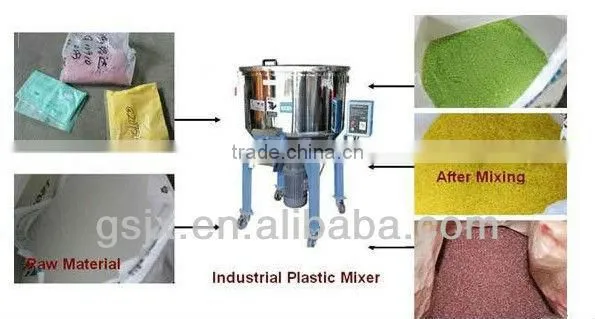

high speed powder plastic blending machine Flow:

pvc powder high speed blending machine



pvc powder high speed blending machinepvc powder high speed blending machinepvc powder high speed blending machine



:

Model

SRL-Z100/200

SRL-Z200/500

SRL-Z300/600



SRL-Z500/1250





SRL-Z800/1600



Total volume(L)



100/200

200/500

300/600

500/1250

800/1600

Effective capacity (L)



65/130

150/320

225/380

330/750

600/1050

Stirring speed(rpm)



650 /1300/200

475/950/130

475/950/100

430/860/70

370/740/50

Mixing time(min)



8-12

8-12

8-12

8-15

8-15

Motor power(KW)



14/22/7.5

30/42/11

40/55/11

55/75/15

83/110/22

Overall dimension

(mm)

1950*1600*1800

4580*2240*2470

4800*2640*2480

5600*3000*3100

5170*3200*4480

Weight(kg)



3200

3500

3800

6500

9800

 pvc powder high speed blending machine

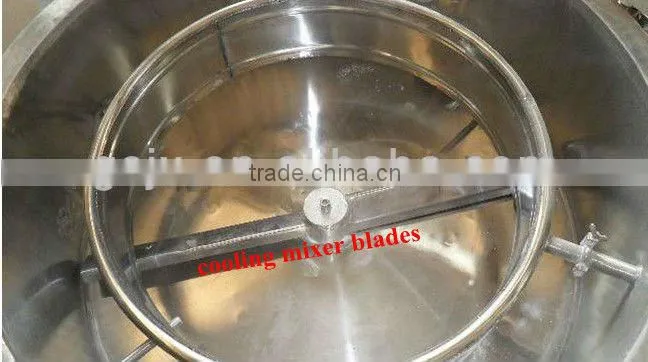

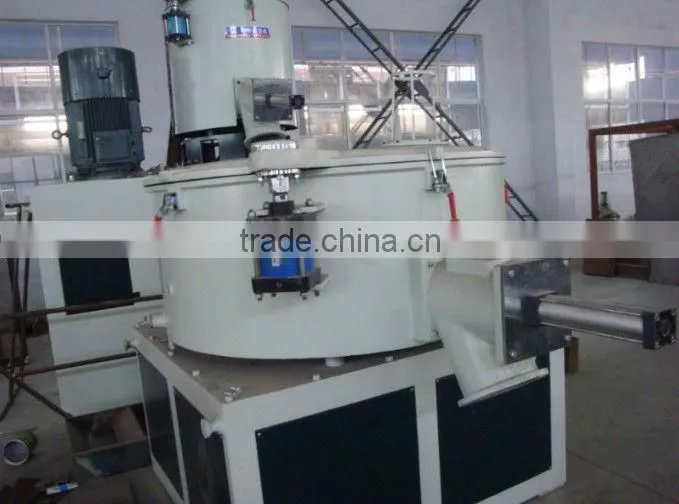

High speed mixer/mixing machine:

pvc powder high speed blending machine

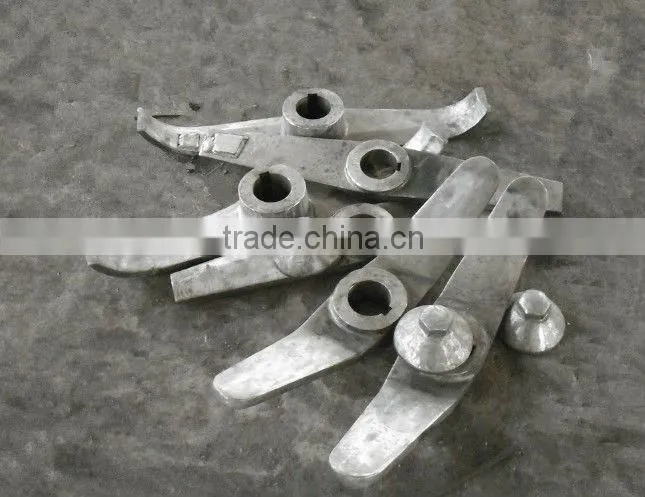

Paddles:

pvc powder high speed blending machine

   pvc powder high speed blending machinepvc powder high speed blending machine

  pvc powder high speed blending machine

Auto loader/feeder:

pvc powder high speed blending machine

Plastic color mixing machine other type:

pvc powder high speed blending machinepvc powder high speed blending machine

If you are interested in our plastic blending machine , please do not hesitate to contact us.

Hope we can succeed in cooperation and establish a long term business relationship.
