220v Mini Induction Melting Furnace for Gold/silver/copper

220v Mini Induction Melting Furnace for Gold/silver/copper photo-1
220v Mini Induction Melting Furnace for Gold/silver/copper photo-2
220v Mini Induction Melting Furnace for Gold/silver/copper photo-3
220v Mini Induction Melting Furnace for Gold/silver/copper photo-4
220v Mini Induction Melting Furnace for Gold/silver/copper photo-5
220v Mini Induction Melting Furnace for Gold/silver/copper photo-6
US$ 1,000 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Induction Furnace
Usage:
Melting Furnace
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Induction Furnace
Usage Melting Furnace
Place of Origin Zhejiang, China
Brand Name Superb
Model Number SPB-H
Voltage Three phase 380 V
Power(W) 15kw
Dimension(L*W*H) 530x530x900 mm
Weight 25-60kg
Certification ISO9001:2000
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Introduction
1.Induction Melting Furnace for 4-6 kg precious metal
2.Top quality Jewelry Machine

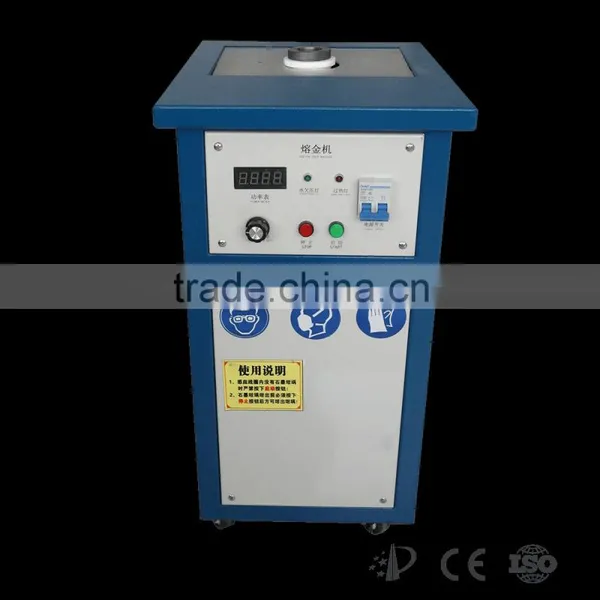

220v mini induction melting furnace for gold/silver/copper

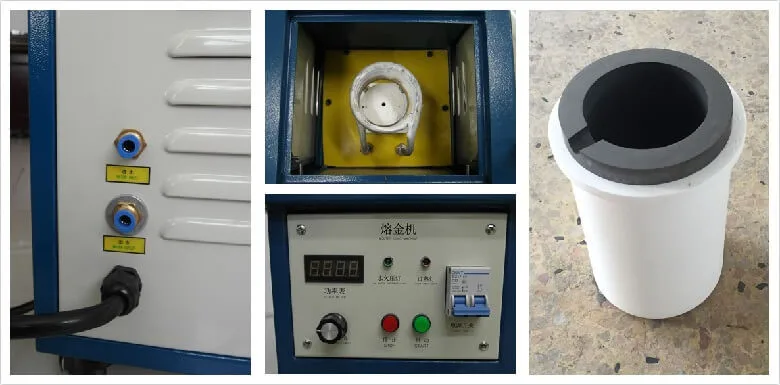

Some details

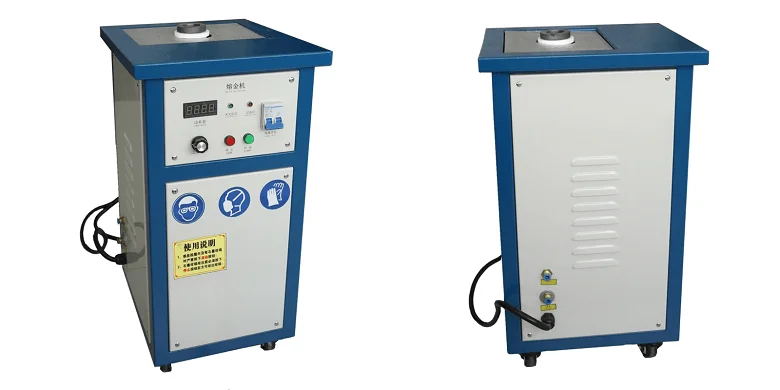

Machine internal

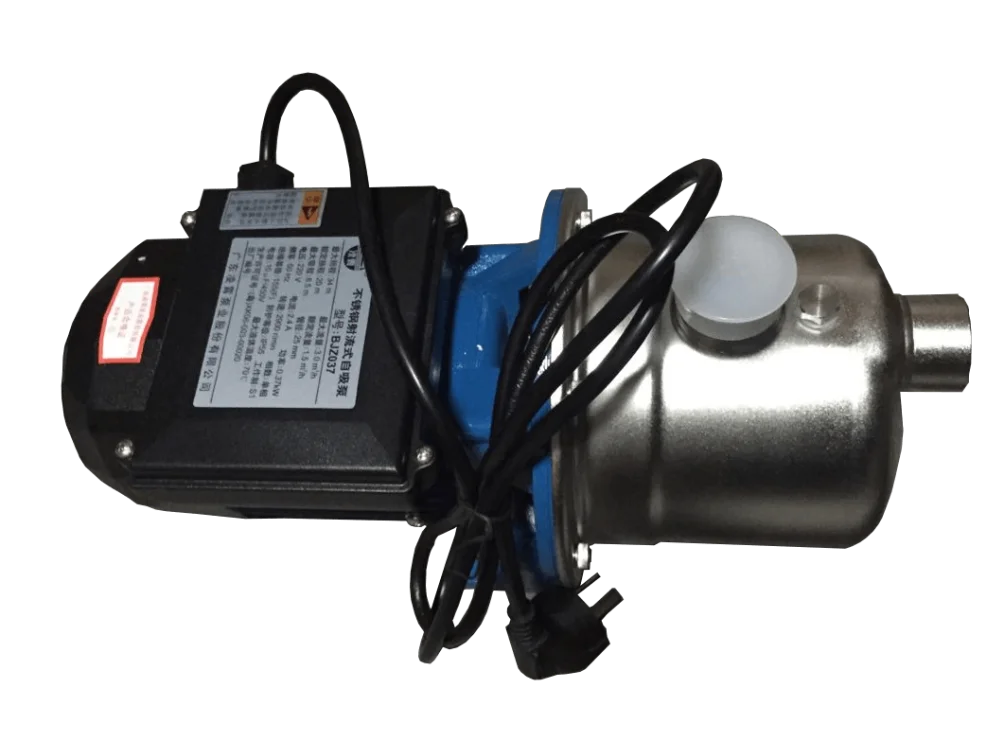

Inside the machine is equipped with water pump

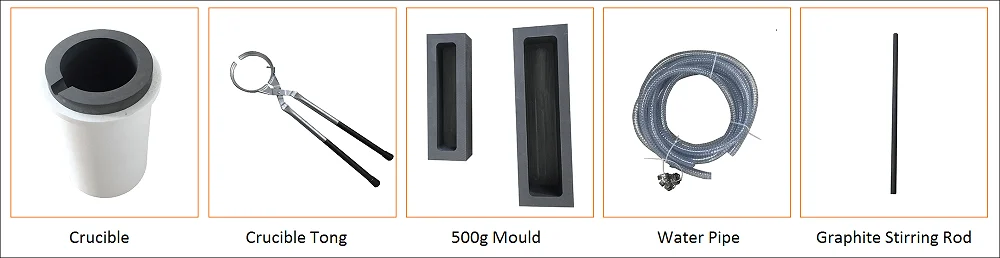

Free spare parts

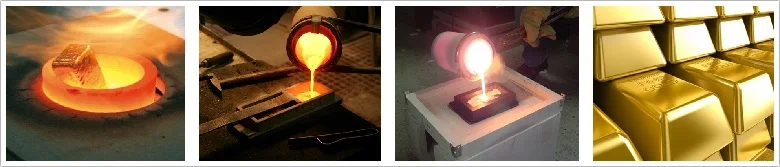

Application

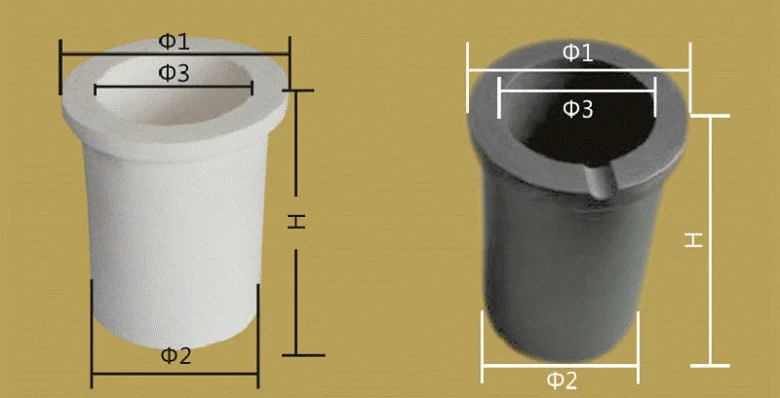

Crucible

Crucible For Gold Melting Furnace

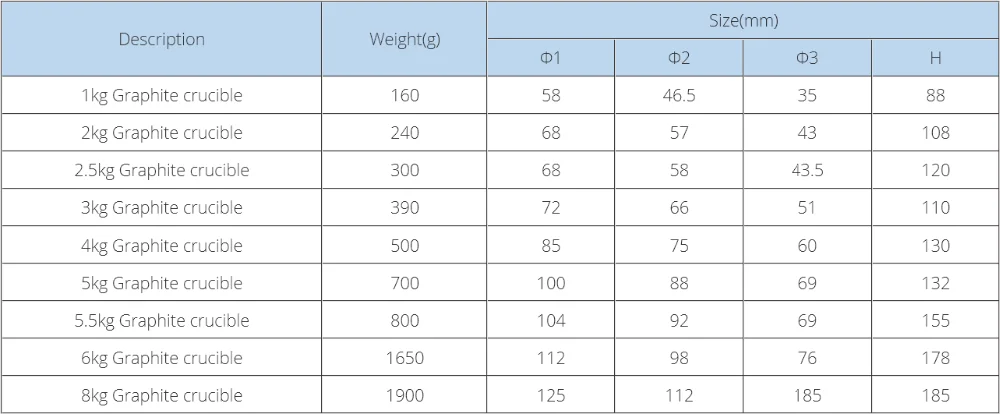

Graphite crucible

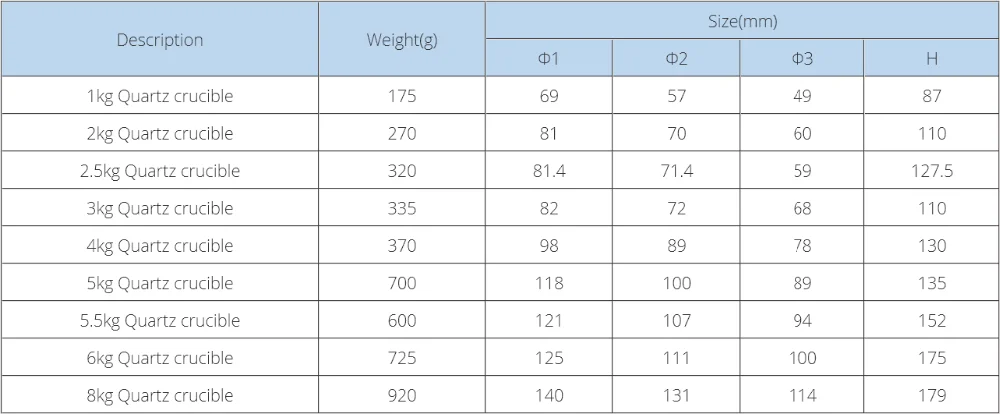

Quartz crucible
Features

• Using solid-state IGBT inverter and power regulation, soft switch three double regulation and frequency automatic tracking techno logy.

• It is a highly reliable guarantee 100% full load, 24hours of continuous work ability, with over-current, over-voltage, owe water, lack of phase, loaddiscomfort such as multiple protection

• Intermediate frequency power supply to rapid heating and electromagnetic stirring effect on metal, in order to obtain high temperature metal liquid and highly uniform.


• Machines built water pump, cooling is more convenient.

Parameters
Model number
SPB-H1
SPB-H2
SPB-H4
SPB-H5
SPB-H6
Power supply
220 V
220 V
Three phase 380 V
Three phase 380 V
Three phase 380 V
Power
3.5 kw
3.8 kw
15 kw
15 kw
15 kw
Applicable metal
Gold, karat gold,silver and copper
Gold, karat gold,silver and copper
Gold, silver and copper
Gold, silver and copper
Gold, silver and copper
Melting time
2-3 min
2-3 min
2-3 min
3-5 min
3-5 min
The Max capacity
1 kg gold
2 kg gold
4 kg gold
5 kg gold
6 kg gold
The highest temperature
1500℃
1500℃
1800℃
1800℃
1800℃
Dimension
680×340×380 mm
680×340×380 mm
530×530×900 mm
530×530×900 mm
530×530×900 mm
Weight
25 kg
25 kg
50 kg
55 kg
60 kg
Quality Assurance

How we control the quality?

Packaging & Shipping
FAQ

1. What is your advantage to choose Superb melting system?
As one of top suppliers in the induction field over 15 years,the machine’s stability and efficiency is warrantied.The confidence is from our superb technical engineers team.There are some doctors graduated from Zhejiang university which is the origin of induction technology in China.

2. If our machine meets fault, how could you help us to solve it?
The detailed fault description and photos should be informed to us.Our engineer will judge which part meets trouble,then provide advise and accessories list you need. The spare parts will be sug-gested to purchase by our sales manager for ensuring minimum downtime. If some problems can not be solved through communication, the engineer will be dispatched to debug onsite according to your requirement.

3. what is your warranty?
Our all machines’ standard warranty is 12 months from the date of signing the turning over docu-ment after commission.
