Specifications
1.Easy operate/low noise / variable speed2.High rigidity and stability casting body
3.Perfect lubricate system
4.ISO9001

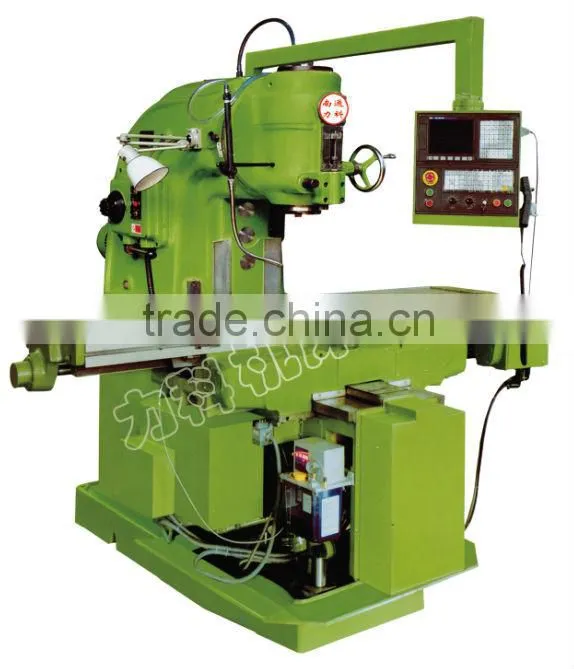

PRODUCT NAME:Metal processing cnc machine tool
SPECIFICATIONS:
| Units | XK5040 | |
| Table size | mm | 400x1700 |
| No.of T-slots | 3 | |
| Width of T-slots | mm | 18 |
| Max load | kg | 800 |
| Longitudinal travel(manual/auto) | mm | 900 |
| Cross travel(manual/auto) | mm | 315 |
| Vertical travel(manual/auto) | mm | 385 |
| Position accuracy of worktable | mm | 0.035 |
| Repeat position accuracy of worktable | mm | 0.025 |
| Spindle taper | 7:24(ISO NO.50) | |
| Spindle bore diameter | mm | 29 |
| Spindle travel | mm | 85 |
| Max. angle of vertical milling head | deg | ±45 |
| Distance between spindle nose and table surface(Min./Max.) | mm | 30/500 |
| Distance from vertical guidway to spindle centerline | mm | 450 |
| Spindle speed range | r/min | 30-1500 |
| Spindle speed step | steps | 18 |
| Feed rate of axis x | mm/min | 6-3500 |
| Feed rate of axis y | mm/min | 6-3500 |
| Feed rate of axis z | mm/min | 6-1800 |
| Power capacity | KVA | 25 |
| Power of main motor | KW | 11 |
| Main motor rotate speed | r/min | 1450 |
| Longitudinal feed motor power | KW | 1.6 |
| Transverse feed motor power | KW | 1.6 |
| Vertical feed motor power | KW | 4.5 |
| Power of coolant pump motor | KW | 0.125 |
| coolant pump output flow | L/min | 18 |
| Power source requirement | 380V+10%,50HZ+1HZ | |
| Overall dimensions(LxWxH) | mm | 2600X2600X2400 |
| Net weight | kg | 4250 |
| Dimentions of control cabinet(LxWxH) | mm | 450X420X1200 |
| Dimentions of maneuvering box(LxWxH) | mm | 450X420X280 |
| Weight of maneuvering box | kg | 30 |
STANDARD ACCESSORIES:
wrenches,sleeves,morse taper intermediate sleeve,end mill arbor,spanner for end mill arbor,drawbar, oil gun, lump,cooling device(in the machine),RS232 communication cable
OPTIONAL ACCESSORIES(charge separately):
machine vise,milling chuck,boring chuck,facing cutter,vertical mill cutter,etc .
WHY CHOOSE US?
We are the MANUFACTURER of high quality milling machine with competitive price!
Such as vertical milling machine X5040/X5032, universal horizontal milling machine
X6140/X6132,radial milling machine X6330, etc.
The sales performance, satisfied accessories,longtime work team experience,
stability & durability of the machines are our best selling points!
|
Company Brief Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool. |
|
|

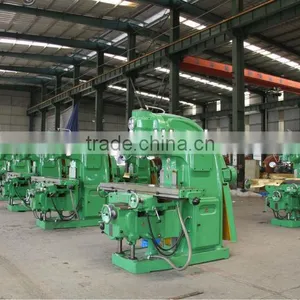

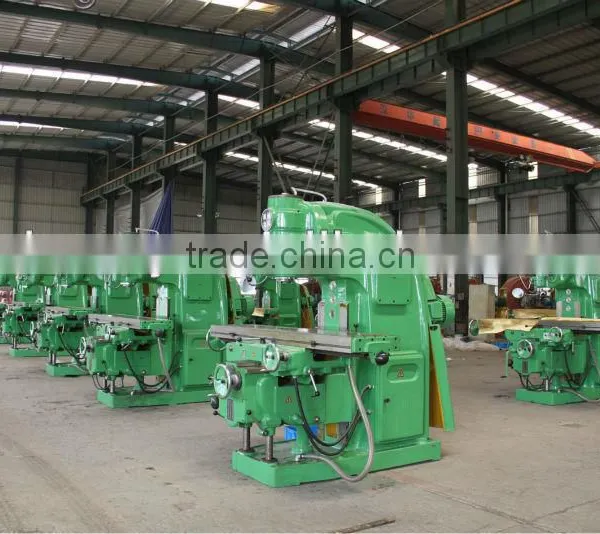

Assembly shop of vertical machining center We follow strict assembly technique after we check each parts are eligible. |
|
|
Assembly shop
|
|
|
Warehouse |
|
|
Casting
|
|
|
The main parts gear
|
|
