Universal Horizontal Ball Screw Machinery

Universal Horizontal Ball Screw Machinery photo-1

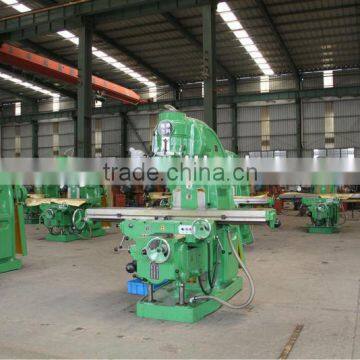

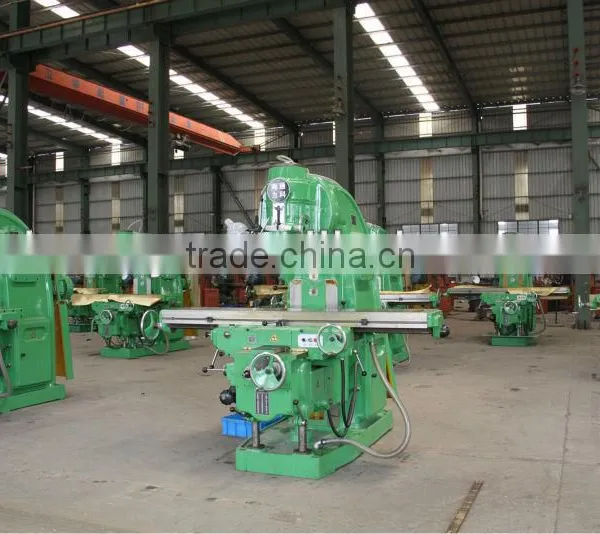

Universal Horizontal Ball Screw Machinery photo-2
US$ 10,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
lecroy
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name lecroy
Model Number X6132 universal horizontal ball screw machinery
Type Horizontal
CNC or Not Normal
Voltage customized
Power(W) 9825
Dimension(L*W*H) 2294*1770*1665
Weight 2850KG
Certification ISO9001
Warranty 1year
After-sales Service Provided Overseas third-party support available

Specifications

1.SIMENS feed motor
2.Low noise / variable speed
3.High rigidity and stability casting body
4.Perfect lubricate system

PRODUCT NAME:Universal horizontal ball screw machinery



SPECIFICATIONS:

ItemUnitsX6132
TableTable sizemm320*1325/1600
No.of T-slots 3
Width of T-slotsmm18
Max loadkg500
Distance between T-slotsmm70
TravelLongitudinal travel(manual/auto)mm700/680,980/960
Cross travel(manual/auto)mm245/230
Vertical travel(manual/auto)mm320/300
SpindleSpindle taper 7:24(ISO NO.50)
Spindle bore diametermm29
Spindle speed ranger/min30-1500
Spindle speed stepsteps18
Axial mootionmm85
Max.swivel angle of spindle ±45
Distance from spindle nose and table surface min/max.mm215/470
Distance from centre line of spindle to vertical guideway surface of columnmm30/350
FeedrateCutting feed ratemm/minX:23.5-1180,Y:15-786,Z:8-394
Rapid feed ratemm/minX:2300,Y:2300,Z:770
NO. of feedmm18
MotorPower of spindle motorkw7.5
Power of feed motorkw2.2
OthersOverall dimensions(LxWxH)mm2294X1170X1665
Net weightkg2850

 Universal horizontal ball screw machinery

STANDARD ACCESSORIES:

Wrenches/spanners,drawbar,foundation bolts ,nuts,washers,oil gun, lump ,mill cutter arbor



OPTIONAL ACCESSORIES(charge separately):

deviding head, DRO(for two axis or three axis), machine vise,rotary table(TS400),mill chuck,boring cutter holder,facing cutter,vertical mill cutter,vertical milling head,etc.



WHY CHOOSE US?



We are the MANUFACTURER of high quality milling machine with competitive price!



Such as vertical milling machine X5040/X5032, universal horizontal milling machine

X6140/X6132,radial milling machine X6330, etc.



The  sales performancesatisfied accessories,longtime work team experience,

stability & durability of the machines are our best selling points!





Company Brief

Nantong Lecroy Machine Tool Manufacturing Co,.Ltd specializes in machine tool research and development, design, manufacturer and sales. We have a long history to produce precision machine tool.



   Universal horizontal ball screw machinery

Assembly shop of vertical machining center

  We follow strict assembly technique after we check each parts are eligible.

   Universal horizontal ball screw machinery

Assembly shop



   Universal horizontal ball screw machinery



 Warehouse

   Universal horizontal ball screw machinery

Casting





   Universal horizontal ball screw machinery

 The main parts

  gear





   Universal horizontal ball screw machinery
