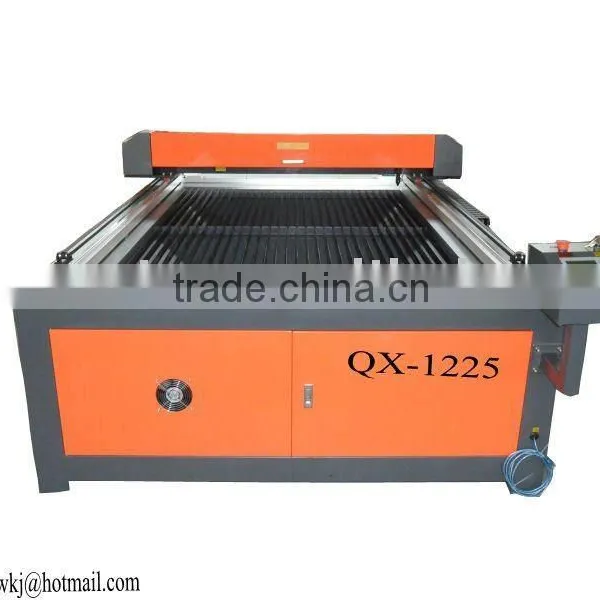

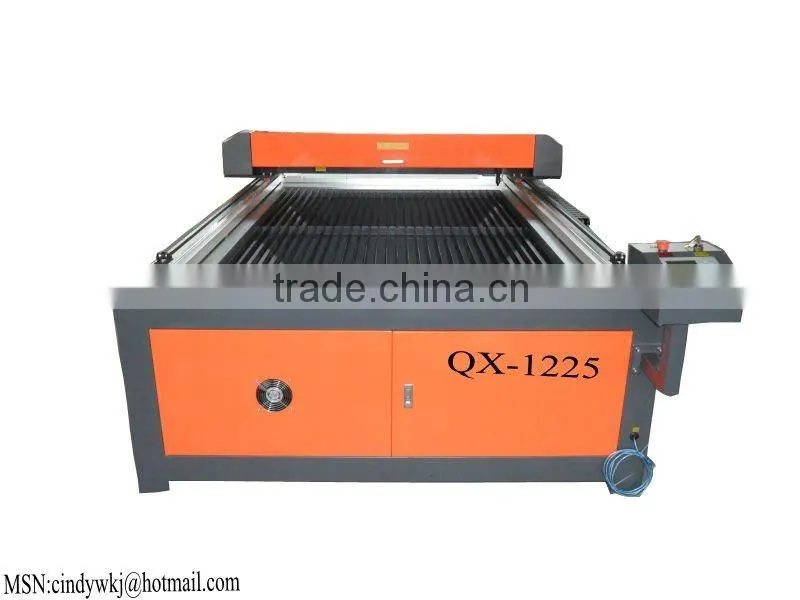

QX-1225 laser cutting mahcine

Specifications

QX-1225  laser cutting machine

The working area of 1200*2500mm can meet the demands of engraving and cutting on big width garments and cloth, leather, wood, arylic and paper industry.

Supply with CE certificate, FDA

Specification

1) Engraving area: 1200 x2500mm

2) Whole machine size: 3,000 x 1600x 990mm

3) Laser power: 60w(optional 80W)

4)Cutting speed: 0 - 24,000mm/min

5) Resetting positioning accuracy: ±0.1mm

6) Power supply: AC 110 - 220V ±10%, 50 - 60Hz

7) Gross power: <1,000W

8) Operating temperature: 0 - 45°C

9) Operating humidity: 8 - 95%

10) Minimum shaping character: English 1 x 1mm

11) Graphic format supported: BMP, HPGL, PLT, DST, DXP, and AI

12) Driving system: stepper

13) Cooling mode: water-cooling and protection system

14)Auxiliary equipments: exhaust-fans air exhuast pipe

15) Controlling  software: DSP control system

16) Compatibel software: Coredraw AutoCAD Photoshop

17) Lser type: sealed CO2 laser tube

18) Net Weight: 400kg
