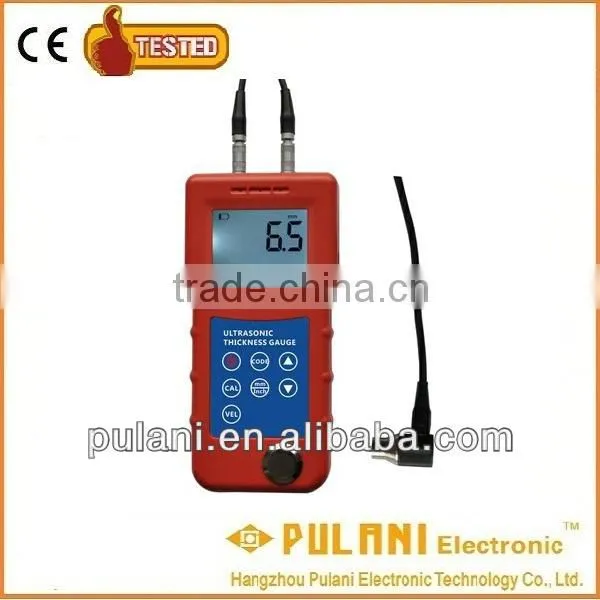

High resolution portable ultrasonic thickness gauge tester meter

Specifications

1.Portable ultrasonic thickness gauge
2.Resolution: 0.1mm
3.Range: 1.0-280mm
4.Auto power off
5.Unit: Metric / Imperial

High resolution portable ultrasonic thickness gauge tester meter



Introducton & Application:

Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Materials measured: any hard materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron and other ultrasonic wave well-conductive materials.



Specifications:

Display:	4.5 digits LCD with EL backlight
Operating principle:	ULTROSONIC
Measuring range (metric/imperial):	1.0-280mm,0.05-11.0inch (in Steel)
Resolution:	0.1mm
Accuracy:	±(0.5%H+0.1)mm, depends on materials and conditions
Units:	Metric/Imperial unit selectable
Power supply:	4x1.5 AAA size (UM-4) battery 1
Battery indicator:	low battery indicator
Operating conditions:	0-+45°C(32°F-104°F),≤90%RH
Standard Delivery:	Main Unit, 8mm Probe, Coupling Oil, User Manual, Carrying Case





Functions:

1. High resolution measurement

2. Probe automatic zero calibration for system error correction

3. Two-Point calibration function. Sound-Velocity-Calibration function

4. According to the known thickness measurement Sound-Velocity.

5. Capture the value of the minimum thickness.

6. Status indicator of the coupling and low battery.

7. Auto sleep and auto power off function to conserve battery life.

8. Humanized shape design, compact and portable, Can be used in harsh environment.
