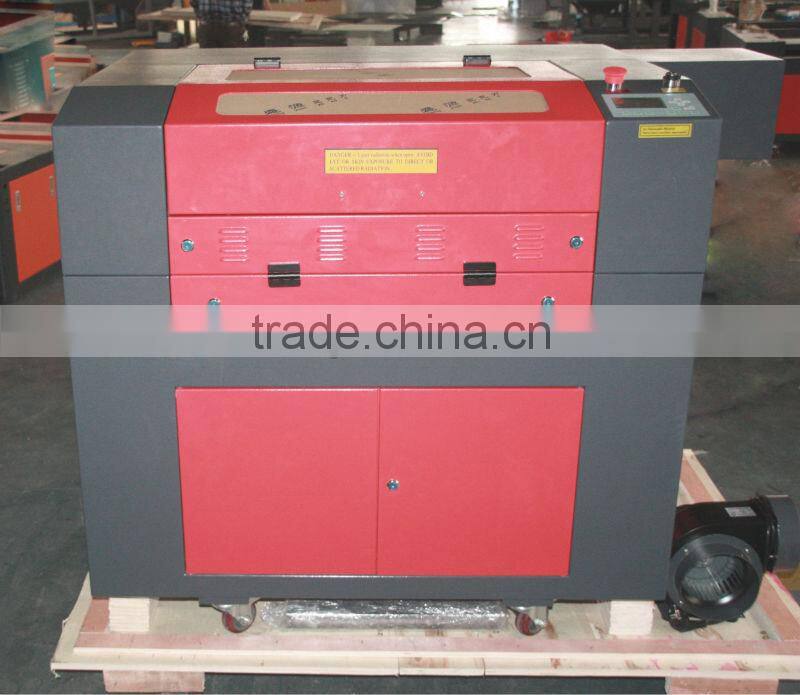

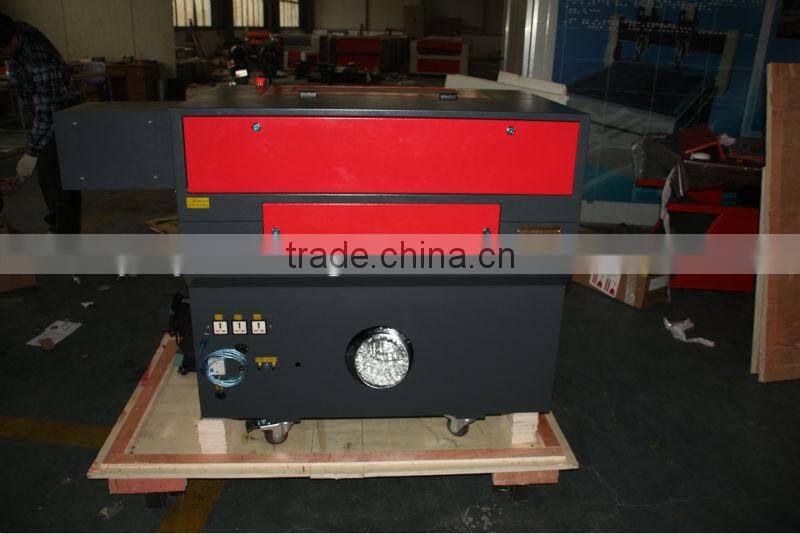

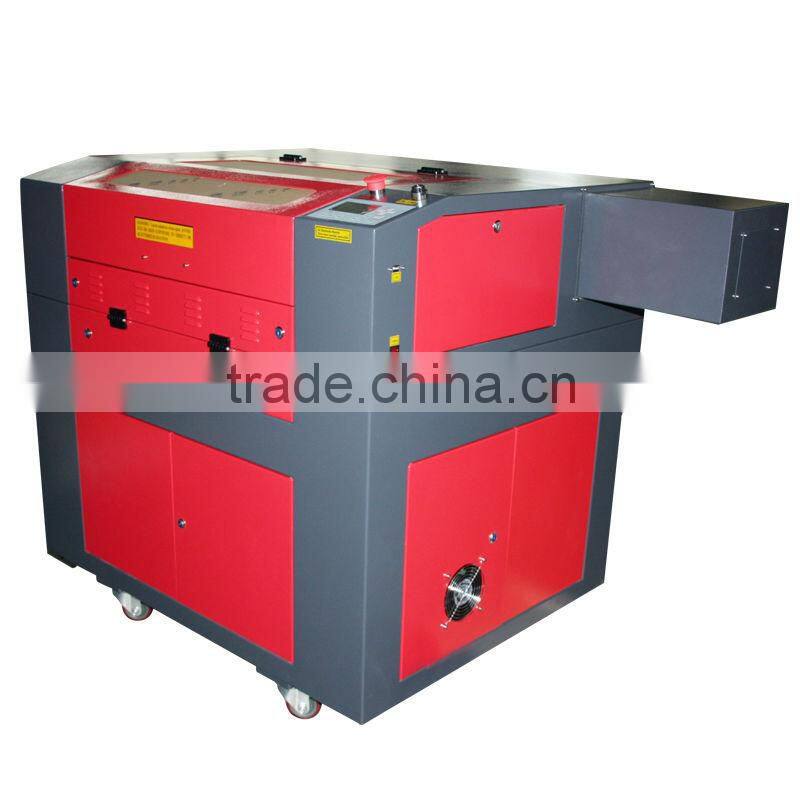

Laser Engraving Machine With All Kinds of Power of Laser Tube

Name: Laser Engraving Machine With All Kinds of Power of Laser Tube
Brand: Quanxing
SKU: 118933035
Availability: InStock

US$ 2,600 - 3,000 MOQ: 1 Set

Key Specifications

Condition:

New

Laser Type:

CO2

Applicable Material:

Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Jinan Quanxing Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Laser Type CO2

Applicable Material Acrylic, Crytal, Glass, Leather, MDF, Paper, plastic, Plexiglax, Plywood, Rubber, Stone, Wood

Cutting Thickness 1-25mm acrylic

Cutting Area 400*600mm

Cutting Speed 0-400mm/s

CNC or Not Yes

Cooling Mode Water Cooling

Control Software DSP

Graphic Format Supported AI, PLT, DXF, BMP, DST, DWG, AI, PLT, DXF, BMP, DST, DWG

Place of Origin Shandong, China

Brand Name Quanxing

Model Number QX-4060

Certification CE, ISO, SGS, Other, CE, ISO, SGS, FDA

After-sales Service Provided Overseas third-party support available

Specifications

laser engraving machine with all kinds of power of laser tube
1.various workingtable
2.USB interface
3.up &down worktable

laser engraving machine with all kinds of power of laser tube

QX4060/6090/1290/1490/1690 Laser engraving cutting machine
Model	QX-4060		QX-6090		QX-1290	QX-1490	QX-1690
Standard Laser power:	40w		60w		80w	80w	80w
Optional Laser power:	60w		40w, 80w,100w		60w, 100w, 120w, 130w
Engraving Area(mm)	400 x 600		600 x 900		1200x900	1400x900	1600x900
Gross power	1200w		1200w		1600w	1600w	1600w
Laser type:	CO2 Laser tube
Cutting depth:	Acryl 0-40mm, others material(varied according to the nature)
Engraving speed :	0-1000mm/s
Cutting speed:	0-600mm/s
Resetting positioning accuracy:	<0.01mm
Maximum forming character:	Figure/English: 1x 1mm
Power supply:	220V±10% 50HZ or 110V±10% 60HZ
Software supported:	ArtCut, PhotoShop (Conversion output) CorelDraw, AutoCAD, Lasercut (Direct output)
Main Graphic format supported:	PLT/DXF/BMP/AI (Direct output)
Engraver for Curve surfaces:	Rotary clamp is optional and used to engrave on curse surfaces
Water Cooling:	Yes
Maximum Height of Materials to Engrave:	270mm/10.63in.(Up and down adjustable by motor)
Laser tube(life hours):	3000-4000 hours
Certificate	CE

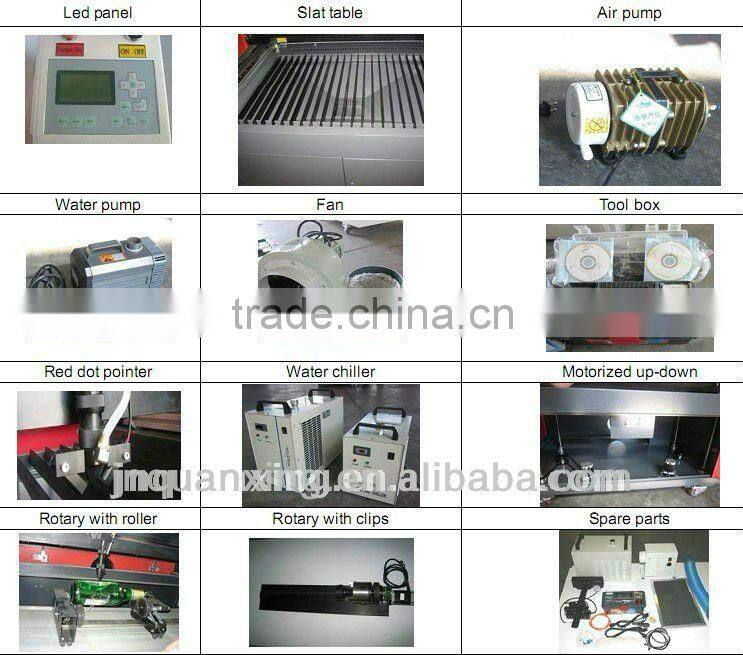

Assistant Equipment:	Dual red dot pointer	Water pump		Air pump	Exhaust Fan	Flat aluminum-alloy table slat worktable
Spare Parts Recommend (R): Laser Tube, Lens, Mirror
Options: Motorized up-down table, Rotary clamp, Water chiller, Auto focus, Honeycomb worktable
