Specifications
Zin coating thickness gauge meter tester1.Large screen
2.Easy to operate
3.Timely to display the statistics data
Duel function portable car coating thickness meter tester gauge which could timely to display the statistics data !
DESCRIPTION
This compact gauge can be used for non-destructive coating thickness measurement of non-magnetic coatings, e.g. paint, enamel, chrome on steel, and insulating coatings, e.g. paint and anodizing coatings on non-ferrous metals.
specifications
1.Automatic switch thickness gauge
2.Hight accuracy
3.CE support
4.Filp screen
5.Built-in N probe & NF probe

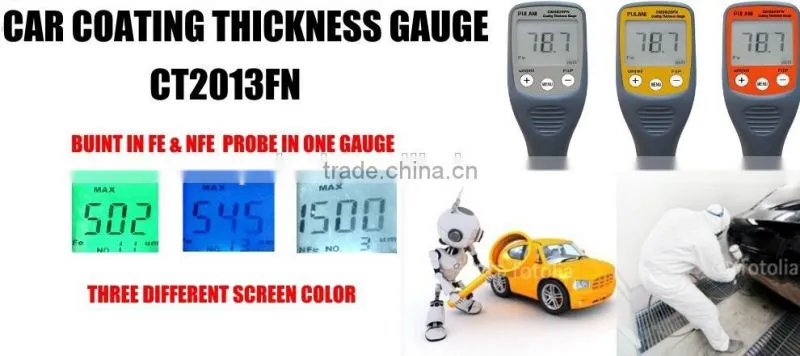

Factory price integrated coating thickness gauge CT2013FN

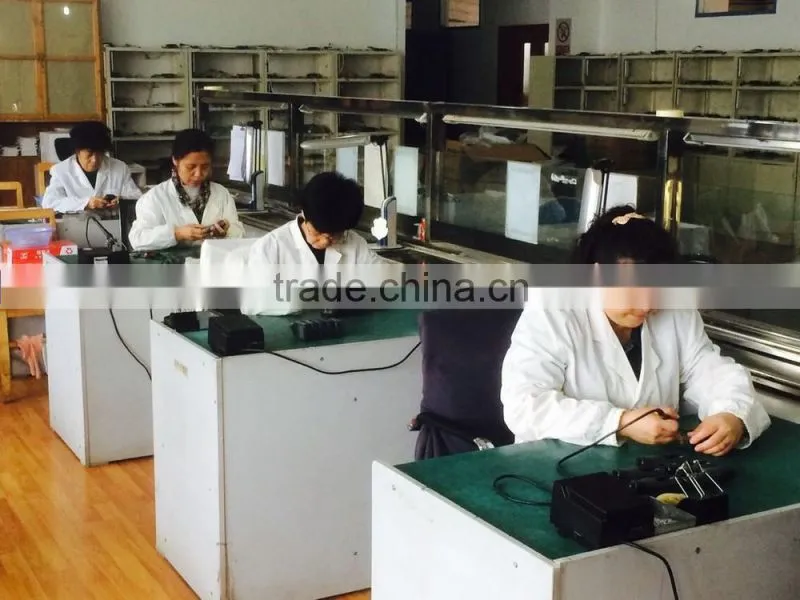

1. Produce line :

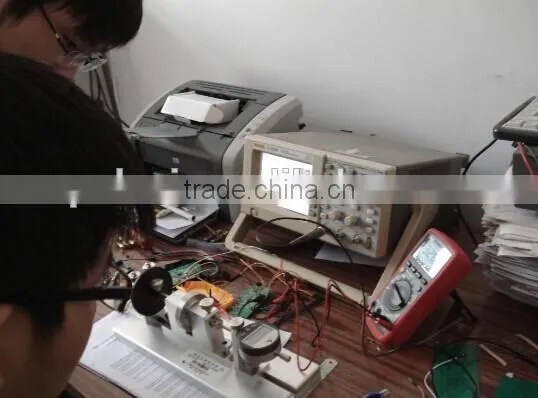

2. R&D
1. Introduction:
The instruments is superminiature tester, which can be quick and accurate to measure coating thickness(such as: paint, powder coating, plastic, porcelain) on ferrous metal substrate(such as: Iron, steel, etc.) or non-ferrous metal substrate (such as: aluminum, copper, Zinc, etc.)without causing any damage. It is widely used in manufacturing, metal processing, chemical industry, commercial inspection, etc.
2. Basic Specification:
Brand: |
PULANI |
Model NO.: |
CT2013FN |
Thickness gauge meter Color: |
Gray, Orange |
Thickness gauge meter Probes: |
Built-in N probe & NF probe |
Thickness gauge meter Metric/ Imperial: |
Convertible |
Thickness gauge meter Operating Principle: |
Magnetic induction and eddy current (F & NF) |
Thickness gauge meter Resolution: |
0.1µm (<100µm) or 1µm(>100µm), 0.1um (0~99.9um), 1um (over 100um) |
Thickness gauge meter Measuring Range: |
0-1500um/0-60mil |
Thickness gauge meter Display: |
Digits, LCD |
Thickness gauge meter Accuracy: |
± (1-3%H± 3µm) |
Thickness gauge meter Operating conditions: |
Temperature : 0~40°C, Humidity: <80% |
Thickness gauge meter Battery: |
2 x AAA batteries, rechargeable batteries can also be used |
Thickness gauge meter Size: |
120*55*40mm |
3.Basic Functions:
1. Auto recognize the substrate of Ferrous or Non-Ferrous
2. Auto switch on by place the the probe on a surface
3. With automatic shutdown function
4. Flip display
5. Metric/imperial system selectable
6. Store up to 20 of the latest data, analyzed the MAX. MIN. AVG.
7. Historical data are clearable, restore factory settings
8. Three different calibration, Zero Calibration,Two Point Calibration and Multi-point calibration
9. LCD Backlight
10. Low voltage indicator
Package: Now there are 2 types of regular package:
(1) 1 complete set of gauge package: 1 pcs gauge, 1 set calibration, 1 instruction, 1 black glasses box.
(2) 5 complete sets of gauge package: 5 pcs gauge, 5 sets calibration, 5 instructions, 5 black glasses boxes, 1 white carton box whose outside is with the color cover.
Application:
| 1. Construction: |
a. Aluminum b. aluminum veneer c. metal ceiling d. metal curtain e. metal doors and windows f. Steel |
| 2. Vehicle Equipment: |
a. motor vehicles and parts b. rail locomotives and spare parts c. bike (electric vehicles) and parts d. stroller and parts e. recreational sports vehicles and parts and f. agricultural machinery and spare parts g. engineering machinery and spare parts |
| 3. Home: |
a. solar water heater b. Bathroom Hardware c. Kitchen Hardware d. indoor metal furniture e. outdoor leisure furniture |
