Conventional Square-shaped Aluminum Veneer, aluminum curtain wall panel
Product Description
The aluminum curtain wall adopt superior high strength aluminum sheets raw material, model 3003 with Temper H24. Common thickness are 2.0,2.5,3.0mm. Pate curtain walls adopt high-quality and high strength aluminum plate. Its common height is 2.0mm, 2.5mm, 3.0mm, and its model is 3003. And its state is H 24. Besides its general material’s maximum dimension is 1220*2400mm. Its structure is composed of front-panel, reinforced rib, and angle. Front-panel is directly flexed. Also can be stamped to form an angle bracket. It also can be formed by riveting angle bracket onth e panel’s flanging. Reinfored rib is jointed with electric welding bolt behind plate in order to from a firm structure. So, it strenthens aluminum curtain wall’s strength and rigidity, and ensures its flatness and ability to resist wind and shock during its long-term use. If need additional sound insulation and heat preservation effects, the special materials can be fixed inside the aluminum sheet.

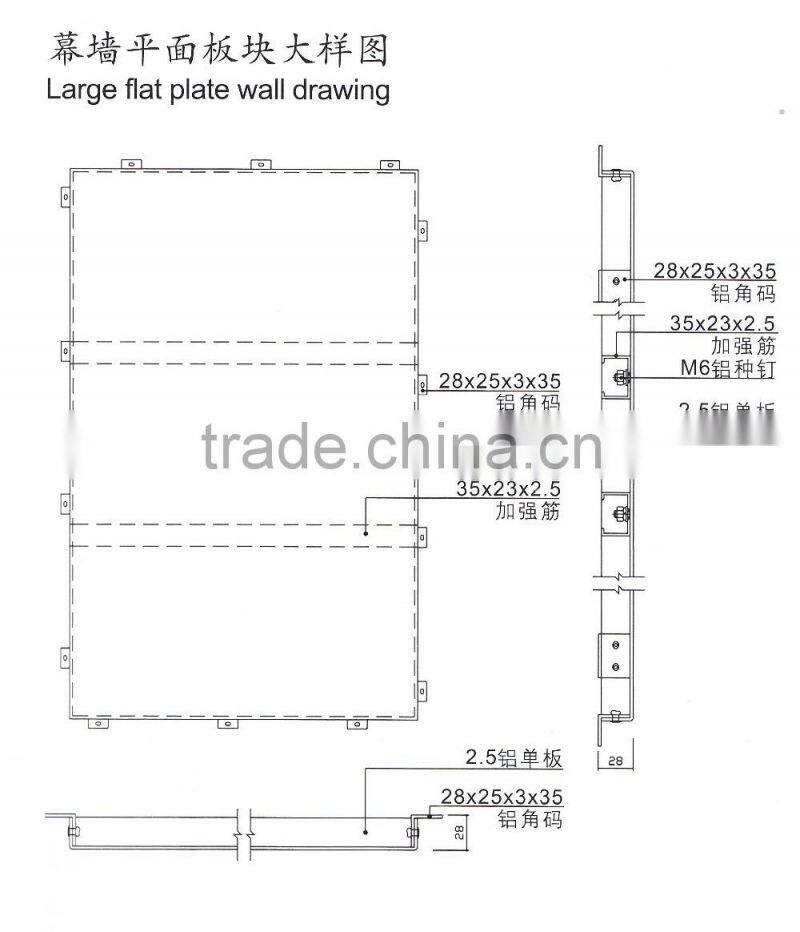

Installation Drawing

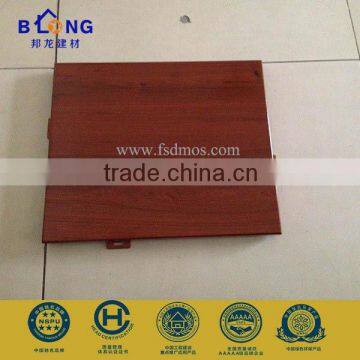

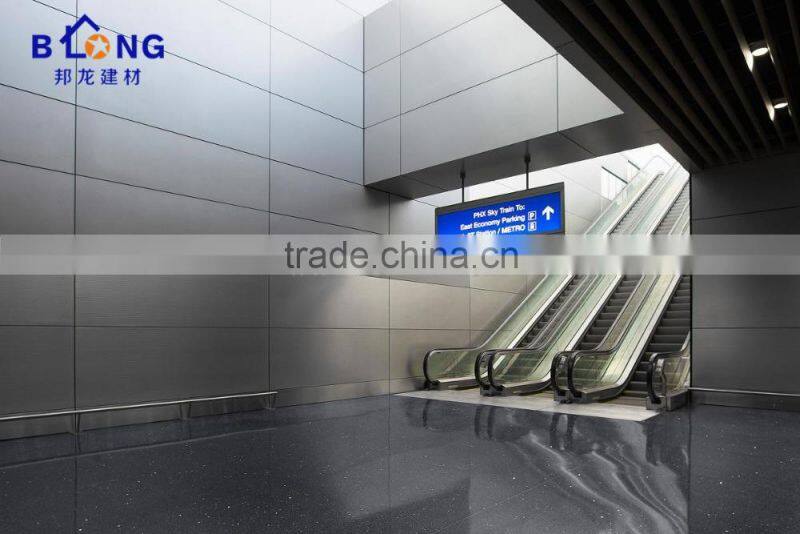

Product Show
Our Certificates
Company Introduction
1. JIANA Decorative Materials Co., Ltd is a Chinese leading aluminum ceiling and coated aluminum coil manufacturer in South China, located in Shishan Town, Nanhai District, Foshan City, Guangdong Province of P.R. China. It takes only 40 minutes to Guangzhou Baiyun International Airport from our company.
The products we're manufacturing include Aluminum Wall Cladding, Square Clip in Aluminum Ceiling, Hook-on Aluminum Ceiling, U Baffle Aluminum Ceiling, Open Cell Aluminum Ceiling, Blade Aluminum Ceiling, C-shaped Strip Ceiling, S-shaped Strip Ceiling, H-shaped Strip Ceiling, G-shaped Strip Ceiling, last but not least, Roll Coated Aluminum Coil.
2. Personnel and Concept:
We have total 200 employees, including 50 senior technicians and 100 professionally skilled workers. Our company is persisting in the enterprise concept of "Customers are the foundation of us, Technique the life of us". We insist on serving our customers with the best service
and the most competitive quality. We pay much attention to the interest of our distributors. Our mission is to buid up a professional team continuously offering excellent service and good products to our distributors and custormers from all over the world.
3. Experience and Plant:
At present, we have the following advanced plants:
Color Aluminum Roll Coating Production Line
Electrostatic Powder Coating Line
Color Thermal Transfer Printer Line
Ceiling Molding Machine Production Line
Factory Equipment
Color Aluminum Roll Coating Production Equipment
JIANA Company utilize high precision rolling coater with excellent quality of coating layer, controlled by Programmable Logic Controller. Six coat, seven bake are finished by one time. To Strenthen the bonding between the aluminum alloy and coating layer, conversion treatment is used by German chemicals.
We own professional coating team, delicate production line, with the ability to produce coated aluminum coil of thickness 0.28-1.2mm, width maximum length 1480mm.
Electrostatic Powder Coating Line
Skim→ Alkali→ Corrosion Blare→ Elimination(by acid) → Chromium zing→ Drying→
Parts→ Installation→Spraying→ Solidifying→ Parte-removing→ Check(packing)
Bending and Cutting Euipments
Professional Packing Team
Our Service
1. We offer FREE sample of coated aluminum coil and aluminum ceiling for our customer to examin our quality within 48 hours.
2. RAL Color, KFCC Color, Wooden Color Series, Stone Color Series, or cutomized color are available.
3. OEM service, customized non-standard ceiling or curtain wall(in this case, customer needs to offer blueprints or CAD drawing)
4. We offer pick-up and drop-off service in the Guangzhou Baiyun International Airport. Please tell us your landing time before you take the flight.
Frequently Asked Questions
1. Where is your factory located? How to contact you?
Our address is No.1 workshop, Dayuan Country, Qungang, Shishan Town, Nanhai District, Foshan City, Guangdong Province, P.R. China.
2. How much can you produce per month?
Our factory's ceiling productivity is 100,000 square meter per month. Coated aluminum coil's productivity is 200 tons per month.
3. What is your advantage?
Cheap price with competitive quality, professional team with years of experience.
Contact Us
Company: Foshan City JiaNa Decorative Materials CO,. LTD
Department: Internet&Engineering Department
Name: Jake Wong
Mobile phone: +86-15019670047 Telephone: +86-757-85774821
Trademanager: jianazhuangshi QQ: 2739793541 Whatsapp: 008615019670047
Wechat: jake_2015
