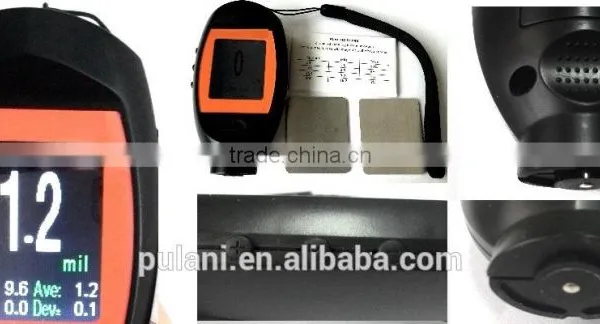

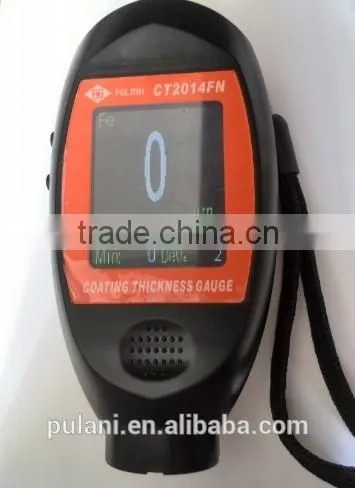

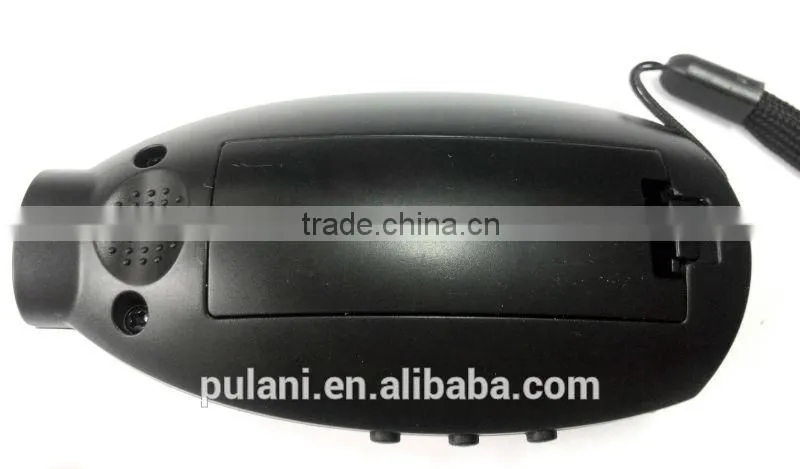

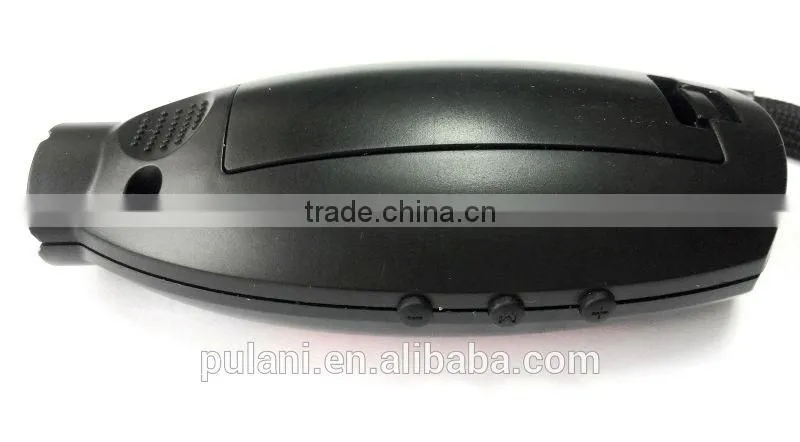

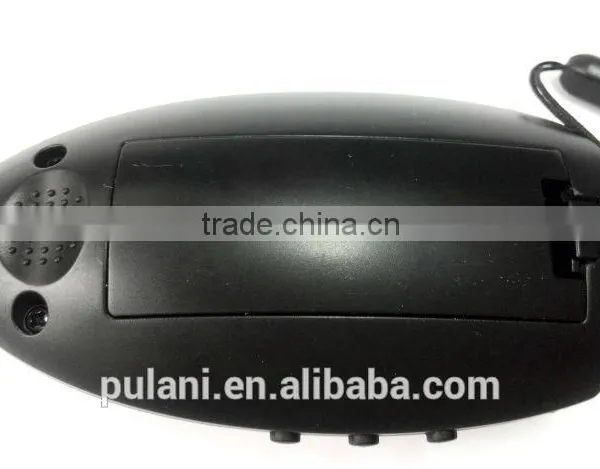

2014 new coating thickness measuring gauge with 1.8" large screen
1. Introduction:
The instruments is superminiature tester, which can be quick and accurate to measure coating thickness(such as: paint, powder coating, plastic, porcelain) on ferrous metal substrate(such as: Iron, steel, etc.) or non-ferrous metal substrate (such as: aluminum, copper, Zinc, etc.)without causing any damage. It is widely used in manufacturing, metal processing, chemical industry, commercial inspection, etc.
2. Basic Specification:
Trademark: |
PULANI |
Model NO.: |
CT2014FN-UVLED |
Thickness gauge meter Color: |
BLACK BODY |

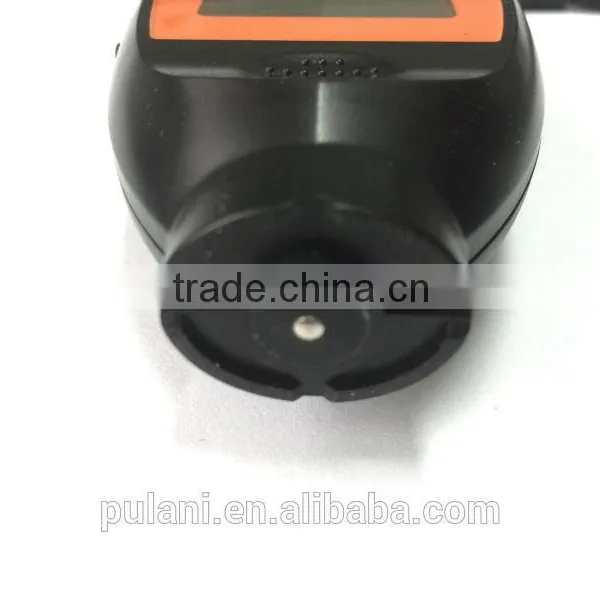

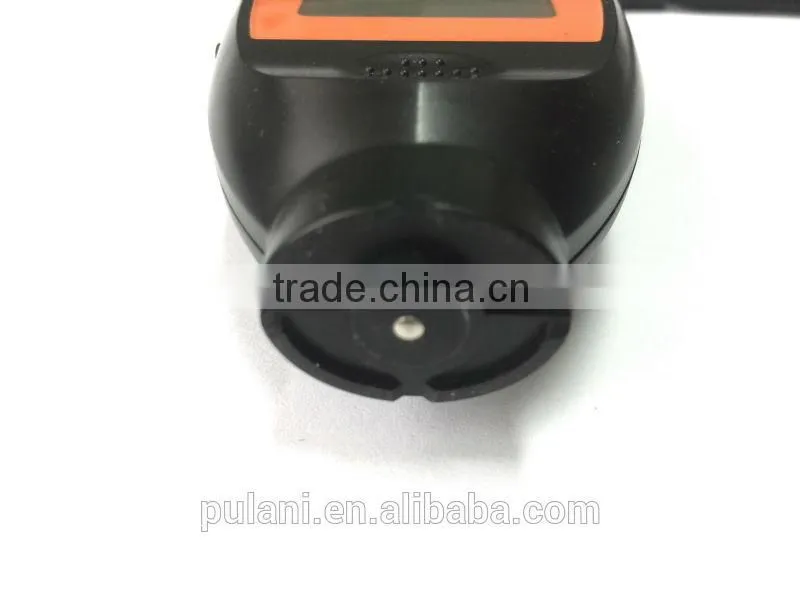

Thickness gauge meter Probes: |
Built-in N probe & NF probe |
Thickness gauge meter Metric/ Imperial: |
Convertible |
Thickness gauge meter Operating Principle: |
Magnetic induction and eddy current (F & NF) |
Thickness gauge meter Resolution: |
0.1µm (<100µm) or 1µm(>100µm), 0.1um (0~99.9um), 1um (over 100um) |
Thickness gauge meter Measuring Range: |
0-1250um/0-49mil |
Thickness gauge meter Display: |
Digits, TFT 1.8" |
Thickness gauge meter Accuracy: |
± (1-3%H± 3µm) |
Thickness gauge meter Operating conditions: |
Temperature : 0~40°C, Humidity: <80% |
Thickness gauge meter Battery: |
2 x AAA batteries, rechargeable batteries can also be used |

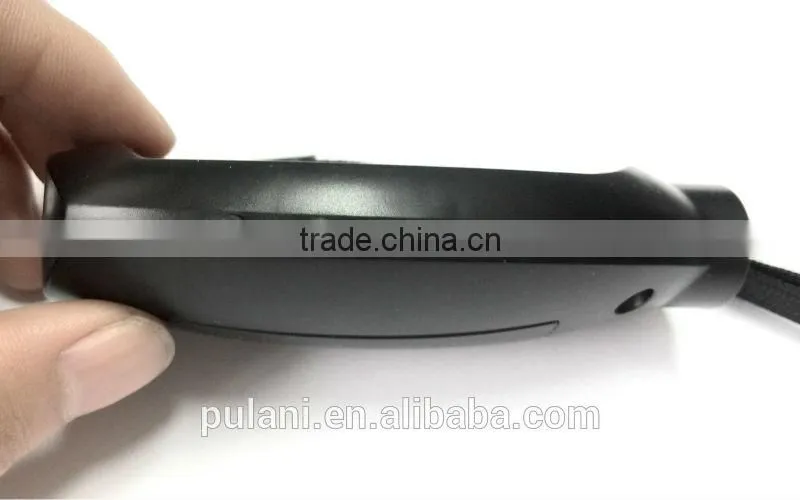

Thickness gauge meter Size: |
120*55*40mm |
3 Application:
| 1. Construction: |
a. Aluminum b. aluminum veneer c. metal ceiling d. metal curtain e. metal doors and windows f. Steel |
| 2. Vehicle Equipment: |
a. motor vehicles and parts b. rail locomotives and spare parts c. bike (electric vehicles) and parts d. stroller and parts e. recreational sports vehicles and parts and f. agricultural machinery and spare parts g. engineering machinery and spare parts |
| 3. Home: |
a. solar water heater b. Bathroom Hardware c. Kitchen Hardware d. indoor metal furniture e. outdoor leisure furniture |

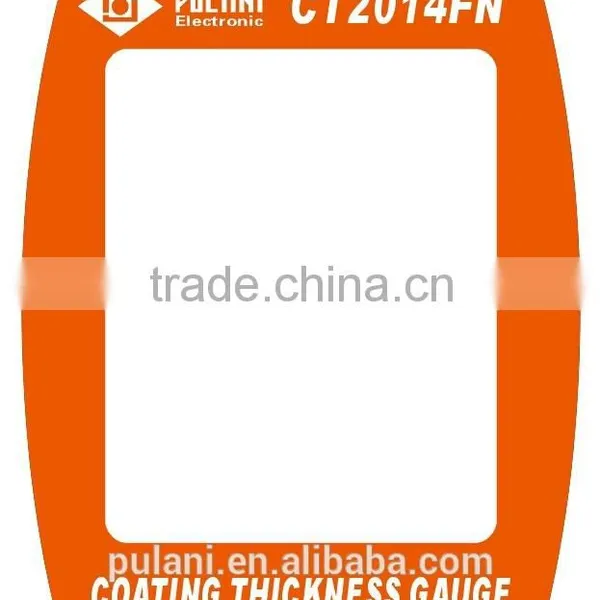

Package & surface stickers: 5 pcs gauges you received are with sample package. Now there are 2 types of regular package:

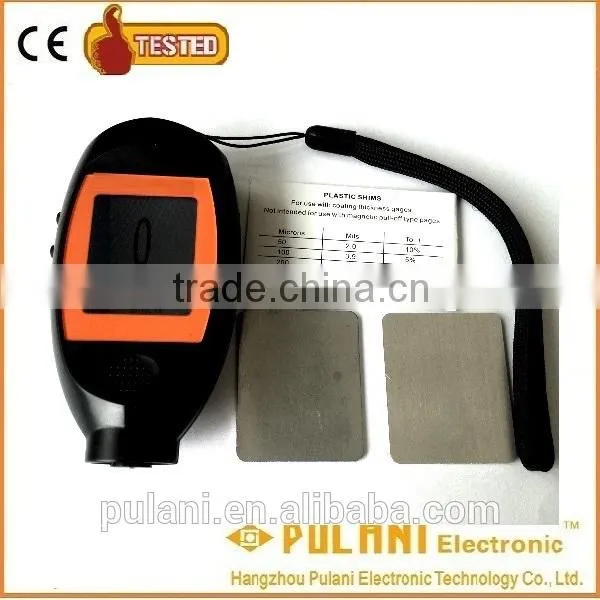

(1) 1 complete set of gauge package: 1 pcs gauge, 1 set calibration, 1 instruction, 1 black glasses box.
(2) 5 complete sets of gauge package: 5 pcs gauge, 5 sets calibration, 5 instructions, 5 black glasses boxes, 1 white carton box whose outside is with the color cover.
Note: We have own post-doctoral R&D center, we can develop electronic products according to customers' request!
Our main products: Coating thickness gauge, TPMS, GSM home alarm, any interest, welcome to feel free to contact us.
Our coating thickness gauge CT2013FN can be customized depending on order quantity.
