1 Product Introduction

The coating thickness measuring instrument uses a dual function measurement method, it can automatically identify magnetic and non-magnetic substrate, and then use the appropriate test method, it can measure the  thickness of the non-magnetic coating  (such as aluminum, copper, enamel, rubber, paint, etc) on magnetic metal substrates (such as steel, iron , alloy and Hard magnetic steel).And the non-conductive coating thickness on a non-magnetic metal substrate.

The instrument has advantages of high detection accuracy, reliable and easy to maintain, good stability, simple operation, etc. It can be widely used in manufacturing, metal processing industry, chemical industry, commodity inspection and testing fields.

Features Introduction:

l  More widely measuring range : 0-1700um

l  Automatic identification substrate material and display it on the LCD

l  Big screen, and a variety of colors back-light optional

l  Button is simple, easy to operate ,one-hand operation

l  Convenient automatic calibration function

l  Automatic correction function to prevent misuse calibration

l  Dynamically adapt to environmental features

l  V shaped groove suitable for measurements on cylindrical parts

l  Special probe structure has better stability

l  Beep when measurement or calibration is completed

l  180 degree flip for easy read data with top surface

According to the function it can be divided into the following version:

2 Product Appearance

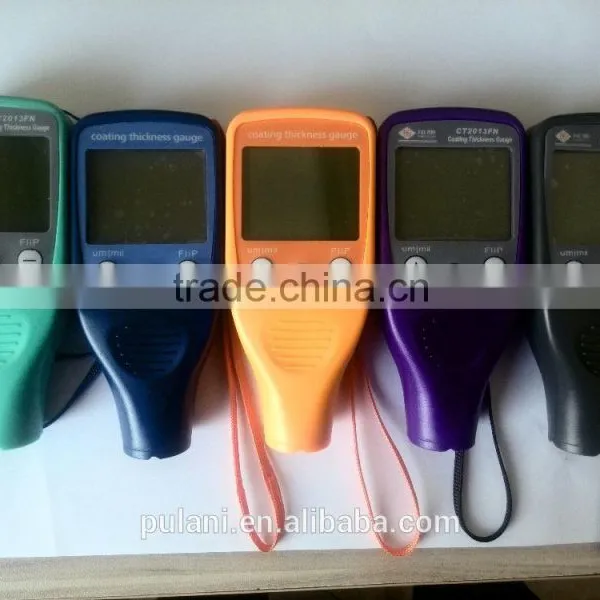

The top is the LCD, the middle are three buttons, "+" "Menu" "-" ,on the bottom is the sensor.

3 Technical Parameters

Measurement range: 0~1700μm, 0~67.8 mils

Accuracy: ± (2μm +3%H), H-standard coating thickness

Storage temperature: 10℃~60℃

Temperature: 0℃~40℃

Probe: built-in probe

Power supply: 2 x 1.5V(AAA  alkaline)

Body size: 96*50*25mm

Weight: 41g

4 Switching The Instrument ON/OFF

When the device is powered up, it needs to be detected itself automatically, so the open method is: using hand to press down the test probe and quickly leave,then the device shows “222” and a buzzer sound,when the device shows “---” complete automatic detection.

Note:

The probe do not close to the metal object when starting.

The buzzer will continue to alarm if the probe keep down after the device start.

The device will be shut down if does not operate within 30s.

5 Handling Instruction

5.1 Switch the display unit

In standby mode, press "+" key to switch between units of um and mil. After switching units, all of the interface will display in the unit except multi-point calibration state.

5.2 Switching display mode

After the standby mode or the measurement, the short press "-" key can be switched between the display and the back display.

5.3 Measurement methods

Place The instrument sensor contacts to the material for tested and pressed, wait 1 to 2 seconds after buzzer short beep sound, the measured data will be displayed on the LCD screen.

If the substrate material is different, the calibration should be carried out first and then measured.

Calibration method reference "standard piece calibration" section.

5.4 Historical Data

In standby mode Press "MENU" button once, you can enter to view the status of the historical data, instrument store up to 20 groups of historical data.

5.4.1 View historical data

After pressing the MENU screen displays "NO 0.", By a short press "+", "-", you can turn on the next turn data, save up to 20 data. "NO. X" indicates the most recent X time measurement data, the X greater  the data older.

5.4.2 Delete the historical data

Delete current data: In View mode, press "+", "-", select the data you want to delete, long press the "+" button.

Delete all: In View mode, long press the "-" button, can delete all the data. After you remove all 20 sets of historical data show non-ferromagnetic 0.0um.

5.4.3 View statistics

Enter the measuring status, continuous short press "MENU" key, can view the historical data in turn of maximum ,minimum value, average value ,then exit of the statistical value status(After boot, if the measurement of data, it is the last time of the measurement, otherwise it is no measurement value of white screen). If you want to directly measure , only need to put the instruments on the surface which you want to measuring ,it will automatically enter measurement status.

Note: the average value, the minimum value of the data is not measured in 0 of the data statistics.

5.5 Switch back-light

In view statistics :Enter the maximum mode (see 4.3.3) (bottom of the screen display MAX), press "+", you can open / close the back-light.

Restore factory settings also called initialization.

In standby mode, continues press "-" key , the instrument will go to restore the factory operation. When the screen shows "000,Fe,NFe,cal" and buzzer ,keep press the key of “-”till for a while and all the character has been displayed on the screen,it means that the restore factory settings operate has been finished. At the same time ,the historical data and the calibration value also has been cleared.

Note 1:In the whole process, we need keep press the key "-" , if you don’t keep press the key of "-" all the time during the whole process , please to redo the whole process.  And this step of the instructions must be in strict carry out, otherwise unknown error maybe occurs.

Note 2:Please ensure the instrument probe is not touched with any object (the probe dangling).

7 Calibration

The device with 2 kinds of calibration mode,the two calibration models are very convenient, for different customers according to their own application to choose :

A:The standard calibration mode is provided with 0, 50, 100, 250, 500um calibration shim, it is more easy for new user, only need to choose the corresponding calibration mode and the right calibration shim ,then to do the calibration,it is very  easy and more convenient.

B:The Multi-point calibration which could according to customer different application of special thickness to do the calibration operate . For example, client has standard thickness of 80um, which different with our standard shims ,then need calibration with multi-calibration mode.

7.1 Standard Calibration

Basic instruction : In the standby mode or measuring mode, long press "MENU" key to enter the film standard calibration status, when the display will show "CAL" logo,(the first screen will show of “0.0 cal ” zero film calibration status), then there have 5 different calibration status ,press "+" or "-" , the five kinds of film calibration status will be display in turn , detail information as below :

0.0 : zero automatic calibration

50 : 50um film automatic calibration

100: 100 um film automatic calibration

250 : 250um film automatic calibration

500: 500um film automatic calibration

Calibration operate : Firstly ,long press “menu” to enter to the film calibration interface, then select the corresponding calibration mode of 0.0/50/100/250/500 ,via short press key “+”/ “-” ,then put the device on the corresponding film, vertically press the device probe on the film ,and the best do 2 or 3 times again, every time of the calibration interval should be keep for several seconds and let the probe a little far from the metal to keep the accuracy. The calibration operation can be repeated until you believe it is meet your desire.
Exit the calibration : when calibration has complete, short press "MENU" to exit the calibration status ,then it will show us to the measuring status.

Note:

It is important that measuring the standard film thickness with corresponding film calibration status . So when you find that you run this instrument calibration status with a mistake and some errors information shows on the display, we recommend to do the restore of factory operate . Such as calibration 50um put the film as 100um, the machine will display E01, buzzer continuous ring alarm, when the sensor been lift and buzzer will stop ringing.

7.2 Multi-point calibration

When you have a standard shim which different with us, firstly measure the shim on the Fe or NFe substrate, then get the in initial value , then lift the instrument , and long press "+" into the multi-point calibration interface, the screen shows "CAL". At this point, the short press "+" or "-" can adjust the measurement value, and the long press "+" or "-" to speed up the adjustment of 10 times. When adjusted to the standard value of the calibration shims, the calibration is finished, then the short press "MENU" key to exit. You can according to your detail desire to repeat this operate to get more accuracy data.

7.3 Clear calibration data

First enter the Statistics status and enter to “Min” status (see 4.3.3) , continues press "-" key , the instrument will go to independent restore the factory operation. When the screen shows "000,fe,nfe,cal" and buzzer ,then keep press the key "-" for a while till all the character displayed on the screen, it means that the restore factory settings operate has been finished..

8 Attention

1. 1. Before the measurement, calibration is very important  to keep the gauge in high accuracy status, zero calibration should be carried out when you firstly use the gauge .
2. 2. If you have the zero substrate of your product, the best do the zero calibration of your own substrate then to measuring the coating thickness .
3. 3. If you calibration with wrong operate , the best way is restore factory with long press”-”.
4. 4. When the screen appears battery flag alarm, suggest to replace the battery, otherwise the impact of measurement error, if the instrument will not work for a long time, it is suggested to remove the battery.
5. 5. If the instrument has some unusual error, take out the battery, and keep for several minutes, then to restore the gauge, it will be recover.
6. 6. If the shim is too thin (less than 0.5mm), too small (less than 25X25mm), not recommended for measurement, otherwise the data which will not be accuracy.
7. 7. When do the calibrate and measuring operate, please keep the probe vertically to the metal surface and during the interval ,the best keep the probe far from the metal surface at least over 10 cm to keep the accuracy of the device.
8. 8. On the edge of the measuring surface or measuring the curvature of the mask, it will affect the accuracy of the measurement.
