Sindeice 20T/24h flake ice machine flake ice evaporator

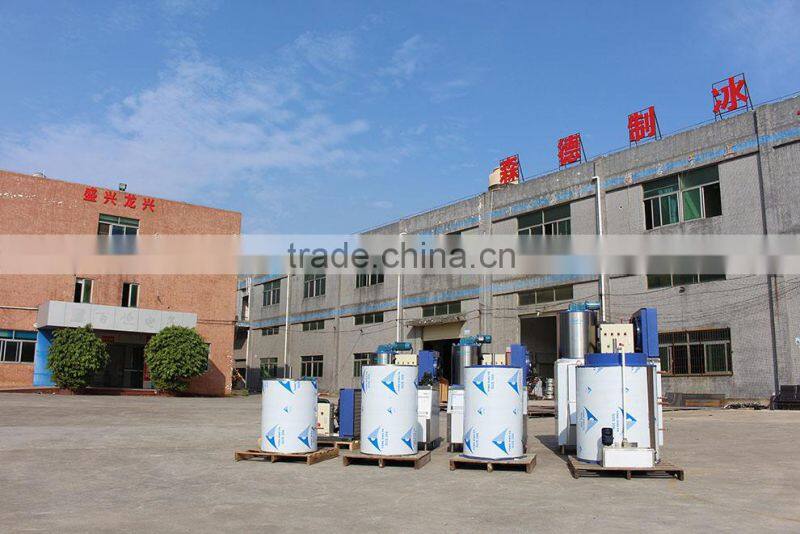

SHENZHEN SINDEICE SYSTEMS CO., LTD (Sindeice for short) is a professional manufacturer of ice machines, who has a set of research, design, production, installation, sale and after-sales service. We got a number of experienced experts who engaged in refrigeration and ice machine for many years. With the use of best technology of ice machine and innovative solutions, Sindeice manufactures Flake ice machine, Tube ice machine, Block ice machine, Ice flaker evaporator, Containerized ice plant. Daily capacities are available from 300 kg to 100,000 kg.
Sindeice is sticking to the notion of “great virtue,social commitment”, and the management policy of “integrity, diligence, innovation and mutual benefit”.Sindeice strives to enter into international market.
Characteristics of Flake Ice

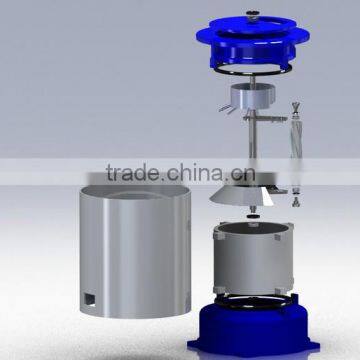

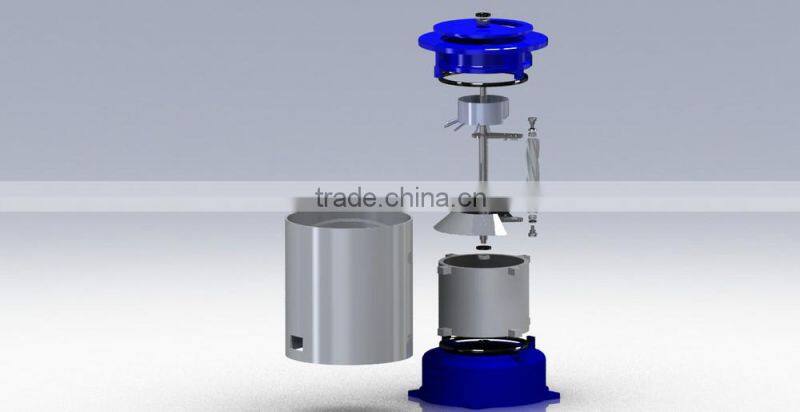

Ice Flaker Evaporator
As the key part of the complete flake ice machine, the ice flaker evaporator plays an important role in making ice. To match the various ice flaker evaporator, you can make different choice about the refrigeration units in different refrigerant (R22, R404a or R717) by yourselves. Before place the order, please let us know which refrigerant you will choose.
Characteristics

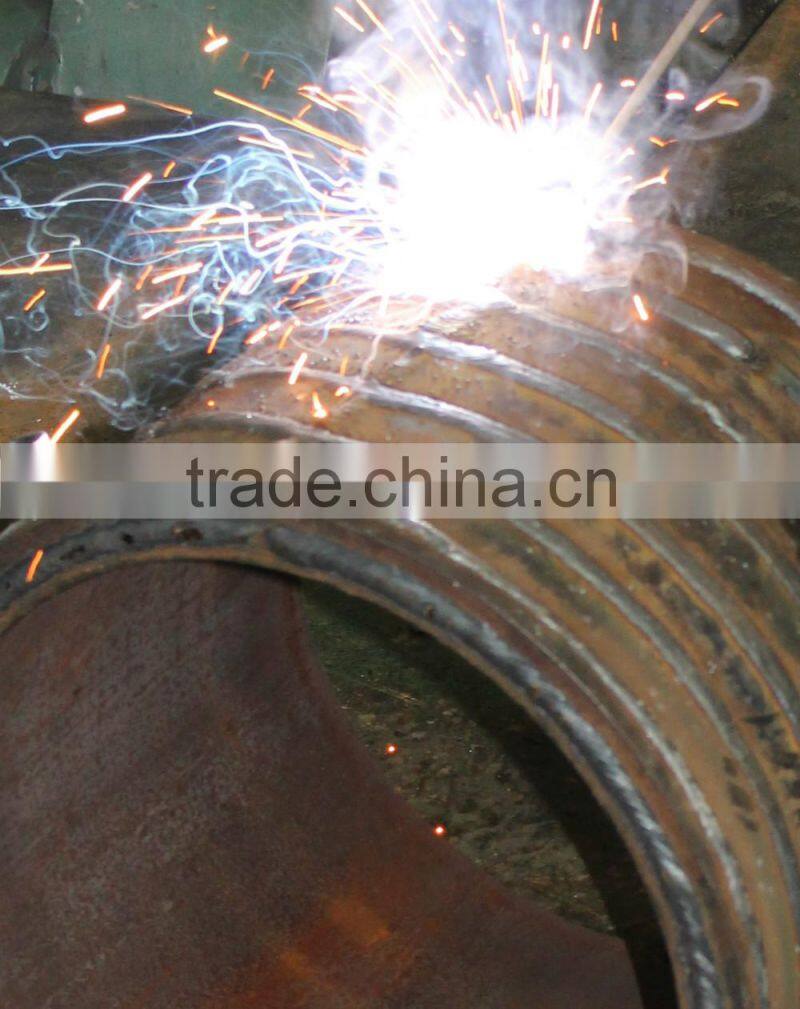

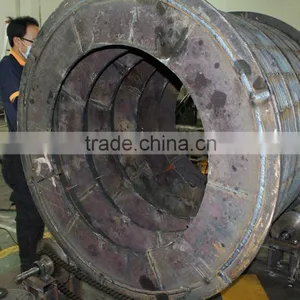

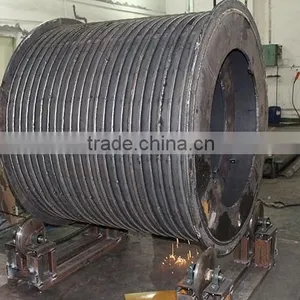

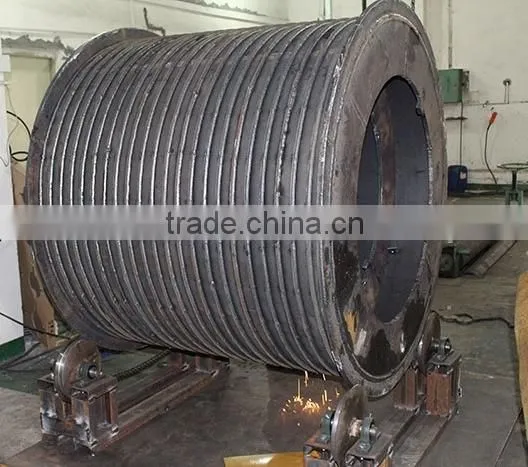

1. The ice flaker evaporator use high quality alloy material. Precision welding and surface treatment makes high heat conduction efficient, high strength, longer lifespan.
2. The internally- scraping ice-making mode has been adopted. Under this mode, ice blades scrape ice on the inner wall of the evaporator while the evaporator itself does not move. It reduces the loss of energy as much as possible, guarantees the normal supply of cooling agent as well lower the probability of cooling agent leakage.
3. The stainless steel ice scraper formed without weld. Even by long time scraping, the scrapper keeps still tough, and the ice dropped is sizable with nearly no powder.
Technical Data
*The technical data based on 25℃ ambient temp.18℃ water inlet temp.
*The evaporating temperature is -20℃.
*The condensing temperature is 40℃.
*Power supply: 3P / 380V / 50HZ 3P/220V/60HZ
*Refrigerant:R404a/R22/R507/R717
*Inner wall material: SUS304&Q345 Hard chromium plating
Model |
SDE-20T |
Daily Output (TPD) |
20 |
Cooling Capacity (KW) |
130 |
Reducer Power (KW) |
0.75 |
Water Pipe |
1/2" |
Weight (KG) |
1970 |
Dimension (mm) |
2160*1650*2100 |
Symptom |
Possible Cause |
Solution |
|
Pressing Start/Stop does not start machine. |
Electric supply is cut |
Check the power supply for a confirmation |
|
Circuit Breaker is not On |
Put the Breaker On |
||
The Start/Stop Control fails |
Change the control |
||
System Failure indicator is on, and machine cannot be started |
Ice Bin Full |
Harvest the ice and then start the machine once again. |
|
Lack of Water in water tank |
Check the water supply and the water pump |
||
Refrigeration System fails |
Low Pressure |
Clean the fins of the condenser and put the RESET button of pressure control. Contact Sindeice agent or headquarter for a solution if failure still insists. |
|
High Pressure | |||
Oil Differential Control fails | |||
Comp Overheat | |||
Current Overload |
Comp Overload |
Pressing the RESET release the trip and start again. If there is abnormal noise, stop the machine immediately and contact Sindeice agent or headquarter for a solution. |
|
Fan or Pump OL | |||
Reducer Overload | |||
Ice blade making Noise and ice is crystal |
Salt water pipe jammed |
Check and clean the pipe |
|
Salt water pipe filled with air |
Get the air out and start again |
||
Metering pump damaged |
Replace the metering pump |
||
Ice machine working while no ice produced |
Refrigerant leakage |
Contact Sindeice for gas refilling and leakage checking |
|
Refrigeration unit fails |
Contact Sindeice for a solution |
||
Ice forms on Freezing surface while does not fall |
Refrigerant leakage |
Contact Sindeice for gas refilling and leakage checking |
|
Refrigeration unit fails |
Contact Sindeice for a solution |
||
Ice Blade bearings fail |
Contact Sindeice for a replacement |
||
Reducer is not revolving |
Check the electric control or check the reducer motor.
Contact Sindeice for a solution
|
||
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C.
Normally, we accept 30% Deposit and 70% balance paid before delivery.
Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to ustomize for you.
Q3: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q4: Do I need to install the ice machine by myself?
A: For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.
For some larger ice machine plant, we need to keep some components seperate for shipping convenience. But no worris about that. An installation brochure will be sent to you,it's very to install the machine.
Q5:What is the warranty for flake ice machine?
A: 18 months after B/L date. Any failure occurred within this period due to our responsibility, we'll supply you the spare parts for free and permanent technical support &consultation all life long for our flake ice machines.
