Specifications
Excellent Quality small wood pellet machine1.wood pellet best
2.best quality machine
3.high effciency

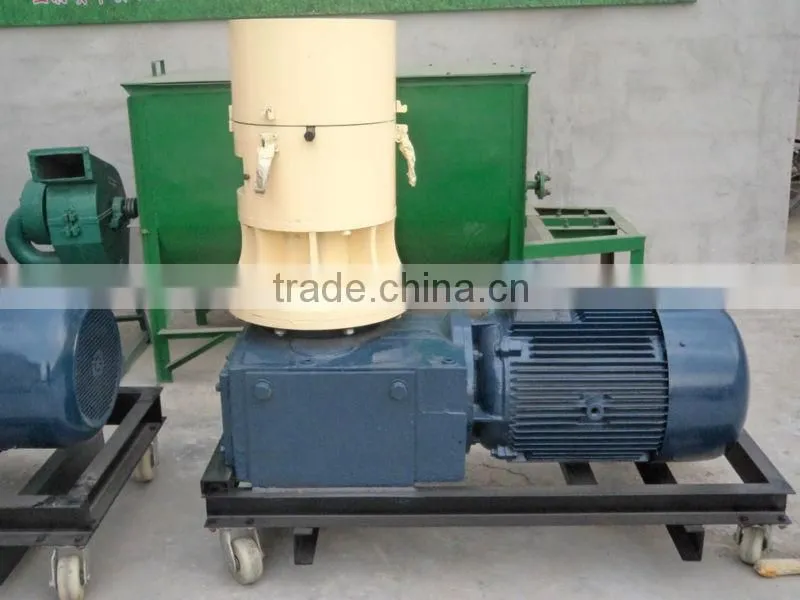

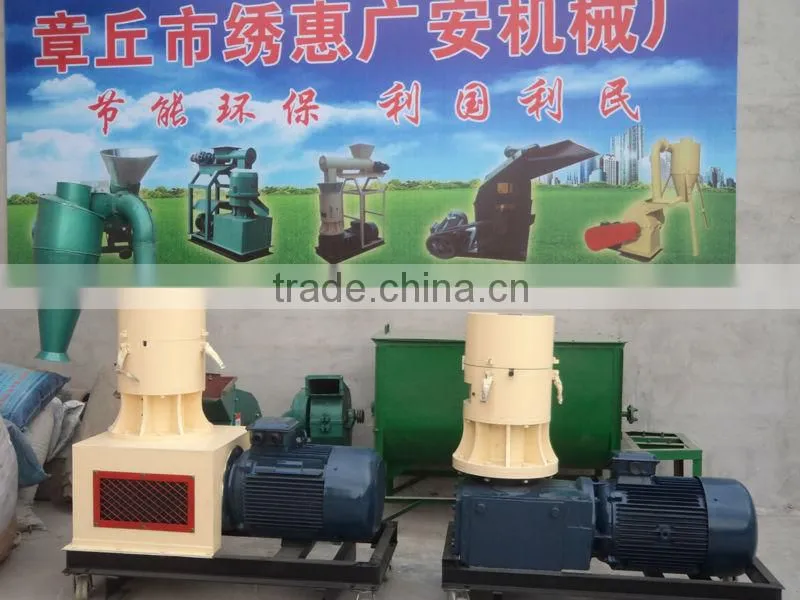

wood pellet machine /wood pellet mill
A.wood pellet machine of working principle:
1.material go into the mode of the granulating chamber vertically using its own weight.
2.the pressure roller will press the raw material inside the mode holes.
3.under the continuous pressure of rollers.
4.material will be made into pellet.
5.wood pellet machine was sent to the material feeding mouth through scraper feeder.
SKG450 type
Motor: 45kw
The voltage and frequency:380V 50HZ
Flat die diameter: 450 mm
Flat die speed: 83r/min
Die Hole Size:diameter 5-15mm
Particle moisture content: 15%-20%
Particle production :500 kg / h (wood)
Body size: length × width × height 70*150*150 (cm)
SKG550 type
Motor: 55kw
The voltage and frequency:380V 50HZ
Flat die diameter: 550 mm
Flat die speed: 80r/min
Die Hole Size:diameter 8-15mm
Particle moisture content: 15%-20%
Particle production :700-1000 kg / h (wood)
Body size: length × width × height 100*170*200 (cm
B.Specification:
model |
Working capacity(kg/h) |
power (k w) |
Diameter of pellet(mm) |
Moisture content(%) |
Machine’s size(cm) |
Net weight (kg/set) |
SKG200 |
100 |
7.5 |
3-12 |
15-20 |
100*50*95 |
120 |
SKG250 |
150 |
15 |
3-12 |
15-20 |
120*55*100 |
150 |
SKG300 |
200 |
22 |
3-12 |
15-20 |
120*120*60 |
200 |
SKG350 |
300 |
30 |
3-12 |
15-20 |
60*130*130 |
290 |
SKG400 |
400 |
37 |
6--12 |
15-20 |
70*140*140 |
350 |
SKG450 |
500 |
45 |
6--12 |
15-20 |
70*150*150 |
400 |
SKG550 |
600-800 |
55 |
6-12 |
15-20 |
100*170*200 |
500 |
