Razor Barbed Wire

Specifications

strong and reinforced with a steel coil which makes it very hard to bend

Razor Barbed Wire

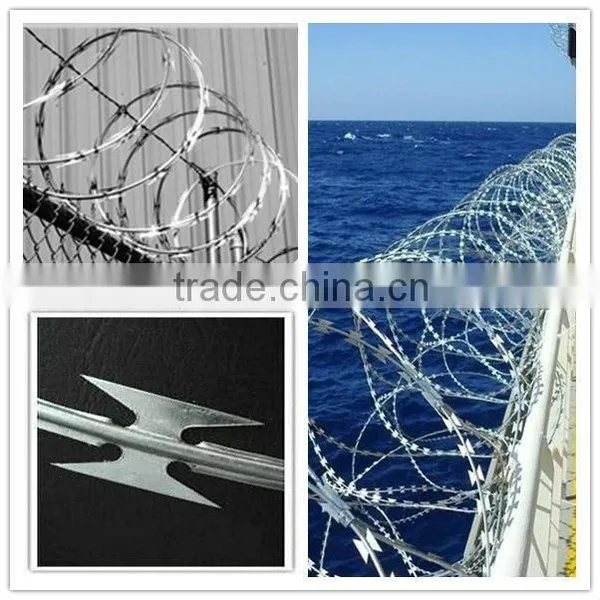

Razor barbed wire are also named concertina razor barbed wire. It is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. It is heavily ribbed for strength and has a double row of razor sharp spikes. Razor spike is available in two heights 4 1/4” and 2”, both are 60” in length. Razor spike can be affixed to all surfaces.
Razor barbed wire can be produced with hot dipped galvanized steel wire and blade or stainless steel wire and blade. Barbed tape can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders. With piecing and cutting razor blades mounted at the top of the wall, the special designs makes climbing and touching extremely difficult.
Material:
Stainless steel wire
Galvanized steel wire
PVC coated iron wire

Razor Barbed Wire Features:
Razor barbed wire has the feature of extremely difficult to cut (high tensile core wire) and hard to climb.
Razor wire is very strong and reinforced with a steel coil which makes it very hard to bend, while the barbs have a piercing and gripping action.
Razor barbed wire enjoys good appearance.

Razor Barbed Wire Application:
Razor barbed wire has been widely used by many countries in military field, prisons, detention houses, government buildings and other national security facilities.
Recently years, razor barbed wire has apparently become the most popular high-class fencing wire for not only military and national security applications, but also for cottage and society fence, and other private buildings.

Roll Size
Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	8M	CBT-65	Single coil
500mm	41	10M	CBT-65	Single coil
700mm	41	10M	CBT-65	Single coil
960mm	53	13M	CBT-65	Single coil
500mm	102	16M	BTO-10.15.22	Cross type
600mm	86	14M	BTO-10.15.22	Cross type
700mm	72	12M	BTO-10.15.22	Cross type
800mm	64	10M	BTO-10.15.22	Cross type
960mm	52	9M	BTO-10.15.22	Cross type
Single Size
Reference Number	Blade Style	Thickness	Wire Dia	Barb	Barb	Barb
				Length	Width	spacing
BTO-10		0.5±0.05	2.5±0.1	10±1	13±1	26±1
BTO-12		0.5±0.05	2.5±0.1	12±1	15±1	26±1
BTO-18		0.5±0.05	2.5±0.1	18±1	15±1	33±1
BTO-22		0.5±0.05	2.5±0.1	22±1	15±1	34±1
BTO-28		0.5±0.05	2.5	28	15	45±1
BTO-30		0.5±0.05	2.5	30	18	45±1
CBT-60		0.6±0.05	2.5±0.1	60±2	32±1	100±2
CBT-65		0.6±0.05 0	2.5±0.1	65±2	21±1	100±2
