Specifications

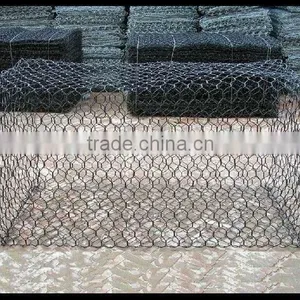

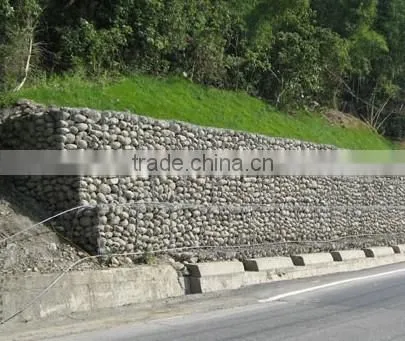

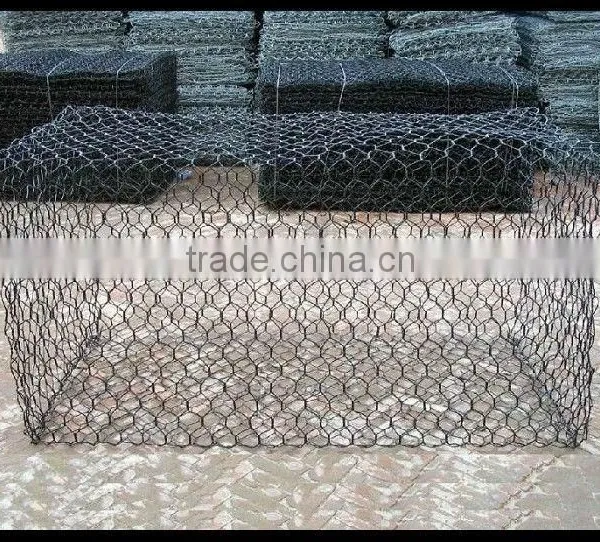

Gabions are boxes made of double twisted hexagonal mesh.They are filled with rocks when used in retaining walls,erosion control,Gabion box wire fencing
Gabion wire mesh also called gabion baskets, gabion cages, hexagonal wire mesh, stone gabion, etc. It is manufactured from double twisted hexagonal woven steel wire mesh or welded wire mesh by wire machine, filled with stones at the project site to form flexible, permeable, monolithic structures.
1. Specification:
gabion basket or gabion cages |
||
Mesh type opening(cm) |
6*8,7*9,7*10,8*10,9*10,9*12,10*12,12*15,13*15,14*16,16*18,20*24 |
|
Mesh wire diameter(mm) |
2mm-4mm |
|
Frame wire diameter(mm) |
mesh wire diameter +0.5mm to1mm |
|
Lacing wire diameter(mm) |
2.2mm |
|
Tensile strength |
38kg/m2 or 380N/m2 |
|
Surface treatment |
electro galvanized , 10g/m2, anticorrosion is poor |
|
hot dipped galvanized, 300g/m2, anticorrosion is strong |
||
Zn-Al alloy wire:Zn-5%Al or Zn-10%Al |
||
PVC coated, normal thickness is 1.0mm |
||
2.Provided Types: in rolls ,or in basket.
3.Usage:
1.Controlling and leading the river and flood
2.Flood discharge and lead flow
3.rock fall defending
4.preventing the water and soil lost
tecting the bridge
6.reinforce fabric
7.seashore recovery project
8.seaport project
9.block wall
10.defending the road.
specification:
model |
aperture (mm) |
wire dia (mm) |
edge silk(mm) |
binding wire (mm) |
Maximum width(m) |
JZ 60 |
60*80 |
20.-2.8 |
3.0-4.0 |
2.0-2.2 |
4 |
JZ 80 |
80*100 |
2.0-3.6 |
3.0-4.0 |
2.0-2.2 |
4 |
JZ 80 |
80*120 |
2.0-3.6 |
3.0-4.0 |
2.0-2.2 |
4 |
JZ 100 |
100*120 |
2.0-3.8 |
3.0-4.0 |
2.0-2.2 |
4 |
JZ 100 |
100*140 |
2.0-3.8 |
3.0-4.0 |
2.0-2.2 |
4 |
JZ 120 |
120*150 |
2.0-3.8 |
3.0-4.0 |
2.0-2.2 |
4 |
JZ 160 |
160*200 |
2.0-4.0 |
3.0-4.0 |
2.0-2.2 |
4 |
JZ 200 |
200*220 |
2.0-4.0 |
3.0-4.0 |
2.0-2.2 |
4 |
length (m) |
width (m) |
height (m) |
unit |
voluem (m3) |
the tolerance |
2.0 |
1.0 |
0.15~0.3 |
1 |
0.3~0.6 |
length:+/-3% height:+/-5% |
3.0 |
1.0 |
0.15~0.3 |
2 |
0.45~0. |
|
4.0 |
1.0 |
0.15~0.3 |
3 |
0.6~1.2 |
|
2.0 |
1.0 |
0.5 |
1 |
1.0 |
|
3.0 |
1.0 |
0.5 |
2 |
1.5 |
|
4.0 |
1.0 |
0.5 |
3 |
2.0 |
|
1.0 |
1.0 |
1.0 |
0 |
1.0 |
|
1.5 |
1.0 |
1.0 |
0 |
1.5 |
|
2.0 |
1.0 |
1.0 |
1 |
2.0 |
|
3.0 |
1.0 |
1.0 |
2 |
3.0 |
|
4.0 |
1.0 |
1.0 |
3 |
4.0 |
