Help CenterAnping Xinxiang Galvanized 1x1x1m Gabion Box
Related Products
Specifications
1.Iron wire tensile strength:38kg/mm plus2.Box tensile strength: 495N plus
3.Compressive strength: 300-400N
4.longlife
Anping Xinxiang Galvanized 1*1*1m Gabion Box
Raw material of the gabion box is high quality low carbon iron wire, whose tensile strength is not less than 38kg/m², diameter 2.0mm-4.0mm. Galvanized quantity decided by customer. Maximum quantity is 300g/m².
1. Function of the hot-dipped galvanized gabion box
1) Control and guide rivers or floods.
2) Control the water flow and keep the water from running away
3) Protect river bank and riverbed while building a channel
2. Advantages of the gabion box:
1) When a 1m width gabion box mesh is stretched. Single wire’s stress is 3500-4000kg. Flexible structure adapts to side slope’s change and will not be destroyed. It’s more stable than rigid structure. Even when one single wire breakages, whole body will not be destroyed.
2) Max. flow velocity it can bear is 6m/s. Strong anti-scouring ability.
3) Compressive strength: 300-400N/m², tensile strength: 495N/m² plus
4) Good water permeability. Suspended Solids in the water and sludge will precipitate In the swallet. Thus plant can grow to maintain and recover ecological balance.
3. Service life of the hot-dipped galvanized gabion box:
The gabion box with high zinc galvanized can be used for 40-50 years.
4. Other than 1*1*1m, other common specifications:
Length(m) |
Width(m) |
Height(m) |
Diaphragm(unit) |
Volume(m³) |
Tolerance |
2.00 |
1 |
0.30 |
1 |
0.60 |
Length/width/height 5% more or less |
3.00 |
1 |
0.30 |
2 |
0.90 |
|
4.00 |
1 |
0.30 |
3 |
1.20 |
|
2.00 |
1 |
0.50 |
1 |
1.00 |
|
3.00 |
1 |
0.50 |
2 |
1.50 |
|
4.00 |
1 |
0.50 |
3 |
2.00 |
|
1.00 |
1 |
1.00 |
0 |
1.00 |
|
1.50 |
1 |
1.00 |
0 |
1.50 |
|
2.00 |
1 |
1.00 |
1 |
2.00 |
|
3.00 |
1 |
1.00 |
2 |
3.00 |
|
4.00 |
1 |
1.00 |
3 |
4.00 |

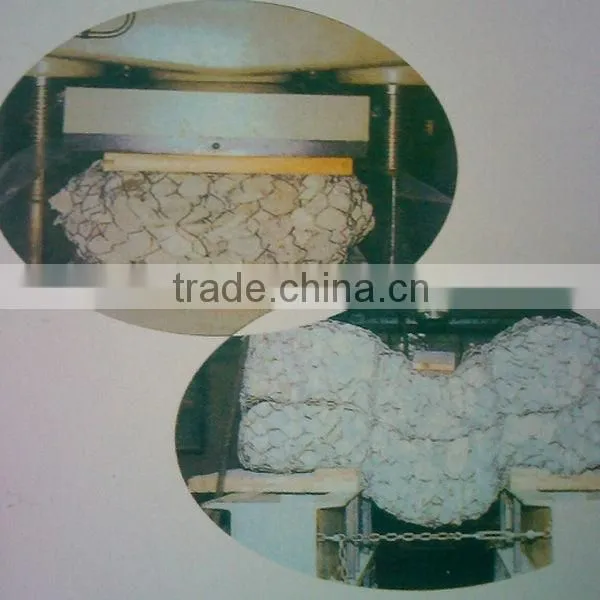

Gabion Box with good compressive-resist ability:
Compressive strength is 300-400T/M², tensile strength: 495N/m².

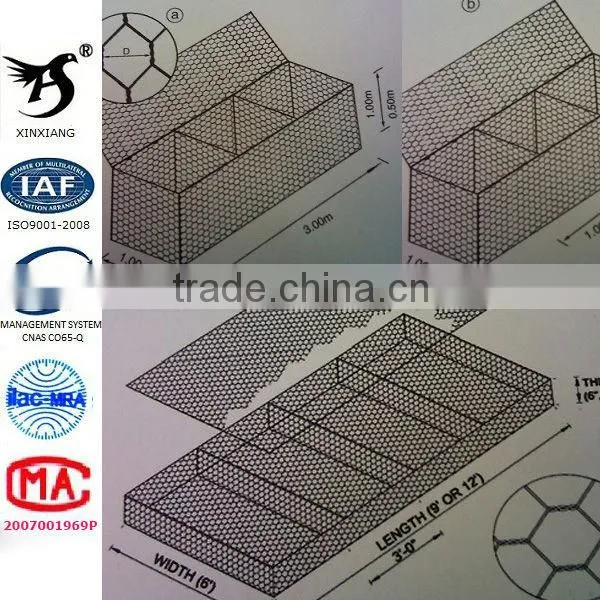

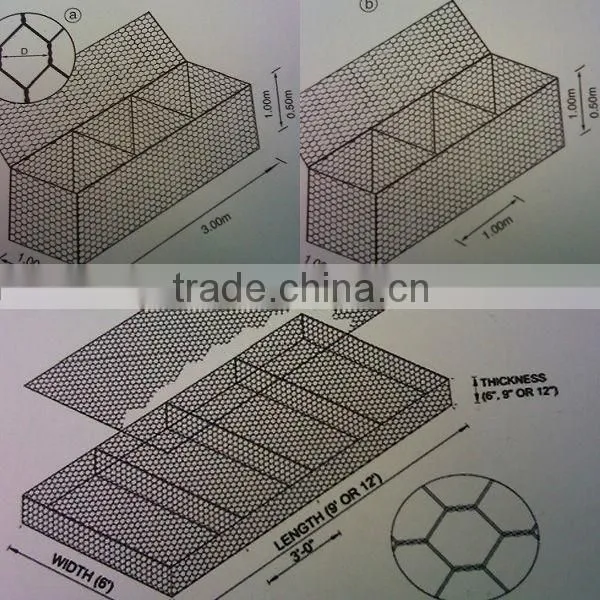

Gabion box diagram:

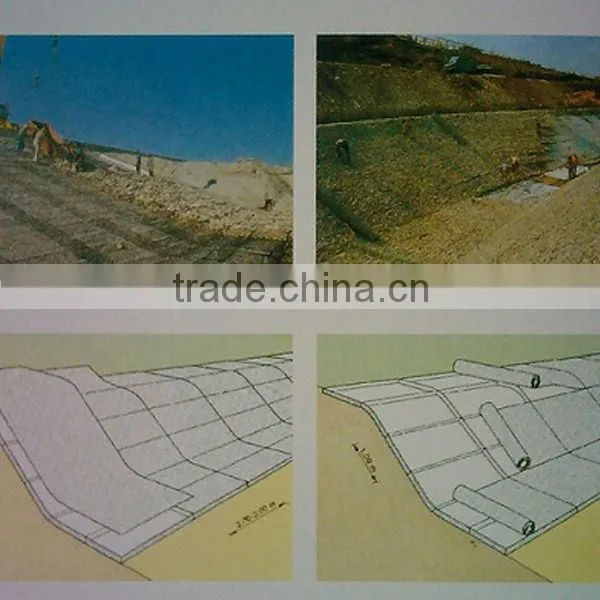

5. Application of the galvanized gabion box:
We promise to offer competitive price and best service. Welcome your inquiry.
