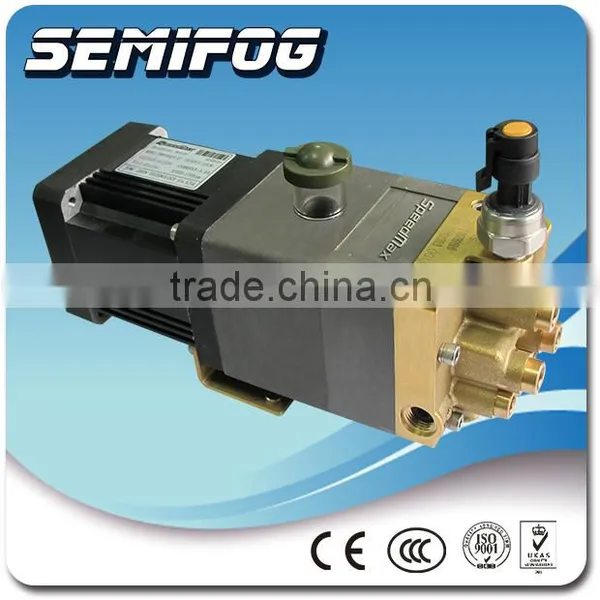

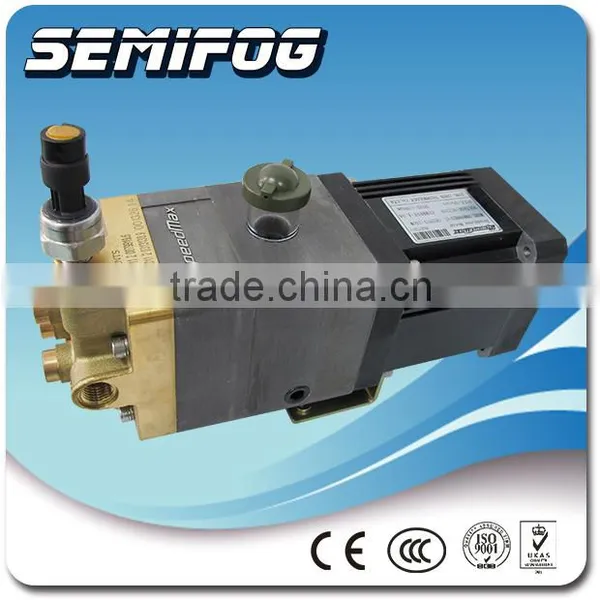

1L/min water Pump with 24v~220v adjustable pressure pump
USD $350 - $682
/ Piece
1 Piece(Min.Order)
- 1000 Piece / Pieces per Month
- Zhuhai
You May Like
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | SEMIFOG | Model Number: | SPXB010L/DC036V |
| Theory: | Axial Flow Pump | Structure: | Piston Pump | Usage: | Water |
| Power: | Other, Electric, 250 W | Standard or Nonstandard: | Standard | Fuel: | Other, electric |
| Pressure: | High Pressure | Application: | Cryogenic |
Product Description
1L/min water Pump with 24v~220v adjustable pressure pump
Feature
1) Use brushless direct current motor,low noise,easy maintenance.
2) Patented transmission design,use triplex ceramic plunger,resistance to abrasion and long serving life.
3) With constant voltage sensor,intelligent and constant pressure.
4) Automatically adjust pressure by variable frequency,energy saving,memory saving function,fault alarm function.
Parameter
| Model | Rated Pressure (Bar) | Max Pressure (Bar) | Flowrate (L/min) | Power (W) | Voltage (V) | Current (A) | Speed (RPM) | Drive Model |
| SPXB010L/DC024V | 60 | 70 | 0.4-1.0 | 250 | 24 | 13.00 | 500-1200 | B-205D1 |
| SPXB010L/DC036V | 60 | 70 | 0.4-1.0 | 250 | 36 | 8.75 | 500-1200 | B-205D1 |
| SPXB010L/AC110V | 60 | 70 | 0.4-1.0 | 250 | 110 | 2.80 | 500-1200 | B-219D1 |
| SPXB010L/AC220V | 60 | 70 | 0.4-1.0 | 250 | 220 | 1.40 | 500-1200 | B-219D1 |
| Notes | Water pressure should more than 1bar (1bar=14.5psi) | |||||||

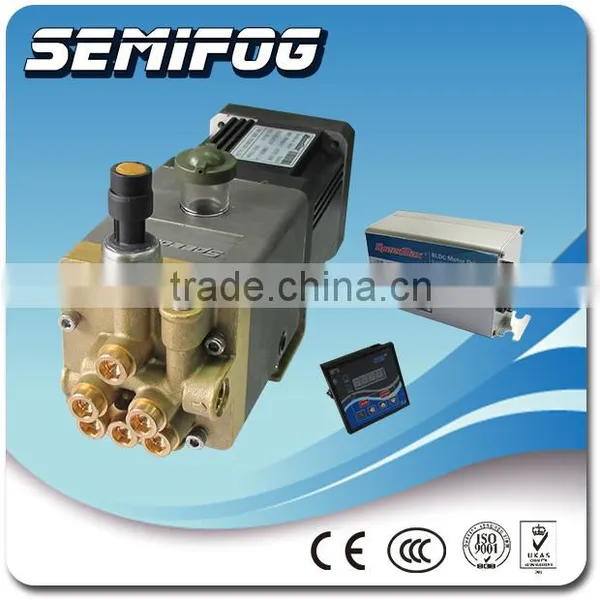

Accessories
NO.
| Picture
| Model
| Name
| Notes
|
| 1 | | B-205D1 | BLDC Drive | CPXB010L/DC024V CPXB010L/DC036V |
| Speed Controller | Speed Controller | |||
| 2 | | B-219D1 | BLDC Drive | CPXB010L/AC110V CPXB010L/AC220V |
| Speed Controller | Speed Controller |
Drawing
Product

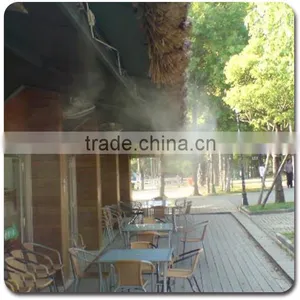

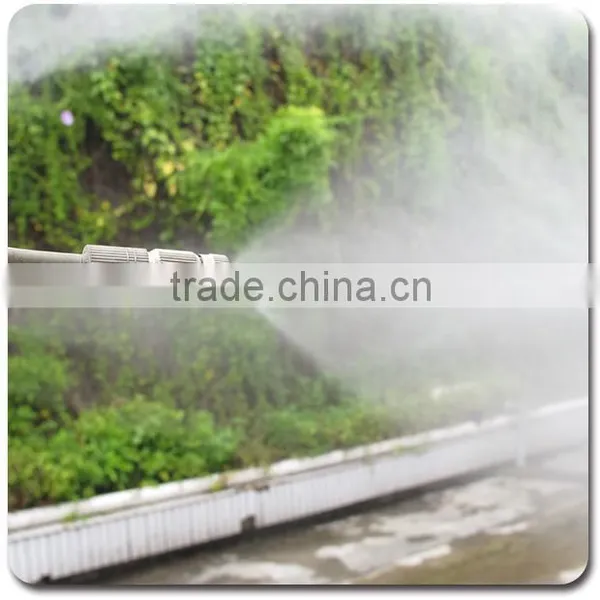

Application
Certification
Shipping
Exhibition
About us
Contact Us
- Zhuhai Jungchen Technology Co., Ltd.
- Contact namepiky zhu
- Phone86-756-3384070-3102
- AddressJinfa Industrial District Jinding Town Zhuhai,Guangdong
