[Speed & Temperature Controlled] Extractor Fan
- 5000 Piece / Pieces per Month
- FOB NINGBO
- T/T Credit Card
Product Details
Electric Current Type: | AC | Blade Material: | Plastic | Mounting: | Duct Fan |
Place of Origin: | Zhejiang, China | Brand Name: | HCSINO (OEM is available) | Model Number: | HCEU-TC |
Power: | 68-380W | Voltage: | 110V/60HZ, 230V/50HZ, 230V/60HZ | Air Volume: | 165~1900m3/h |
Speed: | 2650rpm | Certification: | CE, Other, CE,FCC,ERP,SAA |
Product Description
Specifications

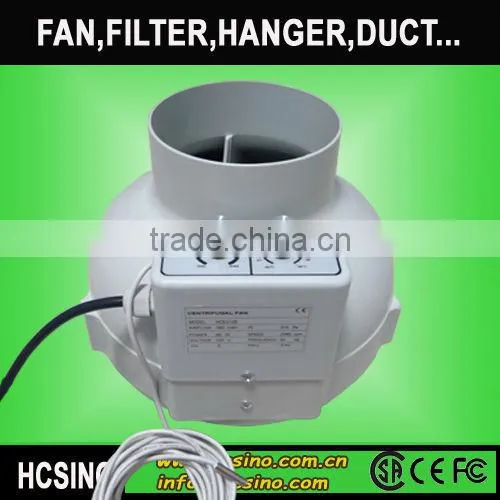

Speed & Temperature Controlled Extractor FanHigh quality moulded impeller
Thermally protected AC motor
CE,FCC,SAA,ERP
Hydroponics Speed & Temperature Controlled Extractor Fan
*Configurable idle speed
*Configurable temperature setting
*Remote probe with 4m cable
*Integrated thermal cut-out with automatic reset
*High-quality moulded impeller
*Easy installation and dismantling
*Duct mountable in many positions, bracket included
There are two control dials to set the required temperature and airflow. If the air temperature rises above the thermostat threshold (maximum set temperature), the motor will automatically switch to the maximum speed.
As the air temperature drops below the thermostat threshold the motor will switch to the pre-set speed to maintain the desired temperature.
Temperature controlled ventilation provides the ideal solution for horticultural spaces that experience the temperatures of HID lighting, giving plants a more stable growing environment and higher productivity.
Colour available: Black, White ,etc
It is used to transmit and strengthen the air flow inside a network of ventilation ducts.
The Plastic Inline Duct Fan is equipped with ball bearing and visible propeller with a protective grate. The installations can be mounted horizontally and vertically.
The propeller blades are directed backwards, ensuring higher pressure and work effciency.
The casing is made from Plastic (ABS) and the fan sat included fixings for a secure installation.
Specific technical parameters
Model | Voltage | Frequency | Power | Rotate | Air Flow | Pressure |
(HCEU-TC) | (V ) | (HZ) | (W) | (R/Min) | (M3/H) | (Pa) |
Φ100mm | 120 / 230 | 60 / 50 | 69 | 2590 | 0~350 | 360 |
Φ125mm | 120 / 230 | 60 / 50 | 71 | 2535 | 0~440 | 390 |
Φ150mm | 120 / 230 | 60 / 50 | 100 | 2350 | 0~610 | 430 |
Φ160mm | 120 / 230 | 60 / 50 | 130 | 2580 | 0~700 | 475 |
Φ200mm | 120 / 230 | 60 / 50 | 190 | 2150 | 0~1050 | 620 |
Φ250mm | 120 / 230 | 60 / 50 | 195 | 2250 | 0~1200 | 635 |
Φ305mm | 120 / 230 | 60 / 50 | 245 | 2450 | 0~1850 | 690 |
Φ315mm | 120 / 230 | 60 / 50 | 250 | 2520 | 0~1900 | 720 |
